X-On Electronics has gained recognition as a prominent supplier of 60018045 Multi-Conductor Cables across the USA, India, Europe, Australia, and various other global locations. 60018045 Multi-Conductor Cables are a product manufactured by Draka. We provide cost-effective solutions for Multi-Conductor Cables, ensuring timely deliveries around the world.

60018045 Draka

Name: 60018045
Brand: Draka
SKU: 60018045_Draka
Availability: OutOfStock
Rating: 5 (11 reviews)

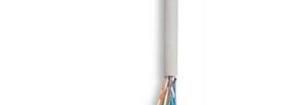

Images are for reference only
See Product Specifications

Part No.	60018045
Manufacturer:	Draka
Category:	Multi-Conductor Cables
Description:	CABLE, PATCH, CAT 5E FTP, GREY, 100M
Datasheet:	60018045 Datasheet (PDF)
	Large This product is classified as Large/Heavy, additional shipping charges may apply. A customer service representative may contact you after ordering to confirm exact shipping charges

Price (USD)

1: USD 92.3646 ea
Line Total: USD 92.36

Availability - 0

MOQ: 1 Multiples: 1
Pack Size: 1

60018045 More Buying Options & Price Grid(s)

Availability	Price	Buy Price	Quantity
0 Ship by Thu. 10 Apr to Wed. 16 Apr MOQ : 1 Multiples : 1	1 : USD 92.3646 5 : USD 65.7544

Specifications

Manufacturer Draka Draka
Product Category Multi-Conductor Cables Multi-Conductor Cables
Jacket Colour Grey Grey
Jacket Material PVC PVC
Conductor Material Copper Copper
Brand Draka Draka
Cable Shielding Screened Screened
Lan Category Cat5e Cat5e
Wire Gauge 26AWG 26AWG
Conductor Area Csa 0.23mm² 0.23mm²
Reel Length Imperial 328 ft 328 ft
Reel Length Metric 100 m 100 m
No. Of Pairs 4 Pair 4 Pair
No. Of Max Strands X Strand Size 7 x 0.16 mm 7 x 0.16 mm
External Diameter 5.4 mm 5.4 mm
Svhc No SVHC (27 - Jun - 2018) No SVHC (27 - Jun - 2018)
Bend Flexing Radius Min 8 x Dia 8 x Dia
Cable Type Shielded Shielded
Capacitance Per Metre 50 pF /m 50 pF /m
Conductor Make-Up 7 / 0.16mm 7 / 0.16mm
Core - Core Capacitance 50 pF /m 50 pF /m
Impedance 100 Ohms 100 Ohms
Installation Tension Max 100N 100N
Installed Bend Radius Min 4 x Dia 4 x Dia
Operating Temperature Max 50 C 50 C
Operating Temperature Min - 20 C - 20 C
Outer Diameter 5.4 mm 5.4 mm
Primary Screen Material Al/PE Al/PE
Screen Type Primary Aluminised Polyester Tape Aluminised Polyester Tape
Secondary Insulation Colour Grey Grey
Secondary Insulation Material PVC PVC
Weight 11.75 kg 11.75 kg
Wire Size 26 AWG 26 AWG

We are delighted to provide the 60018045 from our Multi-Conductor Cables category, at competitive rates not only in the United States, Australia, and India, but also across Europe and beyond. A long established and extensive electronic component distribution network has enhanced our global reach and dependability, ensuring cost savings through prompt deliveries worldwide. Client satisfaction is at the heart of our business, where every component counts and every customer matters. Our technical service team is ready to assist you. From product selection to after-sales support, we strive to deliver a seamless and satisfying experience. Are you ready to experience the best in electronic component distribution? Contact X-ON Electronics today and discover why X-On are a preferred choice for the 60018045 and other electronic components in the Multi-Conductor Cables category and beyond.

More Products By Manufacturer "Draka"

Image	Part-Description
Hot	900254CA0000FE0100 CABLE, PATCH, CAT 5E UTP, BLACK, 100M Stock : 0 Large This product is classified as Large/Heavy, additional shipping charges may apply. A customer service representative may contact you after ordering to confirm exact shipping charges.
Hot	60017958 CABLE, PATCH, CAT 5E UTP, GREY, 100M Stock : 0 Large This product is classified as Large/Heavy, additional shipping charges may apply. A customer service representative may contact you after ordering to confirm exact shipping charges.

More Products By Category "Multi-Conductor Cables"

Image	Part-Description
Hot	83008-WHT-1000 #20 STR TFE WHT Stock : 1 Large This product is classified as Large/Heavy, additional shipping charges may apply. A customer service representative may contact you after ordering to confirm exact shipping charges.
Hot	1701A-BLU-U1000 CAT5E+ 4PRB U/UTP CMP BOX Stock : 1 Large This product is classified as Large/Heavy, additional shipping charges may apply. A customer service representative may contact you after ordering to confirm exact shipping charges.
Hot	1701A-D15-U1000 Multi-Conductor Cables 24AWG 4PR SOLID 1000ft BOX BLUE Stock : 1 Large This product is classified as Large/Heavy, additional shipping charges may apply. A customer service representative may contact you after ordering to confirm exact shipping charges.
Hot	32820-WHT-5000 #20 STR PVC WHT Stock : 1 Large This product is classified as Large/Heavy, additional shipping charges may apply. A customer service representative may contact you after ordering to confirm exact shipping charges.
Hot	11700A-LT-BLU-1000 Enhanced Cat 5e DataTuff Twisted Pair Cables, 4-Pair Heavy-Duty Sunlight & Oil-Resistant Jackets, Unjacketed, MSHA Approved Stock : 1 Large This product is classified as Large/Heavy, additional shipping charges may apply. A customer service representative may contact you after ordering to confirm exact shipping charges.
Hot	11700A 0061000 Multi-Conductor Cables 4 PR #24 PP FR PVC PVC Stock : 1 Large This product is classified as Large/Heavy, additional shipping charges may apply. A customer service representative may contact you after ordering to confirm exact shipping charges.
Hot	44A1121-24-2/9-9 Multi-Conductor Cables 44A1121-24-2/9-9 PRICE PER FOOT Stock : 30 Large This product is classified as Large/Heavy, additional shipping charges may apply. A customer service representative may contact you after ordering to confirm exact shipping charges.
Hot	44A1131-24-0/2/9-9-US High Performance Cable 3Conductors 24AWG 3.15mm 600VAC White Stock : 0 Large This product is classified as Large/Heavy, additional shipping charges may apply. A customer service representative may contact you after ordering to confirm exact shipping charges.
Hot	382121-006 CABLE, RADIATION-CROSSLINKED, POLYALKENE-INSULATED, THREE CONDUCTOR, SHIELDED, JACKETED, LIGHTWEIGHT, GENERAL PURPOSE Stock : 0 Large This product is classified as Large/Heavy, additional shipping charges may apply. A customer service representative may contact you after ordering to confirm exact shipping charges.
Hot	6-219538-2 Unshielded Twisted Pair Cable 8Conductors 24AWG 304.8m Bare Copper Box Stock : 1 Large This product is classified as Large/Heavy, additional shipping charges may apply. A customer service representative may contact you after ordering to confirm exact shipping charges.

Additional Infomation About Product

Technical Specification Draka UK Category 5e FTP Patch (AWG 26) Cabling Application Applicable Standards nd Structured Cable for Patch & Floor Outlet Installation ISO/IEC 11801 2 Edition Compatible with all Known Connection systems EN 50173 EN 50288-2-2 2000 according to EN50173 ANSI/TIA/EIA-568-B.2.1-2002 Approved by BASEC 067/001/010 Fire Propagation Test : UL 1581 VW1 IEC 60332.1 EN50265-2-1 Cable construction Conductor Bare Cu Wire Outside Diameter of Conductor (7x0.16) 0.48 mm Insulator Material PE Outside Diameter of Insulation 0.94 mm Number of Twisted Pairs 4 Outside Diameter of Sheath 5.40 mm Screen Material (Laminated Foil Tape) Al/PE Weight PVC (OHLS) 34.8(36.5) kg/km Sheath Material PVC or OHLS Sheath Colour (OEM Specified) Various Sheath Printing (up to 24 characters) Batch No. & Metre marking Cable Properties Electrical Characteristics 20 C Min. Installation Bend Radius 8 x Dia Characteristic imped. (1-10&20-100Mhz) 10015 Min. Installed Bending Radius 4 x Dia Characteristic impedance (10-20Mhz) 10012 Max. Installation Tension 100N DC Conductor Loop Resistance 30 /100m Max. Installed Tension Zero Max. Resistance unbalance 2% Installation Temp. Range Installed 0 to 50C Nominal Velocity of Propagation 66% Operating Temp. Range -20 to 50C Nominal Capacitance 50 pF/m Max. Capacitance unbalance 1600 pF/km Insulation Resistance (500V) 2000 M.km Packaging Reel Sizes P4 P5 Length per Reel 500m 1000m Reel Dimensions 400mm 500mm Weight (approx.) 19kg 38kg Impedance Attenuation & NEXT 120 0 -10 -20 110 NEXT LIMIT -30 TYPICAL ATT. -40 ATT. LIMIT 100 -50 TYPICAL NEXT -60 -70 90 -80 -90 80 -100 0 25 50 75 100 125 0 25 50 75 100 125 150 Frequency (MHz) Frequency (MHz) Draka UK Ltd. Cardinal Cables, Crowther Road, Washington, Tyne & Wear, England. +44(0)191 417 3525 www.drakauk.com FAX +44 (0)191 416 8671 OHMS dB/100MX-ON Electronics Largest Supplier of Electrical and Electronic Components Click to view similar products for Draka manufacturer: Other Similar products are found below : 60018045 60017958 900131VA1818FE0305 XDR10-001 900254CA0000FE0100 M22759/90-24-9 M22759/92-16-6 M22759/91-22-5 EN2267-009C012P EN2267-010A001S EN2267-010A012S
