X-On Electronics has gained recognition as a prominent supplier of 910131 Multi-Conductor Cables across the USA, India, Europe, Australia, and various other global locations. 910131 Multi-Conductor Cables are a product manufactured by Draka. We provide cost-effective solutions for Multi-Conductor Cables, ensuring timely deliveries around the world.

910131 Draka

Name: 910131
Brand: Draka
SKU: 910131_Draka
Availability: OutOfStock
Rating: 5 (11 reviews)

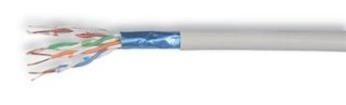

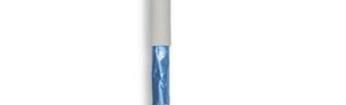

Images are for reference only
See Product Specifications

Part No.	910131
Manufacturer:	Draka
Category:	Multi-Conductor Cables
Description:	CABLE, CAT 5E UTP, LSOH, GREY, PER M
Datasheet:	910131 Datasheet (PDF)
	Large This product is classified as Large/Heavy, additional shipping charges may apply. A customer service representative may contact you after ordering to confirm exact shipping charges

Price (USD)

1: USD 1.4353 ea
Line Total: USD 1.44

Availability - 0

MOQ: 1 Multiples: 1
Pack Size: 1

910131 More Buying Options & Price Grid(s)

Availability	Price	Buy Price	Quantity
0 Ship by Mon. 30 Dec to Fri. 03 Jan MOQ : 1 Multiples : 1	1 : USD 1.4353

Specifications

Manufacturer Draka Draka
Product Category Multi-Conductor Cables Multi-Conductor Cables
Jacket Colour grey grey
Jacket Material lszh lszh
Conductor Material copper copper
Voltage Rating - -
No Of Pairs 4 4
Wire Gauge 24awg 24awg
Conductor Area Csa 0.26mm² 0.26mm²
No Of Max Strands X Strand Size 1 x 0.51 mm 1 x 0.51 mm
Reel Length Imperial - -
Reel Length Metric - -
External Diameter 6 mm 6 mm
Svhc no svhc (15 - jun - 2015) no svhc (15 - jun - 2015)
Attenuation 100Mhz 25db 25db
Attenuation 20Mhz 28db 28db
Bend Flexing Radius Min 8 x dia 8 x dia
Cable Type shielded shielded
Capacitance 50 pF /m 50 pF /m
Conductor Make-Up 1 / 0.51mm 1 / 0.51mm
Core - Core Capacitance 50 pF /m 50 pF /m
Drain Wire Type 0.4mm tincu 0.4mm tincu
Installed Bend Radius Min 4 x dia 4 x dia
Lan Category Cat5e Cat5e
No Of Cores 8 8
Operating Temperature Max 60 C 60 C
Operating Temperature Min - 20 C - 20 C
Outer Diameter 6 mm 6 mm
Resistance Per Metre 0.19 Ohms 0.19 Ohms
Screen Type Primary aluminised polyester foil aluminised polyester foil
Secondary Insulation Colour grey grey
Secondary Insulation Material lsoh lsoh
Standard ul ul

We are delighted to provide the 910131 from our Multi-Conductor Cables category, at competitive rates not only in the United States, Australia, and India, but also across Europe and beyond. A long established and extensive electronic component distribution network has enhanced our global reach and dependability, ensuring cost savings through prompt deliveries worldwide. Client satisfaction is at the heart of our business, where every component counts and every customer matters. Our technical service team is ready to assist you. From product selection to after-sales support, we strive to deliver a seamless and satisfying experience. Are you ready to experience the best in electronic component distribution? Contact X-ON Electronics today and discover why X-On are a preferred choice for the 910131 and other electronic components in the Multi-Conductor Cables category and beyond.

More Products By Manufacturer "Draka"

Image	Part-Description
Hot	900254CA0000FE0100 CABLE, PATCH, CAT 5E UTP, BLACK, 100M Stock : 0 Large This product is classified as Large/Heavy, additional shipping charges may apply. A customer service representative may contact you after ordering to confirm exact shipping charges.
Hot	60018045 CABLE, PATCH, CAT 5E FTP, GREY, 100M Stock : 0 Large This product is classified as Large/Heavy, additional shipping charges may apply. A customer service representative may contact you after ordering to confirm exact shipping charges.
Hot	60017958 CABLE, PATCH, CAT 5E UTP, GREY, 100M Stock : 0 Large This product is classified as Large/Heavy, additional shipping charges may apply. A customer service representative may contact you after ordering to confirm exact shipping charges.

More Products By Category "Multi-Conductor Cables"

Image	Part-Description
Hot	83008-WHT-1000 #20 STR TFE WHT Stock : 1 Large This product is classified as Large/Heavy, additional shipping charges may apply. A customer service representative may contact you after ordering to confirm exact shipping charges.
Hot	1701A-BLU-U1000 CAT5E+ 4PRB U/UTP CMP BOX Stock : 1 Large This product is classified as Large/Heavy, additional shipping charges may apply. A customer service representative may contact you after ordering to confirm exact shipping charges.
Hot	1701A-D15-U1000 Multi-Conductor Cables 24AWG 4PR SOLID 1000ft BOX BLUE Stock : 1 Large This product is classified as Large/Heavy, additional shipping charges may apply. A customer service representative may contact you after ordering to confirm exact shipping charges.
Hot	32820-WHT-5000 #20 STR PVC WHT Stock : 1 Large This product is classified as Large/Heavy, additional shipping charges may apply. A customer service representative may contact you after ordering to confirm exact shipping charges.
Hot	11700A-LT-BLU-1000 Enhanced Cat 5e DataTuff Twisted Pair Cables, 4-Pair Heavy-Duty Sunlight & Oil-Resistant Jackets, Unjacketed, MSHA Approved Stock : 1 Large This product is classified as Large/Heavy, additional shipping charges may apply. A customer service representative may contact you after ordering to confirm exact shipping charges.
Hot	11700A 0061000 Multi-Conductor Cables 4 PR #24 PP FR PVC PVC Stock : 1 Large This product is classified as Large/Heavy, additional shipping charges may apply. A customer service representative may contact you after ordering to confirm exact shipping charges.
Hot	44A1121-24-2/9-9 Multi-Conductor Cables 44A1121-24-2/9-9 PRICE PER FOOT Stock : 0 Large This product is classified as Large/Heavy, additional shipping charges may apply. A customer service representative may contact you after ordering to confirm exact shipping charges.
Hot	44A1131-24-0/2/9-9-US High Performance Cable 3Conductors 24AWG 3.15mm 600VAC White Stock : 0 Large This product is classified as Large/Heavy, additional shipping charges may apply. A customer service representative may contact you after ordering to confirm exact shipping charges.
Hot	382121-006 CABLE, RADIATION-CROSSLINKED, POLYALKENE-INSULATED, THREE CONDUCTOR, SHIELDED, JACKETED, LIGHTWEIGHT, GENERAL PURPOSE Stock : 0 Large This product is classified as Large/Heavy, additional shipping charges may apply. A customer service representative may contact you after ordering to confirm exact shipping charges.
Hot	6-219538-2 Unshielded Twisted Pair Cable 8Conductors 24AWG 304.8m Bare Copper Box Stock : 1 Large This product is classified as Large/Heavy, additional shipping charges may apply. A customer service representative may contact you after ordering to confirm exact shipping charges.

Additional Infomation About Product

Cat5eFUTP .doc 26/09/08 Page 1 of 3 Category 5e F/UTP J-2Y(St)Y 4x2x0.51 (AWG 24) 100 Data Cable IEC 61156-5 CAT-5e 100 Data Cable EN50288-3-1: 100MHz Application Primary (Campus), Secondary (Riser), Tertiary (Horizontal) IEEE 802.3: 10Base-T 100Base-T 1000Base-T IEEE 802.5 16 MB ISDN FDDI ATM Standards nd ISO/IEC 11801 2 ed IEC 61156-5 EN 50173 EN 50288-3-1 Fire rating IEC60332-1-2 Construction Conductor bare copper wire 0.51 mm (AWG24) Insulation Solid Polyethylene, 1.03 mm nom Twisting 2 cores to the pair Cable lay up 1x4 pairs to the core Pair screen N/A Overall screen Al-laminated plastic foil, Sheath PVC/LSHF: OD 6.00mm Draka Comteq neil.mabbott draka.com Cat5eFUTP .doc 26/09/08 Page 2 of 3 Category 5e F/UTP Mechanical Properties Bending radius without load 8 x (OD) with load 12 x (OD) Temperature range during operation -20C to + 60C during installation 0C to + 50C Electrical Properties at 20C 5C DC loop resistance 169 /km Resistance unbalance 2% Insulation resistance (500 V) 2000 Mxkm Capacitance at 800 Hz Nom. 50 nF/km Capacitance unbalance (pair to ground) 1500 pF/km Return Loss (100 MHz) 23.0dB Nominal velocity of propagation approx. 66% Propagation delay 427 ns/100 m Delay skew 45 ns/100 m Test voltage (DC, 1 min) Core/Core and Core/Screen 1000 V F Attenuation NEXT PS-NEXT ELFEXT PS-ELFEXT Return loss (MHZ) (dB/100m) (dB) (dB) (dB/100m) (dB/100m) (dB) Nominal 1.0 65 62 68 65 20 2.1 4.0 56 53 56 53 23 3.7 10.0 50 47 48 45 25 6.0 16.0 47 44 44 41 25 7.6 20.0 8.5 45 42 42 39 25 31.2 40 40 38 35 24 10.7 62.5 38 35 32 29 22 15.7 100.0 35 32 28 25 20 21.0 Draka Comteq neil.mabbott draka.com
