X-On Electronics has gained recognition as a prominent supplier of 910312VA0000FE0100 across the USA, India, Europe, Australia, and various other global locations. 910312VA0000FE0100 are a product manufactured by Draka. We provide cost-effective solutions for 910312VA0000FE0100, ensuring timely deliveries around the world.

910312VA0000FE0100 Draka

Name: 910312VA0000FE0100
Brand: Draka
SKU: 910312VA0000FE0100_Draka
Availability: OutOfStock
Rating: 5 (11 reviews)

910312VA0000FE0100 electronic component of Draka

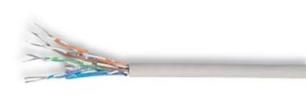

Images are for reference only
See Product Specifications

Part No.	910312VA0000FE0100
Manufacturer:	Draka
Category:	Unclassified
Description:	CABLE, PATCH, CAT 5E FTP, GREY, 100M
Datasheet:	910312VA0000FE0100 Datasheet (PDF)
	Large This product is classified as Large/Heavy, additional shipping charges may apply. A customer service representative may contact you after ordering to confirm exact shipping charges

Price (USD)

1: USD 70.0231 ea
Line Total: USD 70.02

Availability - 0

MOQ: 1 Multiples: 1
Pack Size: 1

910312VA0000FE0100 More Buying Options & Price Grid(s)

Availability	Price	Buy Price	Quantity
0 Ship by Tue. 31 Dec to Mon. 06 Jan MOQ : 1 Multiples : 1	1 : USD 70.0231 5 : USD 67.9223 10 : USD 65.331 15 : USD 62.7544

Specifications

Manufacturer Draka Draka
Product Category Unclassified Unclassified
No Of Pairs 4 4
Wire Gauge 26Awg 26Awg
Conductor Area Csa 0.23Mm² 0.23Mm²
No Of Max Strands X Strand Size 7 X 0.16Mm 7 X 0.16Mm
Reel Length Imperial 328Ft 328Ft
Reel Length Metric 100M 100M
Voltage Rating - -
External Diameter 5.4Mm 5.4Mm
Conductor Material Copper Copper
Jacket Material Pvc Pvc
Jacket Colour Grey Grey
Svhc No Svhc (15-Jun-2015) No Svhc (15-Jun-2015)
Bend Flexing Radius Min 8 X Dia 8 X Dia
Cable Type Shielded Shielded
Capacitance Per Metre 50 pF /m 50 pF /m
Conductor Make-Up 7 / 0.16Mm 7 / 0.16Mm
Core - Core Capacitance 50 pF /m 50 pF /m
Impedance 100Ohm 100Ohm
Installation Tension Max 100N 100N
Installed Bend Radius Min 4 X Dia 4 X Dia
Lan Category Cat5e Cat5e
No Of Cores 8 8
Operating Temperature Max 50 C 50 C
Operating Temperature Min - 20 C - 20 C
Outer Diameter 5.4Mm 5.4Mm
Primary Screen Material Al/Pe Al/Pe
Screen Type Primary Aluminised Polyester Tape Aluminised Polyester Tape
Secondary Insulation Colour Grey Grey
Secondary Insulation Material Pvc Pvc
Weight 11.75Kg 11.75Kg
Wire Size 26Awg 26Awg

We are delighted to provide the 910312VA0000FE0100 from our Draka manufacturer, at competitive rates not only in the United States, Australia, and India, but also across Europe and beyond. A long established and extensive electronic component distribution network has enhanced our global reach and dependability, ensuring cost savings through prompt deliveries worldwide. Client satisfaction is at the heart of our business, where every component counts and every customer matters. Our technical service team is ready to assist you. From product selection to after-sales support, we strive to deliver a seamless and satisfying experience. Are you ready to experience the best in electronic component distribution? Contact X-ON Electronics today and discover why X-On are a preferred choice for the 910312VA0000FE0100 and other electronic components in the Draka manufacturer and beyond.

More Products By Manufacturer "Draka"

Image	Part-Description
Hot	900254CA0000FE0100 CABLE, PATCH, CAT 5E UTP, BLACK, 100M Stock : 0 Large This product is classified as Large/Heavy, additional shipping charges may apply. A customer service representative may contact you after ordering to confirm exact shipping charges.
Hot	60018045 CABLE, PATCH, CAT 5E FTP, GREY, 100M Stock : 0 Large This product is classified as Large/Heavy, additional shipping charges may apply. A customer service representative may contact you after ordering to confirm exact shipping charges.
Hot	60017958 CABLE, PATCH, CAT 5E UTP, GREY, 100M Stock : 0 Large This product is classified as Large/Heavy, additional shipping charges may apply. A customer service representative may contact you after ordering to confirm exact shipping charges.

More Products By Category "Unclassified"

Image	Part-Description
Hot	F-596-C 4 X 1/2 PAN HEAD SCREW Stock : 1 Large This product is classified as Large/Heavy, additional shipping charges may apply. A customer service representative may contact you after ordering to confirm exact shipping charges.
Hot	RVUVK105CH020BW-F CAP, HIGH FREQ, 0402, 50V, C0H Stock : 1 Large This product is classified as Large/Heavy, additional shipping charges may apply. A customer service representative may contact you after ordering to confirm exact shipping charges.
Hot	MPZ2012-KIT C216-005 Stock : 1 Large This product is classified as Large/Heavy, additional shipping charges may apply. A customer service representative may contact you after ordering to confirm exact shipping charges.
Hot	RVEVK105CH3R9JW-F CAP, HIGH FREQ, 0402, 16V, C0H Stock : 1 Large This product is classified as Large/Heavy, additional shipping charges may apply. A customer service representative may contact you after ordering to confirm exact shipping charges.
Hot	RMJMK063BJ224MP-F CAP 0.22UF 6.3VDC X5R 20% SMD 0201 Stock : 1 Large This product is classified as Large/Heavy, additional shipping charges may apply. A customer service representative may contact you after ordering to confirm exact shipping charges.
Hot	RMUMK105CG3R9CV-F CAP, MLCC, 0402, 50V, C0G, 3.9 Stock : 1 Large This product is classified as Large/Heavy, additional shipping charges may apply. A customer service representative may contact you after ordering to confirm exact shipping charges.
Hot	OSTOQ025350 Conn Shrouded Header (4 Sides) HDR 2 POS 5.08mm Solder ST Thru-Hole Stock : 1 Large This product is classified as Large/Heavy, additional shipping charges may apply. A customer service representative may contact you after ordering to confirm exact shipping charges.
Hot	F-465-C F465C waldom Stock : 1 Large This product is classified as Large/Heavy, additional shipping charges may apply. A customer service representative may contact you after ordering to confirm exact shipping charges.
Hot	F-524-C F524C waldom Stock : 1 Large This product is classified as Large/Heavy, additional shipping charges may apply. A customer service representative may contact you after ordering to confirm exact shipping charges.
Hot	F-040-C F040C waldom Stock : 1 Large This product is classified as Large/Heavy, additional shipping charges may apply. A customer service representative may contact you after ordering to confirm exact shipping charges.

Additional Infomation About Product

Technical Specification Draka UK Category 5e FTP Patch (AWG 26) Cabling Application Applicable Standards nd Structured Cable for Patch & Floor Outlet Installation ISO/IEC 11801 2 Edition Compatible with all Known Connection systems EN 50173 EN 50288-2-2 2000 according to EN50173 ANSI/TIA/EIA-568-B.2.1-2002 Approved by BASEC 067/001/010 Fire Propagation Test : UL 1581 VW1 IEC 60332.1 EN50265-2-1 Cable construction Conductor Bare Cu Wire Outside Diameter of Conductor (7x0.16) 0.48 mm Insulator Material PE Outside Diameter of Insulation 0.94 mm Number of Twisted Pairs 4 Outside Diameter of Sheath 5.40 mm Screen Material (Laminated Foil Tape) Al/PE Weight PVC (OHLS) 34.8(36.5) kg/km Sheath Material PVC or OHLS Sheath Colour (OEM Specified) Various Sheath Printing (up to 24 characters) Batch No. & Metre marking Cable Properties Electrical Characteristics 20 C Min. Installation Bend Radius 8 x Dia Characteristic imped. (1-10&20-100Mhz) 10015 Min. Installed Bending Radius 4 x Dia Characteristic impedance (10-20Mhz) 10012 Max. Installation Tension 100N DC Conductor Loop Resistance 30 /100m Max. Installed Tension Zero Max. Resistance unbalance 2% Installation Temp. Range Installed 0 to 50C Nominal Velocity of Propagation 66% Operating Temp. Range -20 to 50C Nominal Capacitance 50 pF/m Max. Capacitance unbalance 1600 pF/km Insulation Resistance (500V) 2000 M.km Packaging Reel Sizes P4 P5 Length per Reel 500m 1000m Reel Dimensions 400mm 500mm Weight (approx.) 19kg 38kg Impedance Attenuation & NEXT 120 0 -10 -20 110 NEXT LIMIT -30 TYPICAL ATT. -40 ATT. LIMIT 100 -50 TYPICAL NEXT -60 -70 90 -80 -90 80 -100 0 25 50 75 100 125 0 25 50 75 100 125 150 Frequency (MHz) Frequency (MHz) Draka UK Ltd. Cardinal Cables, Crowther Road, Washington, Tyne & Wear, England. +44(0)191 417 3525 www.drakauk.com FAX +44 (0)191 416 8671 OHMS dB/100MX-ON Electronics Largest Supplier of Electrical and Electronic Components Click to view similar products for Draka manufacturer: Other Similar products are found below : 60018045 60017958 900131VA1818FE0305 XDR10-001 900254CA0000FE0100 M22759/90-24-9 M22759/92-16-6 M22759/91-22-5 EN2267-009C012P EN2267-010A001S EN2267-010A012S
