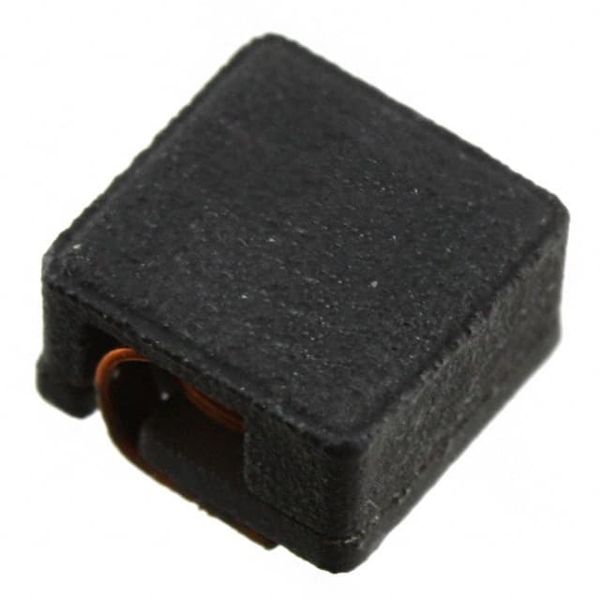

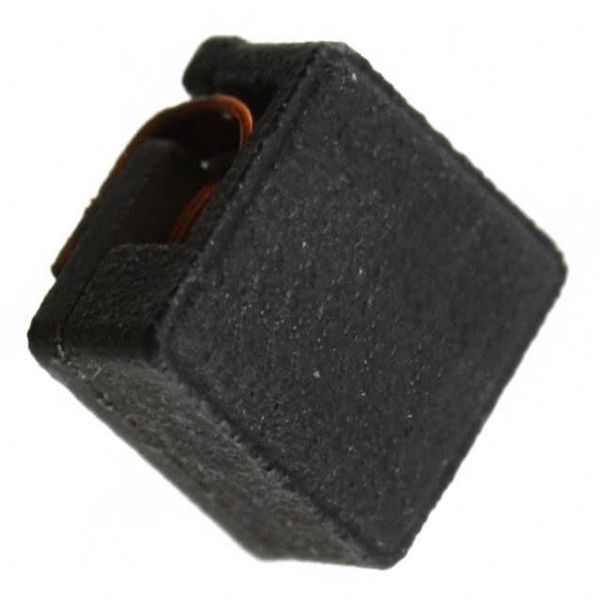

HCP0704-R40-R Eaton

Effective July 2017 Technical Data 4348 Supersedes February 2009 HCP0704 High current power inductors Applications Voltage Regulator Module (VRM) Multi-phase regulators Desktop and servers Base station equipment Notebook and laptop regulators Data networking and storage systems Point-of-load modules (POL) Battery power systems DCR sensing circuits Product features Environmental Data 6.8 x 6.8 x 4.2 mm surface mount package Storage temperature range (Component): Iron powder core material -40 C to +155 C Magnetically shielded, low EMI Operating temperature range: -40 C to +155 C High temperature core material eliminates (ambient plus self-temperature rise) thermal aging issues Solder reflow temperature: J-STD-020 (latest revision) compliant High current carrying capacity, low core losses Tight DCR tolerance for sensing circuits HALOGEN Inductance range from 0.40 H to 4.7 H HF Pb FREE Current range from 5.0 A to 27 A Frequency range up to 2 MHz Halogen free, lead free, RoHS compliantHCP0704 Technical Data 4348 Effective July 201 7 High current power inductors Product Specifications 6 1 2 3 4 5 Part Number OCL 25% (H) FLL Min. (H) I (A) I +25 C (A) DCR (m) +20 C K-factor rms sat HCP0704-R40-R 0.40 0.28 17 27 3.2 10% 383.1 HCP0704-R60-R 0.60 0.42 14 21 4.5 10% 313.5 HCP0704-1R0-R 1.00 0.7 12 17 6.2 10% 265.3 HCP0704-1R8-R 1.80 1.26 8.5 13 11.0 10% 202.8 HCP0704-2R3-R 2.30 1.56 7.5 11.5 16.5 10% 164.2 HCP0704-3R3-R 3.30 2.31 6.0 9.5 25.0 10% 149.9 HCP0704-4R7-R 4.70 3.29 5.0 8.0 29.5 10% 127.7 1 Open Circuit Inductance (OCL) Test Parameters: 100 kHz, 0.10 V , 0.0 Adc rms 4 I : Peak current for approximately 20% rolloff at +25 C. sat 2 Full Load Inductance (FLL) Test Parameters: 100 kHz, 0.1 V , I 1 rms sat 5 K-factor: Used to determine B for core loss (see graph). B = K L I : (Gauss), K: (K-factor * * p-p p-p 3 I : DC current for an approximate temperature rise of 40 C without core loss. Derating rms from table), L: (inductance in H), I (peak-to-peak ripple current in amps). is 6 Part Number Definition: HCP0704-xxx-R necessary for AC currents. PCB pad layout, trace thickness and width, air-flow and proximity of other heat generating components will affect the temperature rise. It is recommended the part temperature not exceed HCP0704 = Product code and size +125 C under worst case operating conditions verified in the end application. xxx= Inductance value in H, R = decimal point. If no R is present, then third character = of zeros -R suffix = RoHS compliant Dimensions (mm) Top View Bottom View Recommended Pad Layout Side View Schematic HCP0704-R40 to 2R3= 1.20 +/- 0.2 HCP0704-R40 to 1R0= 4.20 max HCP0704-1R8 to 4R7= 4.00 max HCP0704-3R3 to 4R7= 1.00 +/- 0.2 7.60 6.80 Max 2.50(2x) 3.30.3 1 4.00(2x) 2 1 2 6.80 Max1 2 The nominal DCR test point is in the middle of the terminal Part Marking: HCP0704 xxx = Inductance value in H. (R = Decimal point). If no R is present, then last character is of zeros wwllyy = Date code R = Revision level Do not route traces or vias underneath the inductor Packaging information (mm) Supplied in tape and reel packaging, 1000 parts per 13 diameter reel. 1.5 Dia. 1.5 Dia 4.0 +0.1/-0.0 min. 1.75 2.0 A Section A-A 1 7.5 16.0 HCP0704 xxx 7.50 6.8 0.3 wwllyy R 2 A User direction of feed 6.9 HCP0704-R40 to 1R0= 4.2 HCP0704-1R8 to 4R7= 4.0 12.0 www.eaton.com/electronics 2 HCP0704 xxx wwllyy R
