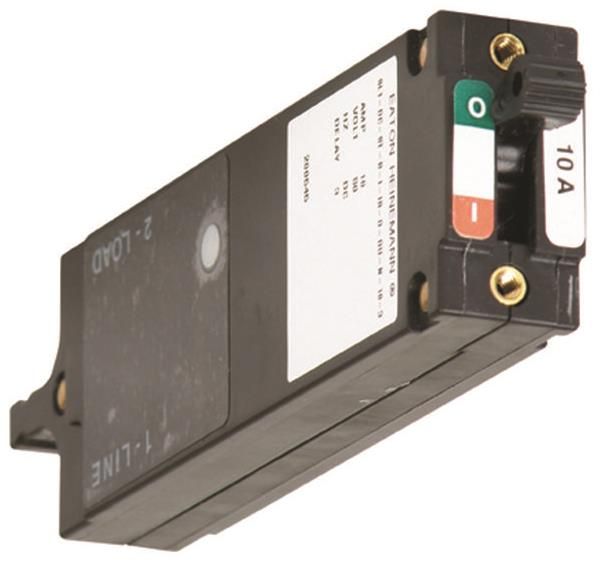

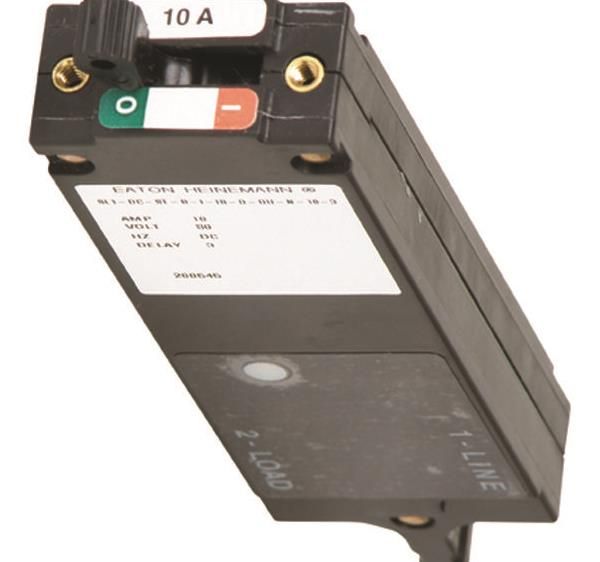

HeinemannT Hydraulic Magnetic Circuit Breaker 1U Series Slimline Critical Power Product Focus DC Power Distribution Telecom Applications The 1U Series Slimline is the rack space without sacrificing 1U Series Slimline Increase Your first hydraulic magnetic breaker performance. All configurations Product Highlights Power Density to use a snap action mecha- are ULT 489 listed for branch Proven reliability of the With Eatons new Heinemann nism which improves reliability, circuit protection and conform Heinemann Hydraulic 1U Series Slimline Hydraulic safety and performance. With to IEC standards. Available Magnetic Trip Unit. Magnetic Circuit Breaker you snap action, the contacts are with an integral auxiliary can increase your power Patented snap action controlled by a stored energy switch, the breaker allows density without sacrificing technology for improved mechanism that closes in one for integration into the most performance. The 1U Series performance and reliability. swift action when the operator complex systems. Slimline offers the precision switches the handle to the Worlds first circuit breaker Take your equipment to a performance of a full size ON position. This advanced designed for 1U height new level of power density hydraulic magnetic breaker design prevents premature rack-mount applications. and protection, never before in a miniaturized package. contact failure, improves possible. Learn about how Ambient compensating trip Designed specifically for efficiency and allows for higher the new Eaton 1U Series unit from -40 to +80C. rack-mount applications, current ratings. Slimline is revolutionizing the Slimline s reduced height 1.0 100 ampere The 1U Series Slimline com- the dc power protection is ideal for tight spaces and continuous current pact size allows greater design market today. the protection of the latest ratings (100% rated). flexibility and saves valuable 1U devices. 80 Vdc rating. UL 489 listed. CE mark. Integral auxiliary switch option. Bullet, screw or stud terminals. Panel removal tool. Standard distribution panel configurations available.Typical Dimensions 4.60 X (116.8) .75 (19.1) .04 .08 (1.9) (1.0) Line On .57 16 .43 (14.6) 1.50 1.15 (10.9) .86 .83 (38.1) (29.1) (21.8) (21.1) 16 .75 20 (19.1) Off .42 .65 Reset Load (10.6) (16.5) .60 2X Mounting Inserts (15.3) TERMINAL CHART (STANDARD LENGTH) Torque Allowed for Terminal Length X Rating M3 & 6-32 Inserts is M5 X 0.8 .81 (20.6) 0 70 A 5-7 in.-lb. (0.6 - 0.8 N-m) 10 32 .64 (16.3) 0 70 A M6 X 1 .85 (21.6) 71 100 A Standard Screw Terminal Configuration 1/4 20 .70 (17.7) 71 100 A .77 1.30 (19.5) (33.0) .38 4.60 Customer Plug-in .830 (9.7) (116.8) (21.08) Terminals Customer Aux Connection .57 .44 1.50 (14.5) (11.2) .88 1.15 (38.1) (22.4) .75 (29.1) (19.1) 2X .16 Breaker Aux (4.0) Connection Auxiliary Switch with Bullet Terminals 1-Pole Panel Cutout PERFORMANCE DATA Auxiliary Switch Option Current Range 1 100 A 1 Continuous (100% Rated) Voltage Up to 80 Vdc or up to 240 Vac 1 1 1 Interruption Rating 10 kA 80 Vdc or 10 kA 240 Vac Delay Curves Medium, Short, Instantaneous Operating Temperature -40 to + 80C Terminals Screw, Stud or Bullet Approvals UL 489 Listed, CE Mark Auxiliary Switch Rating 100 mA 80 Vdc or 300 mA 30 Vdc 1 Phase I Launch 5 60 A, 80 Vdc, 5 kA, UL 489. Consult Customer Service for availability of future releases. Catalog Number Configuration Guide Use the table below to select the correct standard catalog number for your application. Standard configuration consists of Series Trip, Imperial Mounting Inserts, UL 489 Listing and Screw Terminals. We also offer custom configurations and assembled DC distribution panels. To get additional technical assistance or for more information about custom applications, call +1 800 356 1243 (Americas), +41 21 841 92 11 (EMEA) or +86 512 6716 3397 (Asia). CATALOG NUMBERING SYSTEM Series Poles Current Rating (Amperes) Internal Circuit Delay Curve Mounting Inserts Approvals Terminals Auxiliary Switch SL 1 1 100 A 001 to 100 2 Series Trip 3 Standard C2 Imperial 3 UL 489 3 Screw 3 NO Auxiliary 3 2 Switch Only SW Short Delay C3 Metric M CE Mark CE Stud ST NO Contact A1 Instantaneous P Dual Listing W Bullet BT NC Contact A2 Note: Catalog number example SL1005C2. 2 Phase I Launch 5 60 A, 80 Vdc, 5 kA, UL 489. Consult Customer Service for availability of future releases. 3 No catalog designation is required for a standard catalog configuration. UL is a federally registered trademark of Underwriters Laboratories Inc. Heinemann is a federally registered trademark of Eaton Corporation. Eaton Electrical Inc. 1000 Cherrington Parkway Moon Township, PA 15108 2006 Eaton Corporation All Rights Reserved United States Printed in USA tel: 1-800-525-2000 Publication No. PA01106001E / Z4344 www.EatonElectrical.com April 2006
