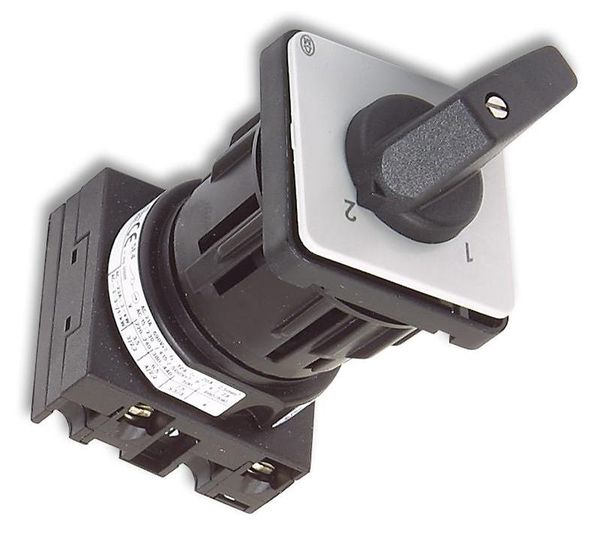

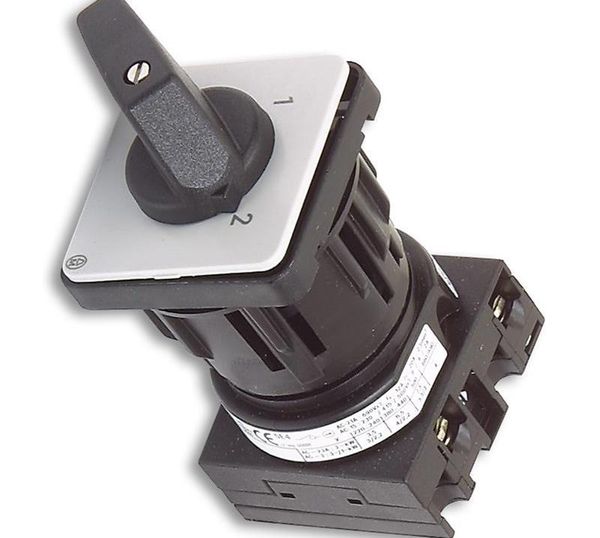

Type: T018220/EZ Article No.: 095799 Sales text 2 WAY SWITCH With black thumbgrip and grey front plate Ordering information Design Centre mounting Description Without 0 (Off) position Description Changeover switches No. of poles M 1 Max. motor rating AC23A 400/415 V 5060 Hz P kW 6.5 Rated uninterrupted current I A 20 u Contact sequence Front plate no. General Standards IEC/EN 60947, VDE 0660, IEC/EN 60204, CSA, UL Switchdisconnectors to IEC/EN 609473 1Loadbreak switches to IEC/EN 609473 6 Lifespan, mechanical Operations 10 1 Maximum operating frequency Operations/h 3000 Damp heat, constant, to IEC Climatic proofing 60068278 Damp heat, cyclical, to IEC 60068230 Ambient temperature Open C 25...50 Enclosed C 25...40 Mounting position As required Mechanical shock resistance to Halfsinusoidal g > 15 IEC 60068227 shock 20 ms Contacts Rated operational voltage U V AC 690 e Rated impulse withstand voltage U V AC 6000 imp Overvoltage category/pollution III/3 degree Rated uninterrupted current open I A 20 u Enclosed I A 20 u Load rating with intermittent operation, class 12 AB 25 % DF I 2 e AB 40 % DF I 1,6 e AB 60 % DF I 1,3 e Shortcircuit rating Fuse A gG/gL 20 Rated shorttime withstand I A 320 cw rms current (1 s current) Safe isolation to VDE 0106 Part 101 and Part 101/A1 between the contacts V AC 440 90 60 Switching angles 45 30 Contact units 11 Doublebreak contacts max. 22 Current heat loss per contact at W 0,6 I e Terminal capacities 2
