ERD210CSZ Excel Cell Electronic(ECE)

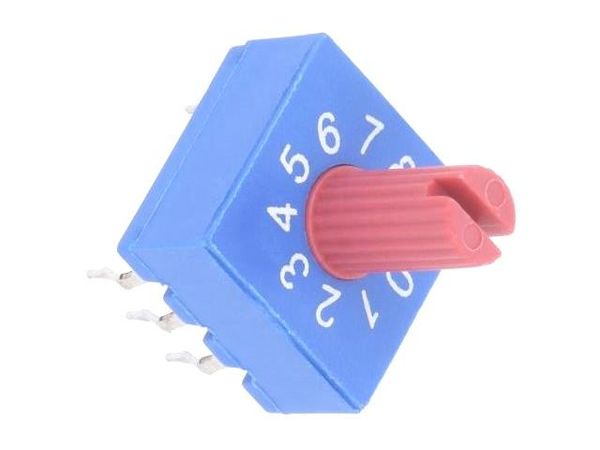

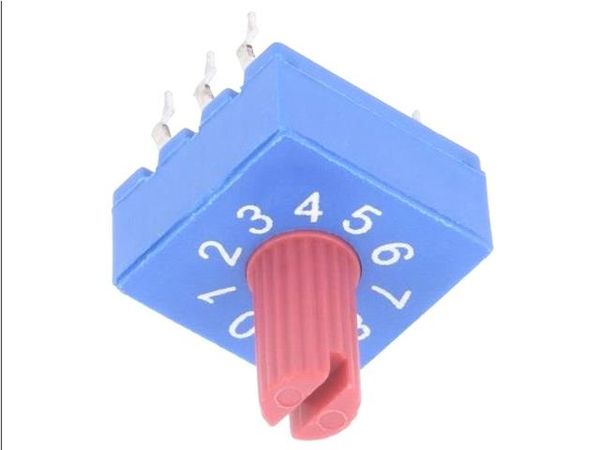

Switch ERD SERIES 10x10 SIZE SEALED CONSTRUCTION ROTARY TYPE PIN OUT (3:3) PIN OUT(1:4) ERD 1xxxx ERD 2xxxx ERD 4xxxx ERD 5xxxx (Flat Type) (Shaft Type) (Flat Type) (Shaft Type) FEATURES z Molded-in terminals and fully sealed construction. z All plastics UL 94V-0 grade fire retardant. z Reliable contact and long-term stability. z Binary decimal (8 or 10 positions) and hexadecimal (16 positions), real and complementary codes available. z Pin-out compatible with most of current equivalents. z Gold plated contacts to ensure low contact resistance. APPLICATIONS z Address switching applications z Data storage devices z Computer and peripherals z Instrumentation SPECIFICATIONS 1.ELECTRICAL switching 25mA, 24VDC z Contact rating non-switching 100mA z Contact resistance 100m Max. z Insulation resistance 1000M Min. at 100VDC z Dielectric strength 250VAC Min. for 60 seconds 2.MECHANICAL AND ENVIRONMENTAL operating -25 to +70 z Temperature rating Storage -40 to +85 z Operation force 500 gf-cm Max. 1 For the latest product information, Please visit our website at Switch z Mechanical life 2000 steps per position z Vibration 10Hz-50Hz-10Hz for 6 Hrs. after flux 2305 for 50.5 seconds,95coverage z Solderability (for through hole type) z Resistance to soldering heat 2605 for 51 seconds (for through hole type) z Reflow soldering heat for SMT type(reference only) PART NUMBERING SYSTEM ERD 1 10 R S Z Z: RoHS Compliant Setting : S: Standard Type (Top Adjust Type) R: Right Angle Type with Row Spacing 2.54 mm (Side Adjust Type) F: Right Angle Type with Row Spacing 5.08 mm (Side Adjust Type) M: Surface Mounting Type with Top Tape Sealed D: Surface Mounting Type with Top Tape Sealed in Tape & Reel Package Code: R: Real C: Complement A: Real / Cross Shaped Slot Type B: Complement / Cross Shaped Solt Type Number of positions: 08,10,16 Rotor: 1: Flat Type (pin out 3 :3) 2: Shaft Type (pin out 3:3) 4: Flat Type (pin out 1:4) 5: Shaft Type (pin out 1:4) Series name: ERD: Rotary Type Sealed Construction 2 For the latest product information, Please visit our website at
