X-On Electronics has gained recognition as a prominent supplier of ERD210RSZ Rotary Switches across the USA, India, Europe, Australia, and various other global locations. ERD210RSZ Rotary Switches are a product manufactured by Excel Cell Electronic(ECE). We provide cost-effective solutions for Rotary Switches, ensuring timely deliveries around the world.

ERD210RSZ Excel Cell Electronic(ECE)

Name: ERD210RSZ
Brand: Excel Cell Electronic(ECE)
SKU: ERD210RSZ_Excel Cell Electronic(ECE)
Availability: InStock
Rating: 5 (11 reviews)

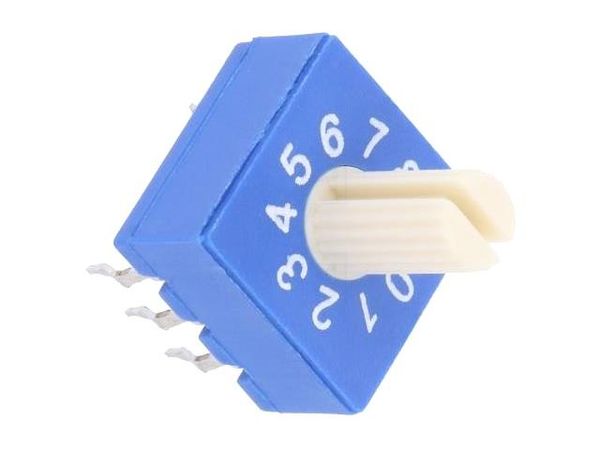

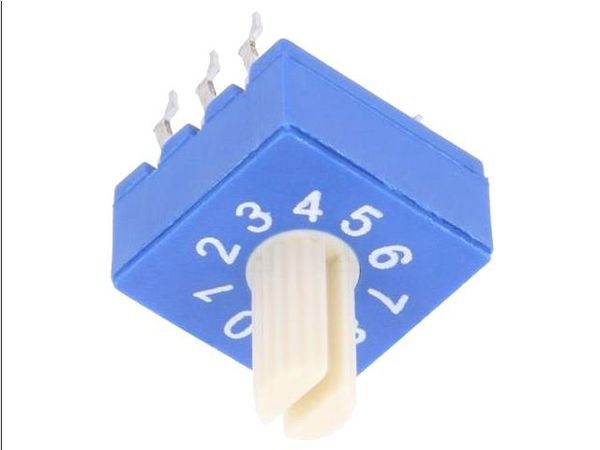

ERD210RSZ electronic component of Excel Cell Electronic(ECE)

Images are for reference only
See Product Specifications

Part No.	ERD210RSZ
Manufacturer:	Excel Cell Electronic(ECE)
Category:	Rotary Switches
Description:	Encoding switch; DEC/BCD; Positions:10; THT; Rcont max:100mO
Datasheet:	ERD210RSZ Datasheet (PDF)
	Large This product is classified as Large/Heavy, additional shipping charges may apply. A customer service representative may contact you after ordering to confirm exact shipping charges

Price (USD)

1: USD 3.304 ea
Line Total: USD 3.3

Availability - 316
Ship by Wed. 25 Dec to Fri. 27 Dec

MOQ: 1 Multiples: 1
Pack Size: 1

ERD210RSZ More Buying Options & Price Grid(s)

Please wait...

Availability Price Buy Price Quantity

316

Ship by Wed. 25 Dec to Fri. 27 Dec

MOQ : 1
Multiples : 1

1 : USD 3.304
5 : USD 2.982
9 : USD 2.044
24 : USD 1.932

Specifications

Manufacturer
Excel Cell Electronic(ECE) Excel Cell Electronic(ECE)

Product Category
Rotary Switches Rotary Switches

Number of Positions
10 10

Contact Plating
Gold - Plated Gold - Plated

Leads
For Pcb For Pcb

Mounting
Tht Tht

Switches Features
With Knob With Knob

Manufacturer Series
Erd Erd

Kind Of Encoding Switch
Dec/Bcd Dec/Bcd

Flammability Rating
Ul94v - 0 Ul94v - 0

Stable Positions Number
10 10

Contact Material
Copper Alloy Copper Alloy

Type Of Switch
Encoding Switch Encoding Switch

Switching Torque
5Ncm 5Ncm

Max Contact Resistance
: 100 mOhms : 100 mOhms

Min Insulation Resistance
1000 mOhms 1000 mOhms

Operating Temperature
- 25 To 70 C - 25 To 70 C

Soldering Temperature
260 C / 5 s 260 C / 5 s

Dc Contacts Rating R
0.1A / 50Vdc 0.1A / 50Vdc

Body Dimensions
10X10x5mm 10X10x5mm

Terminal Pitch
2.54Mm 2.54Mm

Notes:- Show Stocked Products With Similar Attributes.
