X-On Electronics has gained recognition as a prominent supplier of ERD710RM06Z Rotary Switches across the USA, India, Europe, Australia, and various other global locations. ERD710RM06Z Rotary Switches are a product manufactured by Excel Cell Electronic(ECE). We provide cost-effective solutions for Rotary Switches, ensuring timely deliveries around the world.

ERD710RM06Z Excel Cell Electronic(ECE)

Name: ERD710RM06Z
Brand: Excel Cell Electronic(ECE)
SKU: ERD710RM06Z_Excel Cell Electronic(ECE)
Availability: OutOfStock
Rating: 5 (11 reviews)

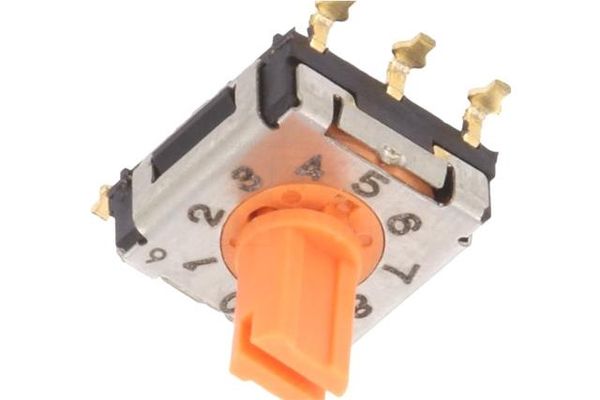

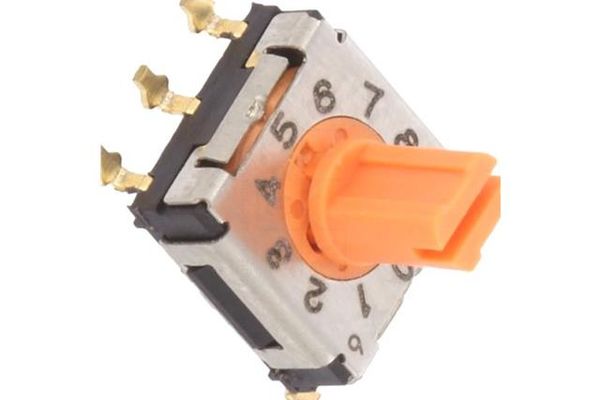

ERD710RM06Z electronic component of Excel Cell Electronic(ECE)

Images are for reference only
See Product Specifications

Part No.	ERD710RM06Z
Manufacturer:	Excel Cell Electronic(ECE)
Category:	Rotary Switches
Description:	Encoding switch; DEC/BCD; Positions:10; SMT; Rcont max:200mO
Datasheet:	ERD710RM06Z Datasheet (PDF)
	Large This product is classified as Large/Heavy, additional shipping charges may apply. A customer service representative may contact you after ordering to confirm exact shipping charges

Price (USD)

1: USD 2.3587 ea
Line Total: USD 2.36

Availability - 0

MOQ: 1 Multiples: 1
Pack Size: 1

ERD710RM06Z More Buying Options & Price Grid(s)

Availability	Price	Buy Price	Quantity
0 Ship by Fri. 03 Jan to Tue. 07 Jan MOQ : 1 Multiples : 1	1 : USD 2.3587 5 : USD 2.1689 10 : USD 1.8165 26 : USD 1.708 490 : USD 1.6809

Specifications

Manufacturer Excel Cell Electronic(ECE) Excel Cell Electronic(ECE)
Product Category Rotary Switches Rotary Switches
Contact Plating Gold - Plated Gold - Plated
Mounting Smt Smt
Leads For Pcb For Pcb
Manufacturer Series Erd Erd
Type Of Switch Encoding Switch Encoding Switch
Kind Of Encoding Switch Dec/Bcd Dec/Bcd
Stable Positions Number 10 10
Flammability Rating Ul94v - 0 Ul94v - 0
Contact Material Copper Alloy Copper Alloy
Min Insulation Resistance 100 mOhms 100 mOhms
Max Contact Resistance : 200 mOhms : 200 mOhms
Switching Torque 5Ncm 5Ncm
Operating Temperature - 25 To 70 C - 25 To 70 C
Dc Contacts Rating R 0.1A / 5Vd C 0.1A / 5Vd C
Soldering Temperature 245 C / 5 s 245 C / 5 s
Terminal Pitch 2.54Mm 2.54Mm

We are delighted to provide the ERD710RM06Z from our Rotary Switches category, at competitive rates not only in the United States, Australia, and India, but also across Europe and beyond. A long established and extensive electronic component distribution network has enhanced our global reach and dependability, ensuring cost savings through prompt deliveries worldwide. Client satisfaction is at the heart of our business, where every component counts and every customer matters. Our technical service team is ready to assist you. From product selection to after-sales support, we strive to deliver a seamless and satisfying experience. Are you ready to experience the best in electronic component distribution? Contact X-ON Electronics today and discover why X-On are a preferred choice for the ERD710RM06Z and other electronic components in the Rotary Switches category and beyond.
