129661 Gems Sensors

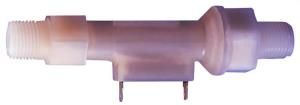

G G E E M M S S C C O O PISTON TYPE FS-150 Series Straight Flow Path with Low Pressure Drop Flow Rate Settings: Liquids: 0.5 GPM to 5 GPM Port Size: 1/2 NPT Primary Construction Material: Polypropylene Setting Type: Fixed These slim, inline switches reduce pressure drop to a minimum. They incorporate a unique, dual-diameter, internal bore and piston configuration to minimize flow Patent constriction. Liquids are able to smoothly pass around the piston and flow through 4.996.396 U.L. RECOGNIZED the switch with little pressure loss to the down stream line. FILE NO. E31926 RoHS CSA Listed File No. LR30200 RoHS Specifications Wetted Materials Housing Polypropylene, Hydrolytically Stable, Glass Reinforced Piston Ryton -R4, 316 Stainless Steel Dimensions O-Ring Viton Spring 316 Stainless Steel Operating Pressure, Maximum 200 PSIG (13.8 bar) 1-1/16 +70F to +150F (+21.1C to 65.5C) (26.9 mm) 150 PSIG (10.3 bar) HEX +150F to +212F (+65.5C to +100C) 1/2 NPT Operating Temperature 0F to 212F (-17.8C to +100C) 1/4 (6.3 mm) Set Point Accuracy 15% QUICK CONNECT TERMINALS Set Point Differential 20% Maximum Switch* SPST, 20 VA 7/8 (22.2 mm) Inlet/Outlet Ports 1/2 NPT Male DIA. REF. 1-3/8 5-29/32 Electrical Termination 1/4 Male Quick Connect Terminals (2) (34.9 mm) REF. (139.7 mm) REF. *See Electrical Data on Page X-5 for more information. How To Order Standard Models 2-5/32 1/2 NPT (54.8 mm) REF. Specify Part Number based on flow setting and switch operation. Part Numbers Flow Settings GPM Normally Open No Flow Normally Closed No Flow 1-13/64 (30.5 mm) REF. 0.5 129660 129666 1-5/16 (33.3 mm) 1.0 129661 129667 HEX 2.0 129662 129668 3.0 129663 129669 Note: Cable output available. Please consult factory. 4.0 129664 129670 5.0 129665 129671 Notes: Pressure Drop - Typical 1. Flow settings are calibrated using water +70F on increasing flow, with units in a horizontal position (terminals up). 5 2. Care should be taken by specifiers to ensure fluid compatibility with the above listed wetted materials. 3. Use of 150 micron filtration is recommended. 4 Stock Items. Part No. Part No. 129665 129663 3 Part No. 129664 2 Part No. 129660 Part No. 129661 Part No. 129662 1 0 0 1 2 3 4 5 6 7 FLOW RATE - GPM Tests conducted with units in a horizontal position with water at +70F (21C). Data will vary slightly for vertically mounted units. G-7 FS-150 Series / p1of1 / 30-JUL-14 Visit www.GemsSensors.com for most current information. M M P P L L I I A A N N T T PRESSURE DROP (PSID) FLOW SWITCHESX-ON Electronics Largest Supplier of Electrical and Electronic Components Click to view similar products for Flow Sensors category: Click to view products by Gems Sensors manufacturer: Other Similar products are found below : VSR-3 SS-12225 AWM43300VH AWM730P1 HAFBLF0400C5AX3 FS1010-C01 UF25B100 FS15LF FS22A FS1012-1100-NG FS1012- 1020-NG FS2012-1100-NG SFM3000-200C G-MAFCO-005 SFM3000-200 FPP800KIT1 TDC-GP21 T&R HAFBLF0100C4AX5 HAFBLF0400C4AX3 HAFBLF0050C4AX3 SFM4100 Air 156268 70824 129660 155421 155481 173931-C 173250 87480 ATS-FM-22 ATS-FM-34 ATS-FM-44 ATS-FM-66 ATS-FM-M 81501025 81525101 81526001 81529003 81529004 81529005 81529006 81529007 81529008 81529010 81529025 81529901 FS15A FS-90/1 HAFBSS0200C2AX5 AWM1200V
