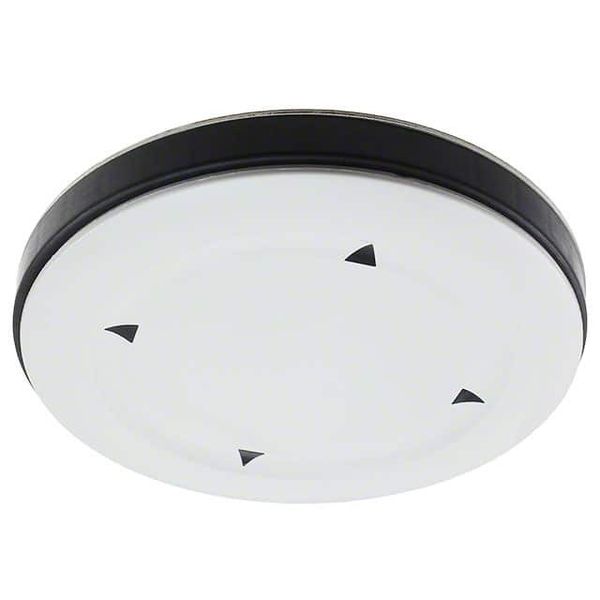

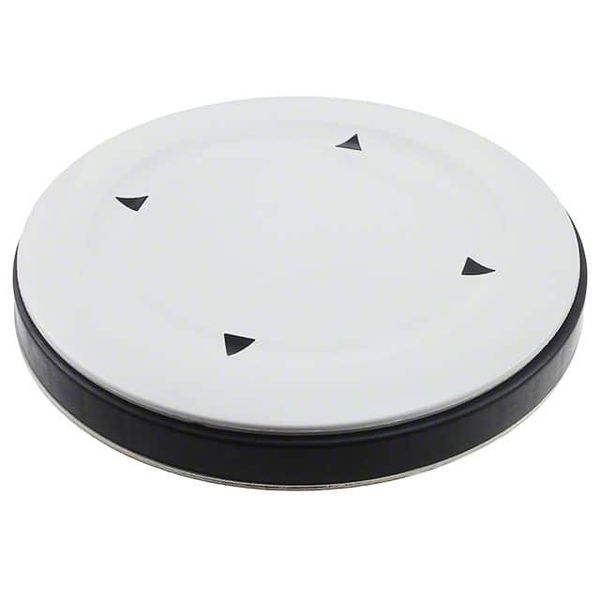

Multi-Touch Control Wheel Features Grayhill Instinct Gesture Recognition Three devices in one: Multi-Touch touchpad 4-256 position rotary encoder 4 position (N, S, E, W) joystick Proximity sensor Impervious to cleaning solutions Easy to integrate into any device Rugged, scratch-resistant surface USB compatible HID device Possible applications include: Medical devices Clean room controls Off-Highway vehicles Instinct Technology. Let Your Fingers Do The Directing Intuitively Functional. Grayhill Instinct is a set of multi-touch gesture recognition software tools that, Multi-Touch Control Wheel combines a multi-touch touchpad with a circular when integrated with Grayhill multi-touch groove to offer even more functionality. Touching the North, South, East or West components, creates more intuitive human points in the groove can be interpreted as joystick switch inputs. Running your interface solutions. A Shorter Distance proximity sensor automatically detects when a user approaches the device, allowing the OEM equiptment to enter a power-saving mode when not in use. A from Mind to Machine few of the many multi-touch gestures are shown below. An intuitive, easy-to-use interface improves productivity. Instinctive movements provide a variety of commands, all without allows faster interaction without needing to take eyes off of the screen. Plus, ergonomics are improved by consolidating all controls within easy reach. Simplicity in use & Device Design The Multi-Touch Control Wheel can replace touchscreens, keypads, trackballs, switches and joysticks. This makes for clean design and cuts costs of manufacturing. The MTCW increases the engineers product, while reducing front panel size and complexity. www.grayhill.com Patent Pending 2013DIMENSIONS .125 3.370 TAB LOCATION ON LOCK WASHER 3.18 2.76 70.0 PANEL CUT OUT 85,59 SEE NOTE 1 FLAT ACTIVE AREA MAX. ENCODER AREA 4.65 118,1 4.015 3.20 101.98 81,3 2.080 52.82 4.525 114,94 MAX HEIGHT .160 PRINTED FOUR POSITION JOYSTICK 4,06 ARROWS SHOWN AS REFERENCE NOTES: 1. TAB DENOTES TOUCH SCREENTO ORNORT SIDE VIEW SHOWN WITHOUT NUTS & WASHERS .300 7,62 .965 24,51 ELECTROMAGNETIC COMPATIBILITY SPECIFICATIONS 3.988 101,29 Designed and tested for use in systems requiring IEC 60601-1 RF Emissions CISPR 11 Group 1 Class B ENVIRONMENTAL & MATERIAL SPECIFICATIONS Operating temperature -10C to +60C Electrostatic Discharge IEC 61000-4-2 6kV Contact 8kV Air Seal IP67 Electrical Fast Transient/ IEC 610 00-4-4 1kV Coupling Clamp Humidity 95% Humidity at 60C for 240 hours Burst Chemical resistance 72 Hr exposure to Coffee, Cola, Power Frequency IEC 610 00-4-8 3 A/m (Resistance to accidental Saline, Methylated spirits, Isopropyl, (50/60 Hz) Magnetic Field spills and disinfectants) Ammonia, Chlorine bleach, Sodium Conducted RF* IEC 61000-4-6 Level 1 - 120dBuV, 150 kHz Hypochlorite, Ethanol, Dupont to 80 MHz Virkon, Dupont RelyOn, Radiated RF IEC 61000-4-3 3 V/M 80 MHz to 2.5 GHz Betadine, Hydrogen Peroxide, Cidex, Steris, Civco * see Grayhill application notes Speci cations subject to change Material Xenoy SOFTWARE DEVELOPMENT KIT part: T201-DEV1 ELECTRICAL PERFORMANCE SPECIFICATIONS Grayhill offers an Instinct Software Development Kit that provides USB 2.0, 3.0 Compatible, the user with a common development platform for prototyping Full speed HID Compliant and evaluating different solutions. The Software Development Kit is comprised of a mounted Multi-Touch Control Wheel, a standard Operating Voltage 2.5 to 5.5 Vdc USB cable and demo software. The kit is available directly from Input Current 50mA max 5V Grayhill, or from one of several distributers. For more detailed Icon Wear Resistance Minimum 1,000,000 cycle information, including a copy of the Users Guide, go to www. grayhill.com/instinct. Touchpad Resolution 1280 x 1280 pixels ORDERING INFORMATION CONNECTION Mating Connector: Molex 501939-0400 T 201- XX X PIN 1 2 3 4 Series Code Color 1 = White USB + Vcc USB Negative (D-) USB Positive (D+) Gnd 2 = Black Multi-Touch Type C = Capacitive Control Wheel Device Size Grayhill, Inc. 7 = 70mm 561 Hillgrove Avenue phone: (708) 354-1040 Contact Grayhill for Custom Options. LaGrange, Illinois 60525 fax: (708) 354-2820 instinct grayhill.com Bulletin 1202 www.grayhill.com Rev 01/1 5
