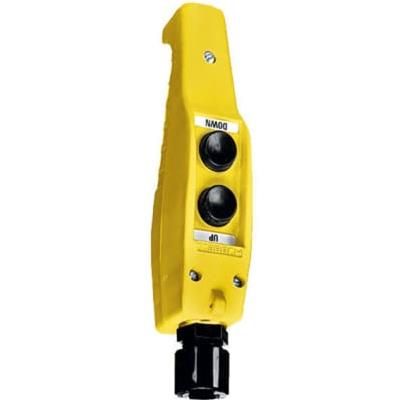

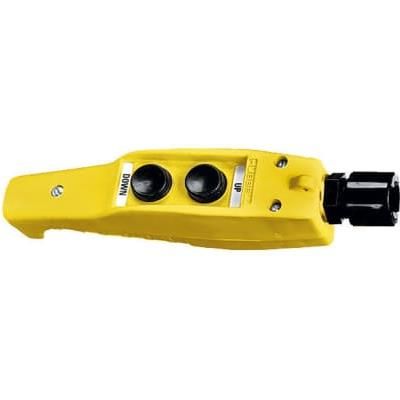

Switched Disconnects and Enclosures Pendant Pushbutton Stations CPB and PBS Series IP55 SUITABILITY 1.06 CPB Series Compact Pendant Stations, Two Button, NEMA 4X (26.9) Description Catalog Number Single-speed normally open-normally closed without mechanical interlock. CPB20 Single-speed with mechanical interlock between pushbuttons. CPB21 Two-speed with mechanical interlock between pushbuttons. CPB22 9.13 Note: Included with product: nylon cord grip and sealing washer (must be installed to achieve NEMA 4X rating). (231.9) Indication label pack. Cord dia. range .375.625 in. (9.515.9) Ambient temperatures: 25F to 140F (32C to 60C). Typical applications: Package electric motor hoists. Remote control of machinery. Contact Ratings, CPB Series Single-Speed Voltage Current 2.38 (60.5) AC 120V 6A 35% PF 240V 3A CPB21 DC 125V 1.1A Wiring Diagram CPB2 Series Momentary IND 250V .55A (On / Off) CPB20 Two-Speed Voltage Current N.O.1 N.C.1 Com.1 AC 120V 3A Single Speed* CPB21 35% PF 240V 1.5A N.O.1 N.O.2 Com.1 Two Speed* CPB22 N.O.1 N.O.2 IP44 Ctr. SUITABILITY *Mechanical floating ball interlock PBS Series Heavy Duty Pendant Pushbutton Stations, NEMA 3R prevents activating both Pushbuttons simultaneously. Description Catalog Number 2 button, single speed. PBS2 2 button, two speed. PBS22 4 button, single speed. PBS4 4 button, two speed. PBS42 6 button, single speed. PBS6 6 button, two speed. PBS62 8 button, single speed. PBS8 8 button, two speed. PBS82 Product Dimensions, PBS Series Style A Approx. Wt. Assembled Catalog Number 2 button 7.88 (200.0) 2.5 lbs PBS2 4 button 13.69 (347.6) 4.5 lbs PBS4 PBS6 6 button 18.0 (457.2) 5.5 lbs PBS6 Cable Entrance Threaded 8 button 22.31 (566.7) 7.5 lbs PBS8 1 (25.4) NPT I.D. 1.125 (28.6) O.D. Note: Housing: Yellow vinyl rubber. Contact Interrupting Ratings, PBS Series 30mm Two-Speed Single Break Voltage Current K.O. AC 120V 6A 35% PF 240V 3A A DC 125V .4A IND 250V .2A Single-Speed Double Break Voltage Current AC 120V 6A 35% PF 240V 3A 3.25 3.50 DC 125V 1.1A (82.6) (88.9) 0.88 (22.4) IND 250V .55A Dimensions in Inches (mm) www.hubbell-wiring.com F-23 Wiring Device-Kellems Top Top Top TAB Ctr. Ctr. Bott. Bott. Bott.X-ON Electronics Largest Supplier of Electrical and Electronic Components Click to view similar products for hubbell manufacturer: Other Similar products are found below : CFB7TALU 03301045 02216024 03301047 5369VY 5461 WSS1P 00322005LPK50 01304055 M001SG000 M001SG00P M11MSP 01301013 02201005 02202008 02203007 02203064 02206012 02211003 02211019 02402005 02406006 02407008 CS1223GY CS6370 7310 MCMA14110 7485VBLK 7585 7716 7967 FF3I PF2004PA005 PFOLT312 PH2003PA010 PH2304PB050 PH6598W 9308 GFP2305 GFR5352IA GFR5362WTR GFR8300SNAPBKNA PM3004PA015 PT2X2FIT HBL13R12D HBL16LEDR HBL18201WCN HBL20GBA612IV HBL20IG606GY HBL2441
