SUCOFLEX_126E/SMAM/SMAM/500MM Huber & Suhner

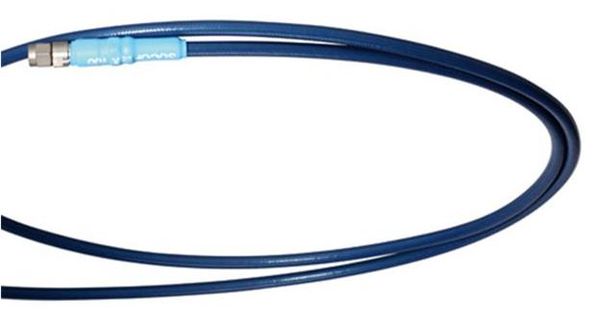

Data Sheet SUCOFLEX Stock Assembly Description The SUCOFLEX 126 E high end cable assemblies are designed to provide optimal performance up to 18 GHz were stringent electrical requirements in particular stability and low loss, are important. Product description SF126E/SMAm/SMAm/500mm Item number 85072824 Product Configuration Cable type SUCOFLEX 126 E Length of assembly 500 mm Connector A SMA straight male Connector B SMA straight male Technical Data Mechanical Data Diameter: 5.5 mm Min. bending radius static 16 mm Min. bending radius repeated 25 mm Recommended mating torque (*) 0. 81.1 Nm Weight 53 g Environmental Data Operating temperature - 40C to + 85C Storage temperature - 40C to + 85C RoHS, REACH Compliant Electrical Data Impedance 50 Operating frequency up to 18 GHz Velocity of propagation 77 % Capacitance 87 pF / m Time delay 4.3 ns / m Return Loss min. 19.0 dB (up to 18 GHz) Insertion loss (assembly) max. 0.82 dB (18 GHz, 25C) Power handling min. 160 W (18 GHz, sea level, 25C) Insertion loss stability vs. bending (**) +/- 0.2 dB (up to 18 GHz) Phase stability vs. bending (**) < 0.9 (el/GHz) General Information (*) H+S torque wrench H+S description: 74 Z-0-0-21 // material/item number: 22543130 (**) Stability test 360, diameter 55 mm HUBER+SUHNER is certified according to ISO 9001, ISO 14001, ISO/TS 16949 and IRIS www.hubersuhner.com Waiver: It is exclusively in written agreements that we provide our customers with warrants and representations as to the technical specifications and/or the fitness for any particular purpose. The facts and figures contained herein are carefully compiled to the best of our knowledge, but they are intended for general information purposes only. Document: DOC-xxxxxxxx date of publication: 01.03.2016 uncontrolled copy Page 1/1 X-ON Electronics Largest Supplier of Electrical and Electronic Components Click to view similar products for Huber & Suhner manufacturer: Other Similar products are found below : 3402.17.A 31 MMBX-SMA-50-1/111 NE 74Z-0-23-17 65 SMA-50-0-1/111 NE 32 MMBX-50-0-6 / 111 NE Mini141 K-16 7404.17.0003 33 N-SMA-50-51/1-- UE 76 Z-0-2-1 Minibend L-13 Microbend MTR-11 16 N-50-3-103/133 NE Microbend R-4.5 74 Z-0-0-53 85 SMC-50-0-1/133 NE 31 PC35-50-0-2/199 NE 65 BNC-50-0-2/133 NE 1399.17.0125 76 Z-0-4-1 80346275 11 C-50-7-6/133 NE 6620 SMA-50-2/199 NE Minibend R-5.5 11 SMB-50-2-41/111 NE Mini141 K-8 74 Z-0-0-246 22 BNC-50-0-5/133 NE 6500 N-50- 1/199 NE 6560.17.AA 3401.17.0033 11 N-50-2-1/133 NE 3401.00.0022 74 Z-0-0-142 11 QLA-01-2-8/122 NE 34 BNC-50-0-6/100 NE 74 Z-0-0-59 Minibend R-6.5 21 N-75-4-8/133 NE 24 BNC-75-2-1/133 NE 24 H4-50-3-1/133 NE Minibend-14 31 SHV-50-0-1/133 NE 23 SK-50-0-52/199 NE 74 Z-0-0-214 23 BNC-50-0-2/133 NE 74 Z-0-0-60 33 SK-PC24-50-1/199 NE 24 N-50-7-8/133 NE 74 Z-0-0- 157 6810 N-50-1/1-- NE
