22mm - TW Series
Switches & Pilot Devices

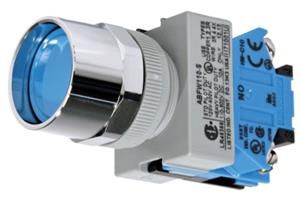

TW Series 22mm NEMA Style Pushbuttons
Key features:
TW NEMA Style Switches with snap-on contacts IDEC has your 22mm switching needs covered.
Corrosion resistant octagonal chrome plated locking bezel
Button styles include ush, extended, mushroom, or square and all bodies are
Snap-on 10A contact blocks
crafted from fracture-resistant nylon.
LED illumination
All illuminated units feature two lens styles, one that maximizes light dispersion,
Slow make, double break, contacts
the other accommodates direct lens engraving.
Modular construction for maximum exibility
Contact mechanism allow for a wide current rating, 5mA to 10A, which reduces
Type 4X and IP65 watertight/oiltight panel
the need for various contact materials.
Available assembled or as sub-components
When looking for a 22mm switch that is durable, easy to use, and versatile, then
Finger-Safe - Spring-Up
IDECs TW series is your solution.
Large M3.5 screw terminals with captive sems plate
UL Listed CSA Approved
Certicate No.
File No. DK95-01696
File No. E68961 File No. LR21451
2030010305027380
1804091617
800-262-IDEC (4332) USA & Canada
67122mm - TW Series
Switches & Pilot Devices
Conforming to Standards EN60947-1, EN60947-5-1, VDE0660-200, UL508, CSA C22-2 No.14
Approvals
CSA: pushbuttons and selector switches: A600 pilot lights and illuminated pushbuttons, direct supply pilot lights and illuminated pushbuttons with
Certicate No.
File No. E68961
File No. LR21451
integral transformer (100/110, 115, 120, 200/220, 230, 240, 380, 400/440, 480V)
2030010305027380
UL: pushbuttons and selector switches: A600 pilot lights and illuminated pushbuttons, direct supply pilot lights and illuminated pushbuttons with
integral transformer (100/110, 115, 120, 200/220, 230, 240, 380, 400/440, 480V)
TV: pushbuttons and selector switches: A600=P600 (NO, NC)/Q600 (NO-EM, NC-LB) pilot lights and illuminated pushbuttons, direct supply pilot
lights and illuminated pushbuttons with integral transformer (100/110, 115, 120, 200/220, 230, 240, 380, 400/440, 480V)
Registration No: J9551802 (E-Stops)
Registration No: J9551803 (All other switches)
Registration No: J9551804 (Pilot Lights)
Operating Temperature Operation: 25 to +50C (without freezing), Storage: 40 to +80C (without freezing)
2
Vibration Resistance 5 to 55Hz, 100m/sec (10g) conforming to IEC6068-2-6
2
Shock Resistance 1000m/sec (100g) conforming to IEC6068-2-7
Electric Shock Protection Class 2 conforming to IEC60664-7
Degree of Protection IP65 from front of the panel; (IP54 for key switches)
(conforming to IEC60529) IP20 (Type HW-U contact block)
(conforming to NEMA ICS6-110) Type 1, 2, 3, 3R, 3S, 4, 4X, 5, 12, 13 (Type 1, 2, 3R, 5, 12, 13 for key switches)
Momentary pushbuttons: 5,000,000 (1800 operations per hour)
Mechanical Life
All other switches: 500,000
Pollution Degree (conforming to IEC60947-1) 3
AC-15: A600 or Ue = 250V, le = 3A (NO, NC, NO-EM, NC-LB)
Rated Operational Characteristics DC-13: P600 or Ue = 125V, le = 1.1A (NO, NC)
DC-13: Q600 or Ue = 125V, le = 0.9A (NO-EM, NC-LB)
Rated Insulation Voltage 600V
Rated Switching Over-Voltage Less than 4kV, conforming to IEC60947-1
Rated Impulse Withstanding Voltage 4kV for contact circuit, 2.5kV for lamp circuit
Rated Thermal Current 10 Amp
Minimum Switching Capacity 5 mA at 3V AC/DC
Contact Operation Slow break NC or slow make NO, self-cleaning
Recommended Tightening
Unit Wire Number of Wires Terminal Screw
Torque (Nm)
Crimping Terminal 2 1.0 to 1.3
0.5 to 1.6 mm (AWG14 to 22) 2 1.0 to 1.3
Solid Wire
HW-U Contact Block 1.7 to 2.0 mm (AWG12) 1 1.2 to 1.3 M3.5
Recommended Terminal Torque 2
0.3 to 2.0 mm (AWG14 to 22) 2 1.0 to 1.3
Stranded Wire
2
2.1 to 3.5 mm (AWG12) 1 1.2 to 1.3
Crimping Terminal
Solid Wire 0.5 to 1.6 mm (AWG14 to 22)
Illuminated Unit (*1) 2 1.0 to 1.3 M3.5
Stranded Wire 0.3 to 2.0 mm (AWG14 to 22)
Crimping Terminal
0.6 to 1.0 (M3.0)
Applicable Wire Size Pilot Light Solid Wire 0.5 to 1.6 mm (AWG14 to 22) 2
1.0 to 1.3 (M3.5)
Stranded Wire 0.3 to 2.0 mm (AWG14 to 22)
1. * refers to the lamp terminals of the illuminated push buttons and selector switches.
External Short-Circuit Protection 10A 250V fuse conforming to IEC60269-1
Applicable Wire Size Minimum 1 x 22 AWG, max. 2 x 14 AWG or 1 x 12 AWG
Contact Resistance Initial contact resistance of 50m or less
Contact Gap 4mm (NO and NC), 2mm (NO-EM and NC-LB)
Electrical Reliability MTBF < 1 fault for 10 million operation cycles (3V DC, 5mA)
Lamp Ratings LEDs: 6V: 17mA max, 12/24V: 11mA max, 120/240V: 10mA max
Horsepower Rating 1/4 HP @ 120V (single-phase, non-reversing motor); 1 HP @ 240V (3 phase, non-reversing motor)
Contact Material Silver
Contact Block Type HW-U
Pushbuttons
Rated Insulation Voltage 600V
Illuminated Pushbuttons
Selector Switches
Rated Continuous Current 10A
Illuminated Selector Switches
Pushbutton Selectors
Contact Ratings by Utilization Category AC-15 (A600)
IEC 60947-5-1 DC-13 (P600)
Contact Ratings by Utilization Category
Operational Voltage 24V 48V 50V 110V 220V 440V
AC-12 Control of resistive loads and solid state loads 10A 10A 10A 6A 2A
AC50/60Hz
AC-15 Control of electromagnetic loads (> 72VA) 10A 7A 5A 3A 1A
Operational Current
DC-12 Control of resistive loads and solid state loads 10A 5A 2.2A 1.1A
DC
DC-13 Control of electromagnets 5A 2A 1.1A 0.6A
1804091617
www.IDEC.com
672
