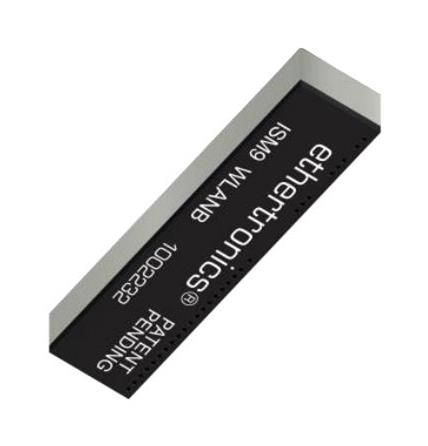

DATASHEET Part No. 1002232 Product: ISM & WLAN FR4 Embedded Antenna Part No. 1002232 ISM & WLAN FR4 Embedded Antenna 868 MHz, 915 MHz, 2.4 GHz Supports: WLAN applications, Agriculture, Automotive, Bluetooth, Tracking, Smart Home, Healthcare, Digital Signage, LoRa, Sigfox Ethertronics 1002232 FR4 antenna delivers the device designers key needs for higher functionality and performance in smaller/thinner designs. This innovative antenna provides compelling advantages for all ISM and WLAN enabled devices. Unique Form Factors Support Advanced Industrial Designs ISM & WLAN FR4 Embedded Smaller, more efficient on-board embedded antennas break through Antenna restrictive design rules and provide new freedom in component placement. Electrical Specifications 863-928 MHz, 2.400 - 2500 GHz Typical performance on 110 x 50 mm PCB in free space. ISM EU ISM US WLAN Frequency 863 - 870 MHz 902 - 928 MHz 2400 - 2500 MHz KEY BENEFITS Peak Gain 0.51 dBi 0.21 dBi 1.5 dBi Versatile Antenna Average 1002232 can be used to support 63% 60% 59% Efficiency ISM and WLAN combined, allowing reduced BOM VSWR Match 2.0:1 max complexity while maintaining great performances. Feed Point 50 ohms unbalanced Quicker Time-to-Market Impedance By optimizing antenna size, Polarization Linear performance and emissions, customer and regulatory Power Handling 2 Watt CW specifications are more easily met. Mechanical Specifications & Ordering Part Number Reliability Ordering Part Number 1002232 Products are the latest RoHS version compliant. Size (mm) 35.0 x 9.0 x 3.2 APPLICATIONS Weight (grams) 2.0 Embedded Telematics design Tracking Mounting SMT (P&P) Cellular, Healthcare Headsets, M2M, Tape & Reel, Tablets Industrial Packaging 5,600 pieces per box, 1,120 per reel Gateway, devices Access Smart Grid Demo Board 1002232-01 Point OBD-II SRD868 www.ethertronics.com 9/19/2019 ProprietaryDATASHEET Part No. 1002232 ISM / WLAN FR4 Ethertronics Antenna Specifications Ethertronics produces a wide variety of standard and custom antennas to meet user needs. Antenna Dimensions (1002232) Typical antenna dimensions (mm) Part Number A (mm) B (mm) C (mm) 1002232 35.0 0.3 9.0 0.2 3.2 0.3 A B C Pin 4 Pin 3 Pin 2 Pin 1 Pin 5 Pin Description Feed 1 Ground 2 Dummy Pad 3 Dummy Pad 4 Dummy Pad 5 tel +(1) 858.550.3820 fax +(1) 858.550.3821 email: eth.info avx.com 2019 Ethertronics 5501 Oberlin Drive, Suite 100 San Diego, CA 92121 - USA
