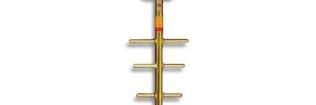

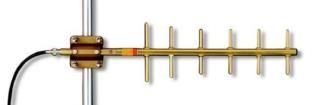

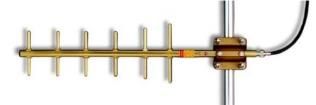

DIRECTIONAL YAGI ANTENNAS Y(B)8966 GOLD SERIES DIRECTIONAL YAGI ANTENNAS PROVIDE INDUSTRY-LEADING DESIGN FEATURES WITH LONG TERM OPTIMAL PERFORMANCE Laird premium series directional Yagi antennas are fully gold anodized for corrosion resistance. All UHF and above frequency antennas feature internal matching to assure broad bandwidth and resistance to severe weather conditions. There is no gamma match to ice up, corrode or detune. Our engineering staff has optimized the product family for forward gain by computer analysis and then field-tested each for conformance. FEATURES AND BENEFITS: APPLICATIONS: All UHF and higher frequency antennas feature 360 Point-to-point and multi-point / omnidirectional welds around each element and an end-of- outdoor antennas applications used by boom N connector feed with an internal private organizations and government transmission line feeding the driven element. agencies around the globe. Every Yagi is tuned on a network analyzer for Typical applications include transportation such best power match and lowest VSWR. as railroad switching, remote locations reporting All Yagi antennas ship complete with a high examples that include oil fields, weather conditions quality cast aluminum mounting kit that includes and, meter data transmissions for utilities. stainless steel hardware and allows vertical or horizontal orientation during installation (VHF models require light assembly). Electrical Mechanical Material Frequency Range 896 970 MHz Aluminum Length Frequency Bandwidth 27.688 74 MHz Height 6.75 VSWR < 2:1 Boom Diameter .875 Return Loss -10 dB max Weight 3.9 lbs Nominal Gain 9 dBd Rated Wind Velocity 150 mph (241 kph) Front to Back Ratio 20 dBd Rated Wind Velocity Maximum Power 300 W 80 mph (130 kph) (with 0.5 radial ice) Nominal Impedance 50 Equivalent Flat Area 0.2492 sq. ft. Vertical or Polarization Cable None Horizontal Termination N-Female connector Pattern Directional Color Gold or Black Anodized Horizontal Beamwidth 56 (For Horizontal Polarization) Lightning Arrestor Lightning Protection Vertical Beamwidth LABH350NN (Sold Separately) 52 (For Vertical Polarization) Heavy duty cast aluminum Tuning Fixed Mounting Included bracket accommodates up Transmitting/Receiving Both to 2-1/2 mast Vertical-to-Vertical Horizontal-to-Horizontal Polarization Polarization Azimuthal Pattern Azimuthal Pattern (Y, Z, or E-plane) (Y, Z, or H-plane) Normalized to 9 dBd Normalized to 9 dBd Americas: +1.847 839.6907 Normalized to 9 dBd Normalized to 9 dBd IAS-AmericasEastSales lairdtech.com Europe: +44.1628.858941 ANT-DS-Y(B)8966 1015 IAS-EUSales lairdtech.com Asia: +86.21.5855.0827.127 Any information furnished by Laird Inc. and its agents is believed to be accurate and reliable. All specifications are subject to change without notice. Responsibility for the use and application of Laird materials rests with the end user, since Laird and its agents cannot be aware of all potential uses. Laird makes no warranties as to the fitness, merchantability or IAS-AsiaSales lairdtech.com suitability of any Laird materials or products for any specific or general uses. Laird shall not be liable for incidental or consequential damages of any kind. All Laird products are sold pursuant to the Laird Terms and Conditions of sale in effect from time to time, a copy of which will be furnished upon request. Copyright 2015 Laird Inc. All Rights Reserved. Laird, Laird Technologies, the Laird Logo, and other marks are trade marks or registered trade marks of Laird Inc. or an affiliate company thereof. Other product or service names may be the www.lairdtech.com property of third parties. Nothing herein provides a license under any Laird or any third party intellectual property rights. X-ON Electronics Largest Supplier of Electrical and Electronic Components Click to view similar products for Antennas category: Click to view products by Laird Connectivity manufacturer: Other Similar products are found below : GAN30084EU 930-033-R GW17.07.0250E 1513563-1 EXE902SM APAMPG-117 MAF94383 W3908B0100 W6102B0100 YE572113- 30RSMM 108-00014-50 66089-2406 SPDA17RP918 A09-F8NF-M A09-F5NF-M RGFRA1903041A1T W3593B0100 W3921B0100 SIMNA-868 SIMNA-915 SIMNA-433 W1044 W1049B090 A75-001 WTL2449CQ1-FRSMM CPL9C EXB148BN 0600-00060 TRA9020S3PBN-001 Y4503 GD5W-28P-NF MA9-7N GD53-25 GD5W-21P-NF C37 MAF94051 MA9-5N EXD420PL B1322NR QWFTB120 MAF94271 MAF94300 GPSMB301 FG4403 AO-AGSM-OM54 5200232 MIKROE-2349 WCM.01.0111 MIKROE-2393 MIKROE-2352
