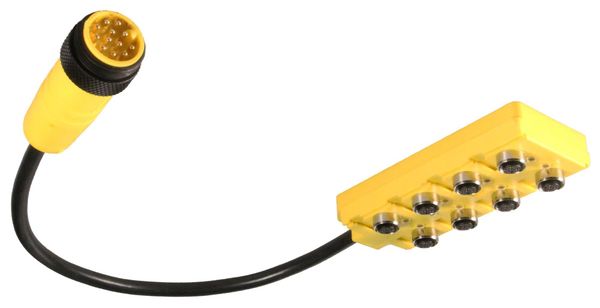

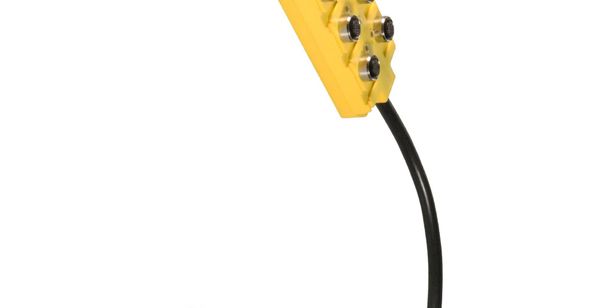

M12 Actuator/Sensor Distribution Boxes 4-Ports 4- and 8-Ports (LED) ASB 4/LED - RS120M ASB 8/LED - RS120M Actuator/sensor distribution box with LED operation and function indicators, top-entry, 4- and 8-ports, M12 sockets, 4-poles, 1 signal per socket, with integrated Mini quick disconnect home run control cable. control cable is suitable for c-track applications Pin Assignments M12 / Mini 1 1/8 Wiring Diagrams 4-Ports 8-Ports 1 = 12 (+) 1 = 12 (+) 3 = 10 ( -) 3 = 10 ( -) 4 = 1 (7) 4 = 1 (7) 2 (6) 2 (6) 3 (5) 3 (5) 4 (4) 4 (4) 5 = 9 (gnd) 5 (3) 6 (2) 7 (1) 8 (8) 5 = 9 (gnd) 1-717-217-2299 www.lumberg-automationusa.com 30Distribution Boxes Distribution Boxes Be Certain with Belden M12 Actuator/Sensor Distribution Boxes ASB 4/LED 5-4-328/RS120M ASB/LED 8 5-4-331/RS120M 8-Ports Technical Data Environmental Degree of protection IP 67 / NEMA 6P Operating temperature range -15C (+5F) / +80C (+176F) Mechanical Housing PUR, yellow Insert Nylon Contact CuZn, gold plated Receptacle shell CuZn, nickel-plated O-ring FKM Mini Quick Disconnect Molded body PUR, yellow Insert PUR, yellow Contact CuZn, gold plated Coupling nut Aluminum, black anodized Electrical Contact resistance 5m Voltage rating 10-30 V DC Current rating 4 A per port / 12 A max. total 9 Insulation resistance > 10 Accessories (included) ZVK 2 dust covers for unused sockets ZBS 10 attachable labels Cable Specifications Cable No. Outer Jacket Conductor Size Color Outside Diameter 2 328 PUR, halogen-free 3 x 0.75 mm Black .268 (6.8 mm) 2 4x 0.34 mm 2 331 PUR, halogen-free 3 x 0.75 mm Black .315 (8.0 mm) 2 8 x 0.34 mm Part Number Ports Cable Length Characteristics ASB 4/LED 5-4-328/RS120M 4 1F ASB 8/LED 5-4-331/RS120M 8 1F www.lumberg-automationusa.com 1-717-217-2299 31
