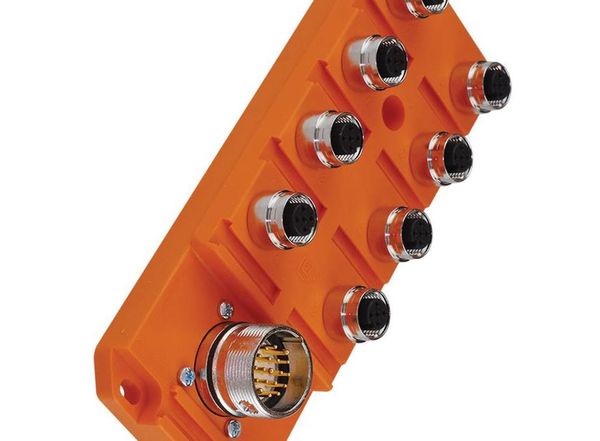

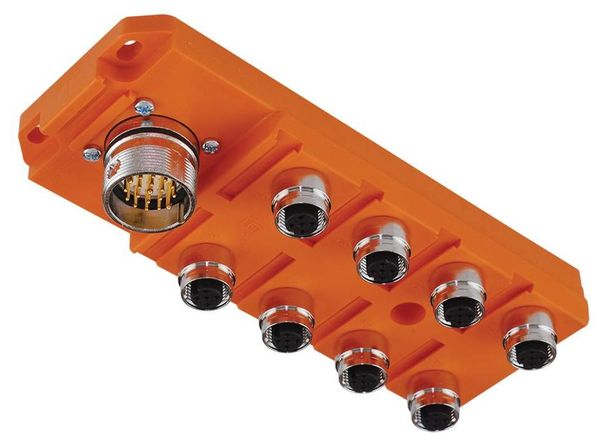

M12 Actuator/Sensor Distribution Boxes 6-Ports 4-, 6-, and 8-Ports ASBSV Pluggable actuator/sensor distribution box, 4-, 6-, and 8-ports, top-entry, M12 sockets, 5-poles, 2 signals per socket, with M23 quick- disconnect for the control cable. control cable type: 19P: RKU 19-242/...M or RKWU 19-242/...M 4-Ports Pin Assignments M12 / M23 Wiring Diagrams 5 P / 19 P 4-Ports 6-Ports 8-Ports 1 = 19 (C1) 1 = 19 (C1) 1 = 19 (C1) 2 = 1 (7) 2 = 1 (7) 2 = 1 (7) 2 (4) 2 (4) 2 (4) 3 (8) 3 (8) 3 (8) 4 (14) 4 (14) 4 (14) 3 = 6 (C3) 5 (9) 5 (9) 4 = 1 (15) 6 (13) 6 (13) 2 (5) 3 = 6 (C3) 7 (10) 3 (16) 4 = 1 (15) 8 (18) 4 (3) 2 (5) 3 = 6 (C3) 5 = 12 (PE) 3 (16) 4 = 1 (15) 4 (3) 2 (5) 5 (17) 3 (16) 6 (2) 4 (3) 5 = 12 (PE) 5 (17) 6 (2) 7 (11) 8 (1) 5 = 12 (PE) 1-717-217-2299 www.lumberg-automationusa.com 48Distribution Boxes Distribution Boxes Be Certain with Belden M12 Actuator/Sensor Distribution Boxes ASBSV 4 5 ASBSV 6 5 ASBSV 8 5 8-Ports Technical Data Environmental Degree of protection IP 67 / NEMA 6P Operating temperature range -15C (+5F) / +80C (+176F) Mechanical Housing TPU, self-extinguishing Insert PA GF, self-extinguishing Contact CuZn, pre-nickeled and 0.8 microns gold-plated Receptacle shell CuZn, nickel-plated O-ring FKM Electrical Contact resistance 5m Voltage rating 250 V Current rating 4 A per port / 10 A max. total 9 Insulation resistance > 10 Accessories (included) ZVK 2 dust covers for unused sockets ZBS 10 attachable labels Part Number Ports Mating Control Cables Characteristics ASBSV 4 5 4 RKU 19-242/...M or RKWU 19-242/...M ASBSV 6 5 6 RKU 19-242/...M or RKWU 19-242/...M ASBSV 8 5 8 RKU 19-242/...M or RKWU 19-242/...M www.lumberg-automationusa.com 1-717-217-2299 49
