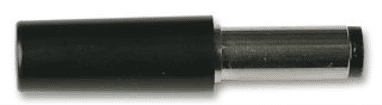

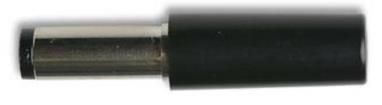

Netzgerte-Steckverbinder Power supply connectors Connecteurs dalimentation NES/J 250 Netzgertestecker, lange, gerade Ausfhrung, mit Ltaugen 1. Temperaturbereich -20 C/+70 C 2. Werkstoffe Kontakttrger PC Kontakt CuZn, vernickelt Isolierung ABS/PVC Gehuse ABS 3. Mechanische Daten Auendurchmesser 5,5 mm Innendurchmesser 2,5 mm Kontaktierung mit Netzgertekupplungen 1610 01, 1613 15, 1613 21, 1614 10, 1614 15, NEB/J 25, NEB/J 25 C, NEB/J 25 R, NEK/J 250 4. Elektrische Daten Strombelastbarkeit 1 A Nennspannung 12 V DC Prfspannung 500 V/60 s Isolationswiderstand 100 M NES/J 250 Power supply plug, long, straight version, with solder eyes 1. Temperature range -20 C/+70 C 2. Materials Insulating body PC Contact CuZn, nickeled Insulation ABS/PVC Housing ABS 3. Mechanical data Outer diameter 5.5 mm Inner diameter 2.5 mm Mating with power supply sockets 1610 01, 1613 15, 1613 21, 1614 10, 1614 15, NEB/J 25, NEB/J 25 C, NEB/J 25 R, NEK/J 250 4. Electrical data Nominal power 1 A Nominal voltage 12 V DC Test voltage 500 V/60 s Insulation resistance 100 M NES/J 250 Connecteur mle dalimentation, version longue, droite, avec cosses souder 1. Temperature range -20 C/+70 C 2. Materials Corps isolant PC Contact CuZn, nickel Isolement ABS/PVC Botier ABS 3. Caractristiques mcaniques Diamtre extrieur 5,5 mm Diamtre intrieur 2,5 mm Raccordement avec connecteurs femelles dalimentation 1610 01, 1613 15, 1613 21, 1614 10, 1614 15, NEB/J 25, NEB/J 25 C, Bestellbezeichnung Polzahl Verpackungseinheit NEB/J 25 R, NEK/J 250 Designation Poles Package unit Dsignation Ples Unit demballage 4. Caractristiques lectriques NES/J 250 2 100 Courant nominal 1 A Tension nominale 12 V DC Prfspannung 500 V/60 s Rsistance disolement 100 M Verpackung: lose im Karton oder Kunststoffbeutel Packaging: in bulk in a cardboard box or a plastic bag Emballage: en vrac dans un carton ou sachet en plastique wwwwww.lumberg.com.lumberg.com 11/201211/2012X-ON Electronics Largest Supplier of Electrical and Electronic Components Click to view similar products for lumberg manufacturer: Other Similar products are found below : RK20-603/5M ASBSM 10/LED 3 ASBS-R 8/LED 5-4 ASBSV 8 5 BTOR 1 SCHWARZ 18315 0976 PMC 151 KRE8 SBS 4/LED 3 SFV 80 RK30/2M RKWT 4-07/5M ASBS-R 4 5-4 ASBS-R 4/LED 5-4 BTO 1 SCHWARZ BTO 1 V SCHWARZ BTOR 1 WEISS KB3 KRES10 KRESS8 KS8 KRM 07 0103 03 WKV 81 RK 30-738/20F RKMV 4-225/10 M RKT 5-644/2M RKT 4-679/5M HZ30 ASBS 2 M12-S2326 1614 16 0985 706 100/10M RST 4-RKWT 4-602/1M WKV50 RST 4-633/2M RST 4-RKWT 4-602/3M RS-TU WSV 30 0986 EMC 102 0250 03 RKWT 5-612/5M 0980 ESL 393-121 RST 5L-RKT 5L-949/5 M ASBM 6/LED 3-344/5 M RKT 4-646/2M RKHL 8/S 5,5 0985 YM57530 100/20M 0985 YM57530 500/1M RST 4-RKT 4-637/2M RKT 5L-949/5 M RST 3-RKMV 3-224/2 M
