X-On Electronics has gained recognition as a prominent supplier of 2N3906 across the USA, India, Europe, Australia, and various other global locations. 2N3906 are a product manufactured by Magnatec. We provide cost-effective solutions for 2N3906, ensuring timely deliveries around the world.

2N3906 Magnatec

Name: 2N3906
Brand: Magnatec
SKU: 2N3906_Magnatec
Availability: OutOfStock
Rating: 5 (11 reviews)

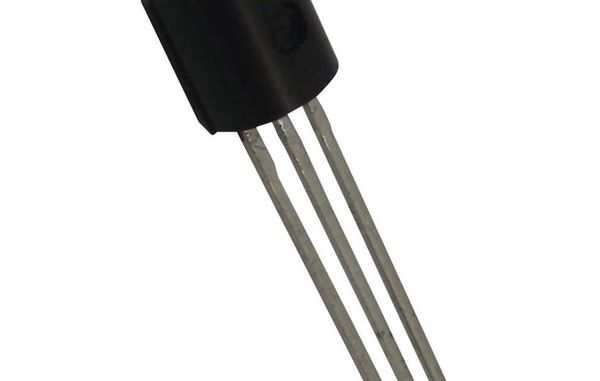

Images are for reference only
See Product Specifications

Part No.	2N3906
Manufacturer:	Magnatec
Category:	Unclassified
Description:	TRANSISTOR, PNP, 40V, TO-92
Datasheet:	2N3906 Datasheet (PDF)
	Large This product is classified as Large/Heavy, additional shipping charges may apply. A customer service representative may contact you after ordering to confirm exact shipping charges

Price (USD)

5: USD 0.3165 ea
Line Total: USD 1.58

Availability - 0

MOQ: 5 Multiples: 1
Pack Size: 1

2N3906 More Buying Options & Price Grid(s)

Availability	Price	Buy Price	Quantity
0 Ship by Mon. 10 Mar to Fri. 14 Mar MOQ : 5 Multiples : 1	5 : USD 0.3165 10 : USD 0.2348 100 : USD 0.1748 500 : USD 0.1507 1000 : USD 0.1332 5000 : USD 0.1081

Specifications

Manufacturer Magnatec Magnatec
Product Category Unclassified Unclassified
Brand Magnatec Magnatec
Transistor Polarity PNP PNP
Collector Emitter Voltage Vbrceo 40 V 40 V
Transition Frequency Ft 250Mhz 250Mhz
Power Dissipation Pd 625 mW 625 mW
Dc Collector Current - 200 mA - 200 mA
Dc Current Gain Hfe 100hFE 100hFE
Transistor Case Style TO - 92 TO - 92
No. Of Pins 3Pins 3Pins
Operating Temperature Max 150 C 150 C
Msl MSL 1 - Unlimited MSL 1 - Unlimited
Svhc No SVHC (15 - Jan - 2019) No SVHC (15 - Jan - 2019)
Collector Emitter Saturation Voltage Vceon 250 mV 250 mV
Continuous Collector Current Ic Max 200 mA 200 mA
Current Ic @ Vce Sat 10 mA 10 mA
Current Ic Continuous A Max 200 mA 200 mA
Current Ic Fall Time Measurement 10 mA 10 mA
Current Ic Hfe 10 mA 10 mA
Fall Time @ Ic 300Ns 300Ns
Full Power Rating Temperature 25C 25C
Gain Bandwidth Ft Min 250Mhz 250Mhz
Gain Bandwidth Ft Typ 250Mhz 250Mhz
Hfe Min 100 100
No. Of Transistors 1 1
Operating Temperature Min - 55 C - 55 C
Operating Temperature Range - 55 C To + 150 C - 55 C To + 150 C
Pin Configuration B B
Power Dissipation Ptot Max 625 mW 625 mW
Termination Type Through Hole Through Hole
Voltage Vcbo 40 V 40 V
