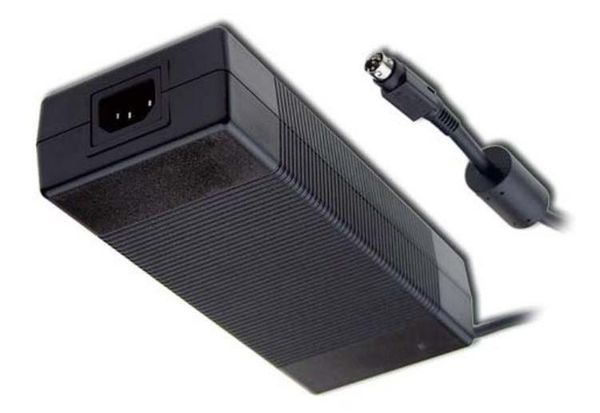

220W AC-DC High Reliability Industrial Adaptor G ST220A series File Name:GST220A-SPEC 2016-03-16220W AC-DC High Reliability Industrial Adaptor G ST220A series SPECIFICATION ORDER NO. GST220A12-R7B GST220A15-R7B GST220A20-R7B GST220A24-R7B GST220A48-R7B SAFETY MODEL NO. GST220A12 GST220A15 GST220A20 GST220A24 GST220A48 DC VOLTAGE Note.2 12V 15V 20V 24V 48V RATED CURRENT 15A 13.4A 11A 9.2A 4.6A CURRENT RANGE 0 ~ 15A 0 ~ 13.4A 0 ~ 11A 0 ~ 9.2A 0 ~ 4.6A RATED POWER (max.) 180W 201W 220W 221W 221W RIPPLE & NOISE (max.) Note.3 80mVp-p 100mVp-p 150mVp-p 180mVp-p 240mVp-p OUTPUT VOLTAGE TOLERANCE Note.4 5.0% 5.0% 4.0% 3.0% 2.0% LINE REGULATION Note.5 1.0% 1.0% 1.0% 1.0% 1.0% LOAD REGULATION 5.0% 5.0% 4.0% 3.0% 2.0% SETUP, RISE TIME Note.6 2000ms, 50ms / 230VAC 2000ms, 50ms / 115VAC at full load HOLD UP TIME (Typ.) 20ms / 230VAC 20ms / 115VAC at full load VOLTAGE RANGE Note.7 85 ~ 264VAC 120 ~ 370VDC FREQUENCY RANGE 47 ~ 63Hz POWER FACTOR (Typ.) PF>0.91 / 230VAC PF>0.98 / 115VAC at full load INPUT EFFICIENCY (Typ.) 90% 90% 92% 93.5% 94.5% AC CURRENT (Typ.) 4A / 115VAC 2A / 230VAC INRUSH CURRENT (max.) 120A / 230VAC LEAKAGE CURRENT(max.) 0.75mA / 240VAC 105 ~ 135% rated output power OVERLOAD Protection type : Hiccup mode, recovers automatically after fault condition is removed PROTECTION 105 ~ 135% rated output voltage OVER VOLTAGE Protection type : Hiccup mode 10%load Shut down o/p voltage, recovers automatically after temperature goes down OVER TEMPERATURE -30 ~ +70 (Refer toDerating Curv) WORKING TEMP. WORKING HUMIDITY 20% ~ 90% RH non-condensing STORAGE TEMP., HUMIDITY -40 ~ +85, 10 ~ 95% RH ENVIRONMENT TEMP. COEFFICIENT 0.03% / (0~50) VIBRATION 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes UL60950-1, CSA C22.2, TUV EN60950-1, BSMI CNS14336, CCC GB4943, PSE J60950-1 ,AS/NZS 60950.1 approved SAFETY STANDARDS WITHSTAND VOLTAGE I/P-O/P: 3KVAC I/P-FG: 2KVAC O/P-FG:SHORT SAFETY & ISOLATION RESISTANCE I/P-O/P:100M Ohms / 500VDC / 25/ 70% RH EMC (Note. 8) Compliance to EN55022 class B, EN61000-3-2,3, FCC PART 15 / CISPR22 class B, CAN ICES-3(B)/NMB-3(B),CNS13438 class B, GB9254, GB17625.1 EMC EMISSION Compliance to EN61000-4-2,3,4,5,6,8,11, light industry level, criteria A EMC IMMUNITY MTBF 209.4K hrs min. MIL-HDBK-217F(25) DIMENSION 210*85*46mm (L*W*H) OTHERS PACKING 1.1Kg 12pcs/14.2Kg/0.96CUFT PLUG See page 3 Other type available by customer requested CONNECTOR See page 3 Other type available by customer requested CABLE NOTE For guidance on how to perform these EMC tests, please refer to EMI testing of component power supplies. (as available on
