1000-761 Megger

Name: 1000-761
Brand: Megger
SKU: 1000761_Megger
Availability: OutOfStock
Rating: 5 (11 reviews)

Images are for reference only
See Product Specifications

Part No.	1000-761
Manufacturer:	Megger
Category:	Clamp Multimeters & Accessories

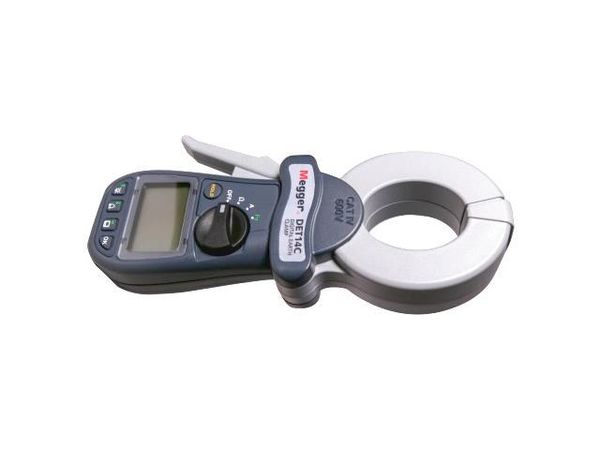

Description:	Clamp ground resistance meter; LCD 4 digits; 16÷400Hz; IP30
Datasheet:	1000-761 Datasheet (PDF)
	Large This product is classified as Large/Heavy, additional shipping charges may apply. A customer service representative may contact you after ordering to confirm exact shipping charges

Price (USD)

1: USD 2148.3051 ea
Line Total: USD 2148.31

Availability - 0

MOQ: 1 Multiples: 1
Pack Size: 1

1000-761 More Buying Options & Price Grid(s)

Availability	Price	Buy Price	Quantity
0 Ship by Mon. 23 Dec to Wed. 25 Dec MOQ : 1 Multiples : 1	1 : USD 2148.3051

Specifications

Manufacturer Megger Megger
Product Category Clamp Multimeters & Accessories Clamp Multimeters & Accessories
Category Clamp Multimeters & Accessories Clamp Multimeters & Accessories
Ip Rating IP30 IP30
Measuring Instrument Features autoranging, automatic power - off, automatic calibration, real time clock, HOLD function autoranging, automatic power - off, automatic calibration, real time clock, HOLD function
Conform To The Norm EN61010 600V CAT IV EN61010 600V CAT IV
Standard Equipment carrying strap, users manual carrying strap, users manual
Kind Of Display Used LCD 4 digits LCD 4 digits
True Effective Value Measurement True RMS True RMS
Measurement AC current, earthing resistance AC current, earthing resistance
Max. Diameter Of Measured Cable 39 mm 39 mm
Operating Temperature - 20 To 50 C - 20 To 50 C
Dimensions 248x114x49mm 248x114x49mm
Resistance Measuring Range 50 To 990 mOhms , 1 To 9.99 Ohms , 10 To 99.9 Ohms , 100 To 199.9 Ohms , 200 To 400 Ohms , 400 To 600 Ohms , 1.2 To 1.5 kOhms hms , 600 To 1200 Ohms 50 To 990 mOhms , 1 To 9.99 Ohms , 10 To 99.9 Ohms , 100 To 199.9 Ohms , 200 To 400 Ohms , 400 To 600 Ohms , 1.2 To 1.5 kOhms hms , 600 To 1200 Ohms
Bandwidth For Ac Current Measurements 16 To 400Hz 16 To 400Hz
Ac Current Measuring Range 500 To 990 uA , 1 To 9.99 mA , 10 To 99.9 mA , 100 To 999 mA , 1 To 9.99 A , 10 To 35 A 500 To 990 uA , 1 To 9.99 mA , 10 To 99.9 mA , 100 To 999 mA , 1 To 9.99 A , 10 To 35 A
Weight 985 g 985 g
Resistance Measuring Accuracy ± (1 , 5 % + 0 , 05 Ohms) ± (1 , 5 % + 0 , 05 Ohms)
Ac Current Measuring Accuracy (2 % + 0 , 05 A) (2 % + 0 , 05 A)
Type Of Meter clamp ground resistance meter clamp ground resistance meter
Power Supply b A ttery LR6 A A 1 , 5 V x4 b A ttery LR6 A A 1 , 5 V x4
Battery/ Rechargeable Battery battery LR6 AA 1 , 5V x4 battery LR6 AA 1 , 5V x4
Measurement Memory 256 256

We are delighted to provide the 1000-761 from our Clamp Multimeters & Accessories category, at competitive rates not only in the United States, Australia, and India, but also across Europe and beyond. A long established and extensive electronic component distribution network has enhanced our global reach and dependability, ensuring cost savings through prompt deliveries worldwide. Client satisfaction is at the heart of our business, where every component counts and every customer matters. Our technical service team is ready to assist you. From product selection to after-sales support, we strive to deliver a seamless and satisfying experience. Are you ready to experience the best in electronic component distribution? Contact X-ON Electronics today and discover why X-On are a preferred choice for the 1000-761 and other electronic components in the Clamp Multimeters & Accessories category and beyond.
