1013-099 Megger

Name: 1013-099
Brand: Megger
SKU: 1013099_Megger
Availability: InStock
Rating: 5 (11 reviews)

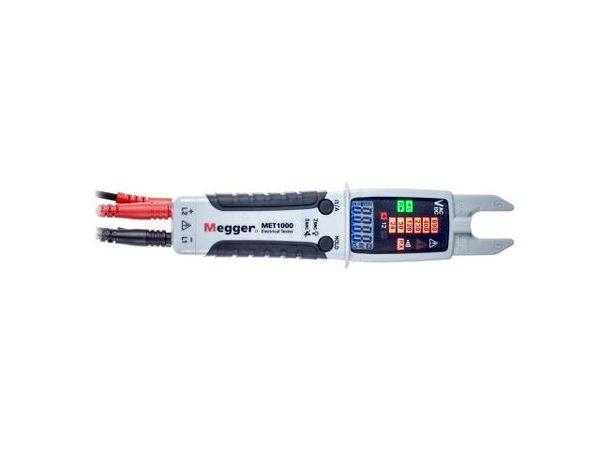

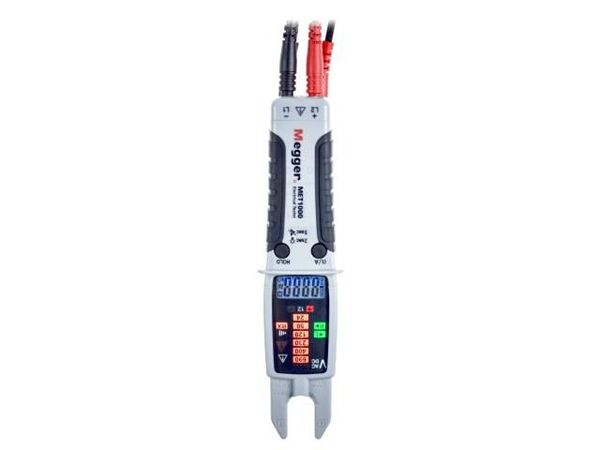

Images are for reference only
See Product Specifications

Part No.	1013-099
Manufacturer:	Megger
Category:	Digital Multimeters
Description:	Tester: electrical; LCD 4 digits (9999),LED; VAC: 6÷999.9V; IP65
Datasheet:	1013-099 Datasheet (PDF)
	Large This product is classified as Large/Heavy, additional shipping charges may apply. A customer service representative may contact you after ordering to confirm exact shipping charges

Price (USD)

1: USD 296.6166 ea
Line Total: USD 296.62

Availability - 1
Ship by Tue. 26 Nov to Thu. 28 Nov

MOQ: 1 Multiples: 1
Pack Size: 1

1013-099 More Buying Options & Price Grid(s)

Please wait...

Availability Price Buy Price Quantity

1

Ship by Tue. 26 Nov to Thu. 28 Nov

MOQ : 1
Multiples : 1

1 : USD 296.6166

Specifications

Manufacturer
Megger Megger

Product Category
Digital Multimeters Digital Multimeters

Category
Digital Multimeters Digital Multimeters

Ip Rating
IP65 IP65

Kind Of Display Used
LED, LCD 4 digits (9999) LED, LCD 4 digits (9999)

Weight
200 g 200 g

Standard Equipment
test leads, bag test leads, bag

Measuring Instrument Features
automatic power - off, HOLD function (for holding display readout), indicates phase sequence automatic power - off, HOLD function (for holding display readout), indicates phase sequence

Sampling
3x/s 3x/s

Conform To The Norm
EN61010 1000V CAT III, EN61010 600V CAT IV EN61010 1000V CAT III, EN61010 600V CAT IV

Ac Voltage Measuring Accuracy
(1 , 5 % + 5 digits) (1 , 5 % + 5 digits)

Dc Voltage Measuring Accuracy
(1 % + 2 digits) (1 % + 2 digits)

Resistance Measuring Accuracy
± (1 , 5 % + 5 digits) ± (1 , 5 % + 5 digits)

Type Of Tester
electric electric

Ac Current Measuring Accuracy
(3 % + 5 digits) (3 % + 5 digits)

Continuity Test
acoustic indication, <1.8kΩ acoustic indication, <1.8kΩ

Measurement
AC voltage, DC voltage, resistance, AC current, phase sequence, continuity, inrush current AC voltage, DC voltage, resistance, AC current, phase sequence, continuity, inrush current

Additional Functions
white LED torch white LED torch

Bandwidth For Ac Voltage Measurements
45 To 400Hz 45 To 400Hz

Ac Current Measuring Range
100 mA To 200 A 100 mA To 200 A

Dc Voltage Measuring Range
7 To 999.9 V 7 To 999.9 V

Ac Voltage Measuring Range
6 To 999.9 V 6 To 999.9 V

Dimensions
220x57x35mm 220x57x35mm

Resistance Measuring Range
1 Ohms To 50 kOhms hms 1 Ohms To 50 kOhms hms

Bandwidth For Ac Current Measurements
45 To 65Hz 45 To 65Hz

Phase-To-Phase Voltage Range For Phase Sequence Indication
90 To 1000 VAC 90 To 1000 VAC

Power Supply
b A ttery LR03 A A A 1 , 5 V x2 b A ttery LR03 A A A 1 , 5 V x2
