31020106 Metz

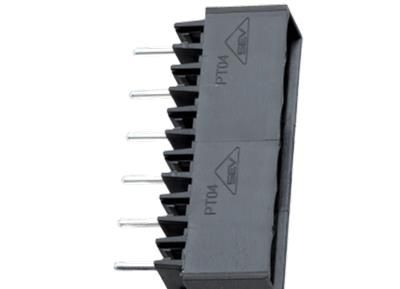

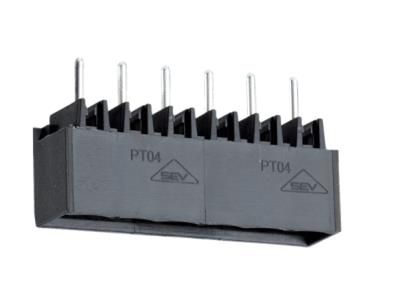

1/5Page P/N Data Sheet 310201xx PT045xxVBBN xx=number of poles 2017/01/24 Illustration see enlarged drawing at the end of the document Product specification pin header, solderable centerline 5.00 mm, direction of connection vertical 0 closed ends color black 2/5Page P/N Data Sheet 310201xx PT045xxVBBN xx=number of poles 2017/01/24 Technical Data General Data Solder pin length 5.2 mm 2 min. number of poles 22 max. number of poles CTI 600 Insulating material class 3.7 mm clearance/creepage dist. IP 00 protection category Overvoltage category III III II Pollution degree 3 2 2 Rated voltage 250 V 630 V 630 V Rated test voltage 4.0 kV 4.0 kV 4 kV Approvals 300 / 15 V / A 10 A / 250 V / 4 kV / 3 / IEC 61984 Material insulating material PA66 V0 flammability class 960 Glow-Wire Flammability GWFI 775 Glow-Wire Flammability GWIT CuZn contact pin material Ni + Ag contact pin surface Climatic properties 105 C upper limit temperature -40 C lower limit temperature General Acc. to JEDEC JESD22-B102E 245C/5s solderability ISO 2768 -mH Tolerance
