1N5804US Microchip

Name: 1N5804US
Brand: Microchip
SKU: 1N5804US_Microchip
Availability: InStock
Rating: 5 (11 reviews)

1N5804US electronic component of Microchip

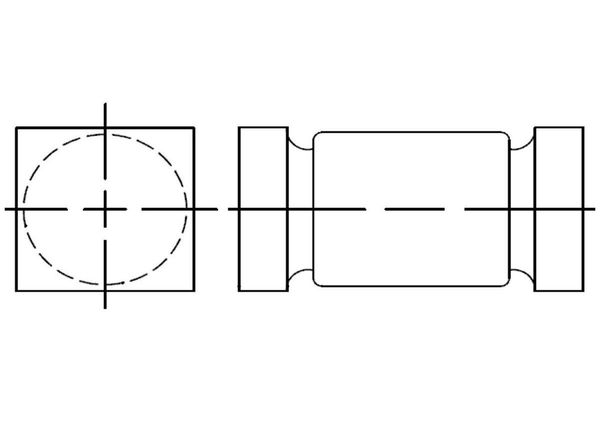

Images are for reference only
See Product Specifications

Part No.	1N5804US
Manufacturer:	Microchip
Category:	Rectifiers
Description:	Rectifiers Ultra Fast Rectifier (less than 100ns)
Datasheet:	1N5804US Datasheet (PDF)
	Large This product is classified as Large/Heavy, additional shipping charges may apply. A customer service representative may contact you after ordering to confirm exact shipping charges

Price (USD)

1: USD 9.493 ea
Line Total: USD 9.49

Availability - 59
Ship by Tue. 28 Jan to Thu. 30 Jan

MOQ: 1 Multiples: 1
Pack Size: 1

1N5804US More Buying Options & Price Grid(s)

Please wait...

Availability Price Buy Price Quantity

152

Ship by Thu. 30 Jan to Wed. 05 Feb

MOQ : 5
Multiples : 1

5 : USD 12.9195
25 : USD 11.5
50 : USD 11.375
100 : USD 10.5125
250 : USD 10.4625
500 : USD 10.4125
1000 : USD 10.35

59

Ship by Tue. 28 Jan to Thu. 30 Jan

MOQ : 1
Multiples : 1

1 : USD 9.493
100 : USD 9.482

Specifications

Manufacturer

Microchip Microchip

Product Category

Rectifiers Rectifiers

RoHS - XON

N N

Mounting Style

Smd/Smt Smd/Smt

Vr - Reverse Voltage

100 V 100 V

If - Forward Current

2.5 A 2.5 A

Type

Fast Recovery Rectifiers Fast Recovery Rectifiers

Vf - Forward Voltage

975 mV 975 mV

Max Surge Current

35 A 35 A

Ir - Reverse Current

1 uA 1 uA

Recovery Time

25 ns 25 ns

Minimum Operating Temperature

- 65 C - 65 C

Maximum Operating Temperature

+ 175 C + 175 C

Packaging

Bulk Bulk

Height

2.62 mm 2.62 mm

Length

5.08 mm 5.08 mm

Operating Temperature Range

- 65 C to + 175 C - 65 C to + 175 C

Product

Rectifiers Rectifiers

Termination Style

Smd/Smt Smd/Smt

Width

2.62 mm 2.62 mm

Brand

Microchip Microchip

Pd - Power Dissipation

- -

Factory Pack Quantity :

100 100

Cnhts

8541100000 8541100000

Hts Code

8541100080 8541100080

Mxhts

85411001 85411001

Product Type

Rectifiers Rectifiers

Subcategory

Diodes & Rectifiers Diodes & Rectifiers

Taric

8541100000 8541100000

Notes:- Show Stocked Products With Similar Attributes.
