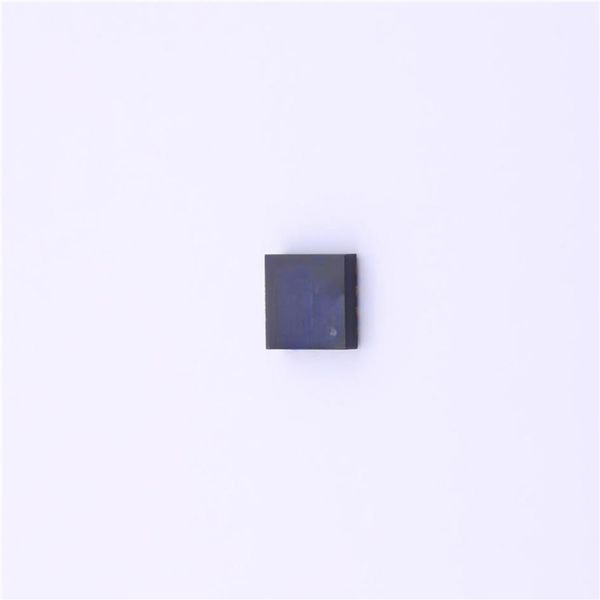

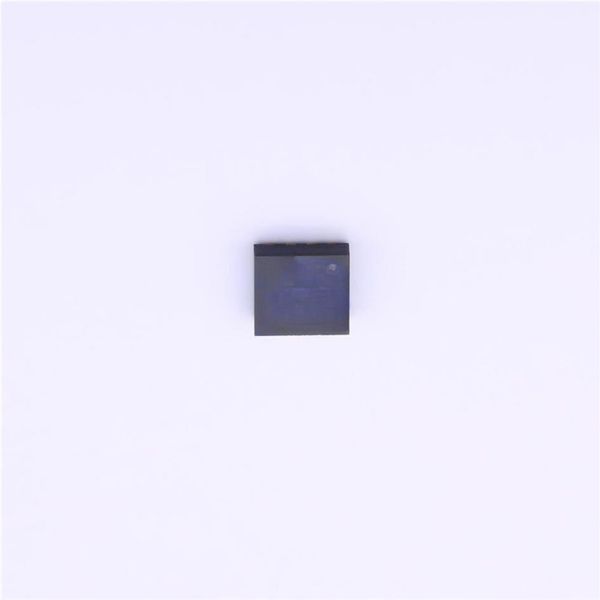

MCP6C02T-050H/Q8B Microchip

MCP6C02 Zero-Drift, 65V High-Side Current Sense Amplifier Features General Description Single Amplifier: MCP6C02 The Microchip Technology Inc. MCP6C02 high-side current sense amplifier is offered with preset gains of Bidirectional or Unidirectional 20, 50 and 100 V/V. The Common-mode input range Input (Common-mode) Voltages: (V ) is +3V to +65V. The Differential-mode input range IP - +3.0V to +65V, specified (V =V V ) supports unidirectional and DM IP IM - +2.8V to +68V, operating bidirectional applications. - -0.3V to +70V, survival The power supply can be set between 2.0V and 5.5V. Power Supply: Parts in the SOT-23 package are specified over -40C - 2.0V to 5.5V to +125C (E-Temp), while parts in the 33 VDFN package are specified over -40C to +150C (H-Temp). - Single or Dual (Split) Supplies High DC Precision: The Zero-Drift architecture supports very low input errors, which allow a design to use shunt resistors of -V : 1.65 V (typical) OS lower value (and lower power dissipation). - CMRR: 154 dB (typical) - PSRR: 138 dB (typical) Package Types (Top View) - Gain Error: 0.1% (typical) MCP6C02 MCP6C02 Preset Gains: 20, 50 and 100 V/V SOT-23 33 VDFN * POR Protection: 1 6 V V V 1 8 V OUT DD IP IM - HV POR for V V IP SS 2 5 V V V 2 EP 7 V SS REF SS REF - LV POR for V V DD SS 9 3 4 V V NC 3 6 V IP IM DD Bandwidth: 500 kHz (typical) NC V 4 5 OUT Supply Currents: * Includes Exposed Thermal Pad (EP); see -I : 490 A (typical) DD Table 3-1. -I : 170 A (typical) BP Enhanced EMI Protection: Typical Application Circuit - EMIRR: 118 dB at 2.4 GHz (typical) Specified Temperature Ranges: - -40C to +125C (E-Temp part) +5V - -40C to +150C (H-Temp part) 2.2 F 10 nF U Typical Applications 1 100 nF MCP6C02-100 Automotive (see Product Identification System) - AEC-Q100 Qualified, Grade 0 V BAT R SH V (VDFN package) OUT +36V 2.2 m - AEC-Q100 Qualified, Grade 1 20 k (SOT-23 package) I <20A L Motor Control Analog Level Shifter V L Industrial Computing Battery Monitor/Tester Related Products MCP6C04-020 MCP6C04-050 MCP6C04-100 2018-2019 Microchip Technology Inc. DS20006129B-page 1MCP6C02 Functional Diagram Gain Options Table 1 shows key specifications that differentiate V between the three different differential gain (G ) DD DM V OUT options. See Section1.0 Electrical Characteris- V IP R G M3 M1 tics, Section 6.0 Packaging Information and the I 1 R F Product Identification System for further information V V FG IM I 2 on the GDM options available. G R M2 G V V SS REF TABLE 1: KEY DIFFERENTIATING SPECIFICATIONS G V TC CMRR PSRR V BW E e DM OS 1 DMH ni ni Part No. (V/V) ( V) ( nV/C) (dB) (dB) (V) (kHz) ( V ) (nV/ Hz) p-p Nom. Max. Max. Min. Min. Min. Typ. Typ. Typ. MCP6C02-020 20 16 90 132 109 0.265 500 1.54 74 MCP6C02-050 50 14 70 138 115 0.106 0.95 46 MCP6C02-100 100 12 65 116 0.053 390 0.92 44 Note 1: V and TC limits are by design and characterization only. OS 1 2: TC covers the Extended Temperature Range (-40C to +125C) and the High Temperature Range (-40C 1 to +150C). 3: CMRR is at V =5.5V. DD 4: E is at f = 0.1Hzto10Hz. e is at f < 500 Hz. ni ni DS20006129B-page 2 2018-2019 Microchip Technology Inc.
