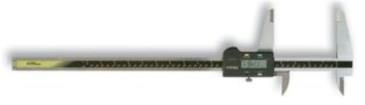

500-505-10 Mitutoyo

ABSOLUTE Digimatic Caliper SERIES 500 with Exclusive ABSOLUTE Encoder Technology Mitutoyo s absolute Digimatic Caliper is FEATURES the next generation of electronic calipers. Large and clear LCD readout. It keeps track of its origin point once set. The ZERO/ABS key allows the display to Whenever turned on, the large LCD screen be Zero-Set at any slider position along displays the actual slider position ready the scale for incremental comparison (Refer to the page 9 for details.) to start measurement. No more repeated measurements. This switch will also allow zero setting is necessary with the absolute return to the absolute (ABS) coordinate encoder technology as well as no more care and display of the true position from the for overspeed errors. origin point (usually jaws-closed point). Data Hold Unit (959143) is optional. High quality guide surface nish for smooth (Refer to the page 9 for details.) Carbide-tipped jaw type calipers are also slider movement available. Conventional ABS Digimatic Caliper Direction of the length Direction of the length Ra: 0.126m Ra: 0.07m 500-150-20 Technical Data Accuracy: 0.02mm ( 200mm), 0.03mm (300mm) 0.05mm (600mm), 0.07mm (1000mm) 500-181-20 (excluding quantizing error) Resolution: 0.01mm or .0005 /0.01mm Repeatability: 0.01mm Display: LCD Length standard: ABSOLUTE electrostatic capacitance type linear encoder Max. response speed: Unlimited Battery: SR44 (1 pc.), 938882 DIMENSION Battery life: Approx. 3.5 years under normal use Unit: mm Function Origin-set, Zero-setting, Data output, inch/mm conversion (inch/mm models) Alarm: Low voltage, Counting value composition error Optional Accessory 959143: Data hold unit Range L a b c e 959149: SPC cable with data switch (1m) 0 - 100mm 182 40 21 16.5 16 959150: SPC cable with data switch (2m) 0 - 150mm 233 40 21 16.5 16 0 - 200mm 290 50 24.5 20 16 959143 0 - 300mm 403 64 27.5 22 20 959149 Range L a b c e 0 - 450mm 630 90 47 38 25 0 - 600mm 780 90 47 38 25 0 - 1000mm 1240 130 61 50 32 130 SPECIFICATIONS Metric Range Order No. Remarks (depth measuring bar / thumb roller / others) 0 - 100mm 500-150-20 1.9mm rod with thumb roller 0 - 100mm 500-180-20* 1.9mm rod 0 - 150mm 500-151-20 Blade with thumb roller 0 - 150mm 500-154-20 Blade with thumb roller Carbide-tipped jaws for OD measurement 0 - 150mm 500-155-20 Blade with thumb roller Carbide-tipped jaws for OD & ID measurement 0 - 150mm 500-158-20 1.9mm rod with thumb roller 0 - 150mm 500-181-20* Blade 0 - 200mm 500-152-20 Blade with thumb roller 0 - 200mm 500-156-20 Blade with thumb roller Carbide-tipped jaws for OD measurement 0 - 200mm 500-157-20 Blade with thumb roller Carbide-tipped jaws for OD & ID measurement 0 - 200mm 500-182-20* Blade 0 - 300mm 500-153 Blade with thumb roller 0 - 450mm 500-500-10 0 - 600mm 500-501-10 0 - 1000mm 500-502-10 *without SPC data output Inch/Metric Range Order No. Remarks (depth measuring bar / thumb roller / others) 0 - 4 500-170-20 3/40 rod with thumb roller 0 - 4 500-195-20* 3/40 rod with thumb roller 0 - 6 500-171-20 Blade with thumb roller 0 - 6 500-174-20 Blade with thumb roller Carbide-tipped jaws for OD measurement 0 - 6 500-175-20 Blade with thumb roller Carbide-tipped jaws for OD & ID measurement 0 - 6 500-178-20 3/40 rod with thumb roller 0 - 6 500-196-20* Blade with thumb roller 0 - 6 500-159-20* Blade with thumb roller Carbide-tipped jaws for OD measurement 0 - 6 500-160-20* Blade with thumb roller Carbide-tipped jaws for OD & ID measurement 0 - 8 500-172-20 Blade with thumb roller 0 - 8 500-176-20 Blade with thumb roller Carbide-tipped jaws for OD measurement 0 - 8 500-177-20 Blade with thumb roller Carbide-tipped jaws for OD & ID measurement 0 - 8 500-197-20* Blade with thumb roller 0 - 8 500-163-20* Blade with thumb roller Carbide-tipped jaws for OD measurement 0 - 8 500-164-20* Blade with thumb roller Carbide-tipped jaws for OD & ID measurement 0 - 12 500-173 Blade with thumb roller 0 - 12 500-167 Blade with thumb roller Carbide-tipped jaws for OD measurement 0 - 12 500-168 Blade with thumb roller Carbide-tipped jaws for OD & ID measurement 0 - 12 500-193* Blade with thumb roller 0 - 12 500-165* Blade Carbide-tipped jaws for OD measurement 0 - 12 500-166* Blade Carbide-tipped jaws for OD & ID measurement 0 - 18 500-505-10 with thumb roller 0 - 24 500-506-10 with thumb roller 0 - 40 500-507-10 with thumb roller *without SPC data output 500-502-10 500-501-10 500-500-10 131
