530-123 Mitutoyo

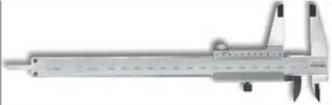

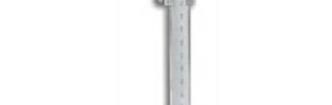

Vernier Caliper SERIES 530 Standard model FEATURES Plain and basic design. Different reading scales on vernier. Can measure outside and inside diameter (metric/inch and inch models only) (OD and ID), depth, and steps. Clamping screw atop the slider. The small vernier face angle (14) provides Carbide-tipped jaw type calipers are also easy reading. available. Technical Data Accuracy: 0.05mm (200mm), 0.08mm (300mm) 14 0.10mm (600mm), 0.15mm (1000mm) High accuracy type: 0.03mm (200mm), 0.04mm (300mm) Graduation: 0.05mm, 0.05mm (1/128) or .001 (1/128) High accuracy type: 0.02mm or 0.02mm (.001) 530-101 D 530-100 Carbide-tipped Carbide-tipped jaw type Round depth bar type DIMENSIONS Unit: mm L Range L a b c d 0 - 100mm 182 40 21 17 16 0 - 150mm 229 40 21 17 16 0 - 200mm 288 50 24.5 20.5 16 0 - 300mm 404 64 27.5 22 20 0 - 600mm 780 90 47 38 25 0 - 1000mm 1240 130 60 50 32 D-8 b a c dMeasurement Applications SPECIFICATIONS Metric Range Order No. Depth bar Remarks 0 - 100mm 530-100 1.9mm rod 0 - 150mm 530-102 1.9mm rod 0 - 150mm 530-101 Blade 0 - 150mm 530-320 Blade Carbide-tipped jaws for outside measurement 0 - 150mm 530-335 Blade Carbide-tipped jaws for outside and inside measurement 0 - 150mm 530-122* Blade High accuracy model: 0.03mm 0 - 200mm 530-108 Blade 0 - 200mm 530-321 Blade Carbide-tipped jaws for outside measurement 0 - 200mm 530-123* Blade High accuracy model: 0.03mm 0 - 300mm 530-109 Blade OD measurement 0 - 300mm 530-322 Blade Carbide-tipped jaws for outside measurement 0 - 300mm 530-124* Blade High accuracy model: 0.04mm 0 - 600mm 530-501 0 - 1000mm 530-502 *Graduation: 0.02mm Metric/Inch with metric/inch double scale Range Order No. Depth bar Inch graduation Remarks 0 - 150mm 530-104 Blade 1/128 0 - 150mm 530-316 Blade 1/128 Clamping screw below the slider 0 - 150mm 530-312* Blade .001 High accuracy model: 0.03mm 0 - 200mm 530-114 Blade 1/128 0 - 200mm 530-118* Blade .001 High accuracy model: 0.03mm ID measurement 0 - 300mm 530-115 Blade 1/128 0 - 300mm 530-119* Blade .001 High accuracy model: 0.04mm *Graduation: 0.02mm Inch with inch/inch double scale Range Order No. Depth bar Inch graduation Remarks 0 - 6 530-105 Blade 1/128 0 - 8 530-116 Blade 1/128 D Vernier Caliper Step measurement SERIES 536 Parallax-Free Type FEATURES Parallax-free vernier scales for easy and With clamping screw atop the slider. positive measurement. Special model (Series 536) is designed for Can measure outside and inside diameter left-handed users. (OD and ID), depth, and steps. Depth measurement SPECIFICATIONS 536-310 Metric Range Order No. Depth bar Remarks 0 - 150mm 536-310 Blade Left-handed type DIMENSIONS Technical Data L Accuracy: 0.05mm Unit: mm Graduation: 0.05mm Range L a b c d 0 - 150mm 229 40 21 16.5 16 D-9 d c a b
