PID-00058 Molex

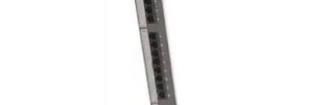

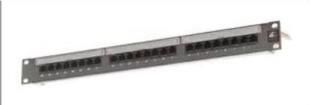

PowerCat 5E FEATURES AND SPECIFICATIONS Standard Grade Patch Panels Features and Benefits Technical Information The Molex Premise Networks 24 and Mechanical Characteristics 48 Port patch panels are a versatile Jack Connector means of connecting horizontal Operating Life: Minimum 1000 cabling. Featuring an integral rear insertion cycles cable management tray for ease of Contact Material: Copper based alloy installation and cable dressing, and Contact Plating: 1.25 micrometres individual port labelling front and rear Au/Ni for site specific network Material: UL Listed Connector administration. IDC Connector Operating Life: Minimum 100 Suitable for high speed data Reterminations transmission, these panels were Contact Material: Copper based alloy designed to meet the highest Contact Plating: Sn/Pb over Ni performance standards in the industry, Wire Accommodation: 2 x 22-26 AWG utilising the PowerSum principle of solid or stranded measurement and testing. Electrical/Optical Characteristics Molex Premise Networks patented D.C. Resistance: <20m KATT IDC is terminable using industry D.C. Resistance Imbalance: <2.0m standard tooling. Insulation Resistance: >100M Attenuation(dB) Fixing kit, cable ties and installation 1MHz +0.15 instructions are included. 16MHz -0.07 100MHz -0.18 n PowerCat (Category 5E) Crosstalk(dB) performance 1MHz -75.00 n 24 Ports 1U 16MHz -65.00 n PCB Mounted KATT IDC 100MHz -44.5 n EIA 568B wired PowerSum Worst Pair(dB) n RJ45 jacks 100MHz -41.9 n Standard 19 rack mounted Return Loss (dB) n Graphite grey textured finish 1MHz -46.00 16MHz -50.00 Commerical Standards 100MHz -28.00 ISO 11801 /EN50173/ TIA 568A Termination Tools: Molex Premise Networks and other industry standard installation tools IDC Terminations: Suitable for 0.4mm - 0.6mm solid or stranded cable, minimum o.d. 1.5mm Shipping Weight: 24 Port 1.06kg 24 Port with cover 2kg 48 Port 1.76kg ORDERING INFORMATION Order No. SAP No. Description 27.1B.241.A005G Consult Molex 24 Port PowerCat 5E Patch Panel with Cover PID-00058 Consult Molex 24 Port Panel PowerCat 5E 1U 568B PID-00059 Consult Molex 48 Port Panel PowerCat 5E 2U 568B PID-00063 Consult Molex 24 Port Panel PowerCat 5E 1U 568B (without 1 - 24 port no marking) PID-00064 Consult Molex 48 Port Panel PowerCat 5E 2U 568B (without 1 -48 port no. marking) MOLEX PREMISE NETWORKS Americas EMEA APAC Tel: 630 969 4550 Tel: 44 (0)2392 205800 Tel: 61 3 9971 7111 www.molexpn.com www.molexpn.co.uk www.molexpn.com.au 2013, Molex Premise Networks Printed in the UK Form PID-00058 64 Page 1 Issue 2 This information is correct at the time of publication, specifications are subject to changeX-ON Electronics Largest Supplier of Electrical and Electronic Components Click to view similar products for molex manufacturer: Other Similar products are found below : 60506-C-50 73108 72903 1062837003 0533241060 68301-1017 71506-C 880504 387790039 53254-0710 85071-0017 387204903 783472003 514412093 0026482195 0191310031 503308-4410 0008650814 791099208 0039000218 89762-1403 89762-1542 89762-1582 0011404526 00136 0022173102 0026615060 CR4006A30M003 0039532085 58098-0628 0003092041 0008520123 0011030025 0011184017 0022162060 0022552102 01312 M15730061 61432 6150300002 CS63W64 CS8264N CS8365N CS8369 62201-8780 62500- 1774 M37730026 63103-50 63443-2215 63443-3160
