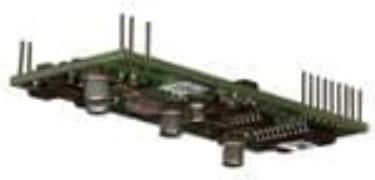

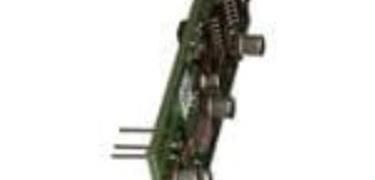

SocketModem Embedded Analog Modem The Multi-Tech SocketModem embedded modem creates communication-ready devices by integrating data/fax modem functionality into a single, universal socket design. It utilizes a space-efficient (1 x 2.5 ), design that allows OEMs to integrate a wide range of modem functions and speeds into any product platform. The SocketModem embedded modem complies with telecom requirements globally and can be shipped worldwide. Features Complete data/fax modem solution including the controller, data pump, and DAA Universal Socket connectivity Telecom approved in more than 50 countries V.92/56K, V.34/33.6K and V.22bis/2400 bps data rate options High speed models backward compatible with lower speeds V.34/33.6K or V.17/14.4K fax V.44 and V.42bis data compression V.42 error correction Intelligent DAA technology detects line status Universal Socket Benefits U.S. Caller ID reporting Interchangeable communications devices Low power/sleep mode Quick-to-market Flash memory for easy updates Global approvals FastPOS (V.29) and V.22bis Fast Connect Easy migration to future V.80 Synchronous Access networks 2-wire leased line operation 10 or 11-bit modes 3.3V or 5V power input options Serial or parallel interfaces Future Network Two-year warranty Ethernet PSTN Cellular Bluetooth M2M Simplified. Innovative Designs, Innovative Solutions.Highlights Specifications Applications Data Modem With connect rates from 300 to 56,000 bits per second (bps), the SocketModem embedded modem is targeted at applications that periodically need to send or receive data over a standard telephone line. It is ideal for: Appliances Point-of-sale terminals ATM terminals Remote diagnostics Fax Modem Credit card and check Remote metering verification systems Security systems Data collection Television set-top Gas pumps boxes Industrial and medical Ticketing machines remote monitoring Vending/gaming systems machine SocketModem Pin-Out The SocketModem embedded modem interfaces Power Requirements easily with existing products through a standard serial or parallel communication channel. The complete on-board DAA interfaces with an RJ-11 jack for direct connection to the public switched telephone network. The SocketModem embedded modem provides audio circuit outputs for audio call-progress monitoring, and LED driver outputs for visual monitoring of Carrier Detect, Transmit Data, Receive Data and DTR signals. The SocketModem embedded modem is a Data Terminal Equipment (DTE) device with a serial or parallel interface. The serial DTE channel is capable of transfer speeds to 230.4K bps and can be interfaced directly to a UART or microcontroller. Physical Description Operating Environment Certifications & Approvals
