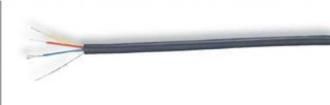

EHE & EHEA Screened and jacketed hook-up wires and multicore cables for low frequency Applications These flexible cables are mainly So a very high efficiency is obtained designed for use in applications at industrial frequencies. requiring high efficiency For a reduced overall diameter, use screening at low frequencies. EHEA range. The screen is made up of a Easy stripping, as well as continuous high conductive grounding, because of the drain thermoplastic sheath and wire placed under the thermoplastic provides a shielding efficiency sheath. inversely proportional to the 250 Volts and 750 Volts frequency. according to the products 1 Construction 2 1 - CONDUCTOR Stranded tinned copper wires 3 2 - INSULATION Polyethylene (Pe) 3- DRAIN WIRE 4 4- SCREEN High conductive sheath 5- OUTER JACKET 5 Flexible polyvinyl chloride (PVC) Standards NEXANS specification - 20C to +80C Flame retardant Flexible (NF C 32-070/C2) 35 Single core and multicore cablesEHE & EHEA - Screened and jacketed hook-up wires and multicore cables Overall Base Core mm Conductor Nb. of Nexans cores. Reference EHEA 1 PR 24 0.22 7 x 0.20 1.1 2.4 2.8 8 250 V Natural 1 EHEA 1 P 22 0.34 7 x 0.25 2.0 3.4 3.8 14 750 V Natural EHE 2 PR 24 0.22 7 x 0.20 1.2 3.8 4.2 12 250 V Natural, Blue EHEA 2 PR 24 0.22 7 x 0.20 1.1 3.5 3.9 14 250 V Natural, Blue 2 EHE 2 P 22 0.38 12 x 0.20 2.0 5.5 6.1 22 750 V Natural, Blue EHEA 2 P 22 0.34 7 x 0.25 2.0 5.5 6.1 22 750 V Natural, Blue EHE 3 PR 24 0.22 7 x 0.20 1.2 4.0 4.4 14 250 V Natural, Blue, Red 3 EHEA 3 PR 24 0.22 7 x 0.20 1.1 3.8 4.2 13 250 V Natural, Blue, Red EHE 3 P 22 0.38 12 x 0.20 2.0 6.4 7.0 31 750 V Natural, Blue, Red EHE 4 PR 24 0.22 7 x 0.20 1.2 4.6 5.0 16 250 V Natural, Blue, Red, Yellow 4 EHEA 4 PR 24 0.22 7 x 0.20 1.1 4.2 4.6 14 250 V Natural, Blue, Red, Yellow 5 EHEA 5 PR 24 0.22 7 x 0.20 1.1 4.6 5.0 15 250 V Natural, Blue, Red, Yellow, Green Natural, Blue, Red, Yellow, 6 EHEA 6 PR 24 0.22 7x 0.20 1.1 4.9 5.3 16 250 V Green, Black 36 Gauge AWG Cross section mm Construction n x mm Nominal core mm Mini. Maxi. Average weight Kg / Km Operating voltage Colour coding of cores November 2007 - Copyright Nexans
