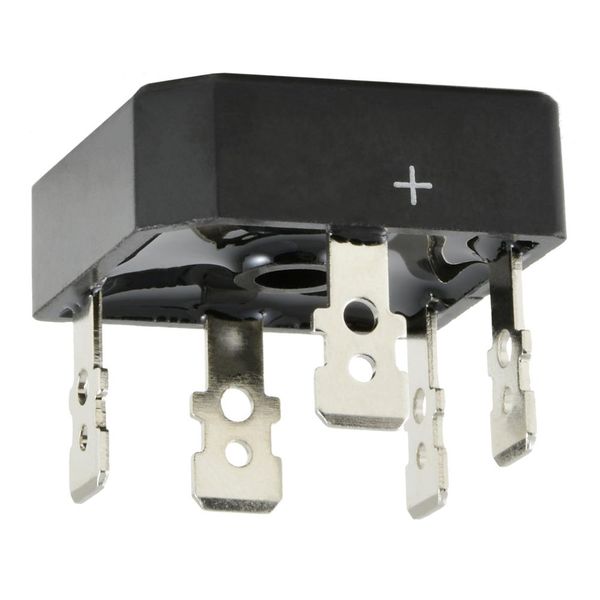

NTE53504 thru NTE53516 Bridge Rectifier, 3Phase, Glass Passivated, 35A Features: Low Forward Voltage Drop Ideal for Printed Circuit Boards High Current Capacity Epoxy Case with Heat Sink Internally High Reliability Mounted in the Bridge Encapsulation High Surge Current Capability Mounting: Through Hole with 10 Screw Maximum Ratings and Electrical Characteristics: (T = +25C unless otherwise specified. Single A Phase, Half Wave, 60Hz, Resistive or Inductive Load, Note 1) Maximum Peak Repetitive Reverse Voltage, V RRM NTE53504 ................................................................. 400V NTE53508 ................................................................. 800V NTE53512 ................................................................ 1200V NTE53516 ................................................................ 1600V Working Peak Reverse Voltage, V RWM NTE53504 ................................................................. 400V NTE53508 ................................................................. 800V NTE53512 ................................................................ 1200V NTE53516 ................................................................ 1600V Maximum DC Blocking Voltage, V R NTE53504 ................................................................. 400V NTE53508 ................................................................. 800V NTE53512 ................................................................ 1200V NTE53516 ................................................................ 1600V Maximum Peak Non Repetitive Reverse Voltage, V RSM NTE53504 ................................................................. 500V NTE53508 ................................................................. 900V NTE53512 ................................................................ 1300V NTE53516 ................................................................ 1700V Maximum RMS Reverse Voltage, V R(RMS) NTE53504 ................................................................. 280V NTE53508 ................................................................. 560V NTE53512 ................................................................. 840V NTE53516 ................................................................ 1120V Maximum Average Forward Rectified Output Current (T = +60C), I ................. 35A A O(AV) Non Repetitive Peak Forward Surge Current, I FSM No Voltage Reapplied, t = 8.3ms at 60Hz ....................................... 500A No Voltage Reapplied, t = 10ms at 50Hz ....................................... 475A 100% V Reapplied, t = 8.3ms at 60Hz ...................................... 420A RRM 100% V Reapplied, t = 10ms at 50Hz ....................................... 400A RRM Note 1. For capacitive load, derate current by 20%. Rev. 1119Maximum Ratings and Electrical Characteristics (Contd): (T = +25 C unless otherwise specified. A Single Phase, Half Wave, 60Hz, Resistive or Inductive Load, Note 1) 2 2 I t Rating for Fusing, I t 2 No Voltage Reapplied, t = 8.3ms at 60Hz .................................... 1030A s 2 No Voltage Reapplied, t = 10ms at 50Hz .................................... 1130A s 2 100% V Reapplied, t = 8.3ms at 60Hz .................................... 730A s RRM 2 100% V Reapplied, t = 10ms at 50Hz ..................................... 800A s RRM Maximum Forward Voltage Drop (Per element, T = +25C, I = 40A ), V ............. 1.19V J FM pk F Maximum Peak Reverse Current at Rated DC Blocking Voltage Per Element, I R T = +25C ................................................................. 10 A J T = +125C ................................................................ 5mA J RMS Isolation Voltage, Terminals toCase (t = 1min), V ............................ 2500V ISO Thermal Resistance, Junction toCase (DC Operation per Bridge), R ............. 1.35K/W thJC Thermal Resistance, Case toHeatsink (Note 2), R .............................. 0.2K/W thCS Operating Temperature Range, T .......................................... 40 to +150C J Storage Temperature Range, T .......................................... 40 to +150C stg Note 1. For capacitive load, derate current by 20%. Note 2. Mounting surface, smooth, flat, and greased. 1.124 (28.6) Sq. .957 (24.3) .200 (5.08) Dia. Hole for 10 Screw AC AC .957 .630 (24.3) (16.0) AC + AC + AC AC .250 (6.35) .902 (22.9) Min .394 (10.0) Max
