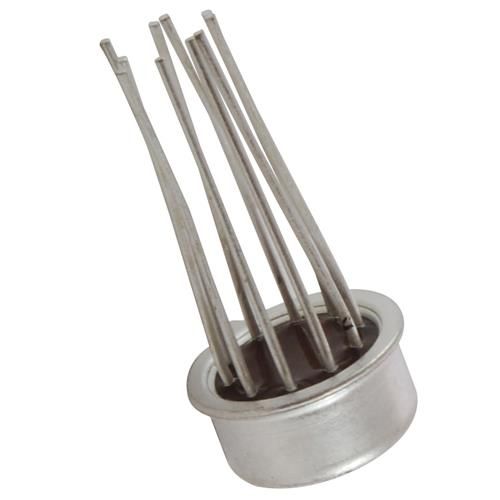

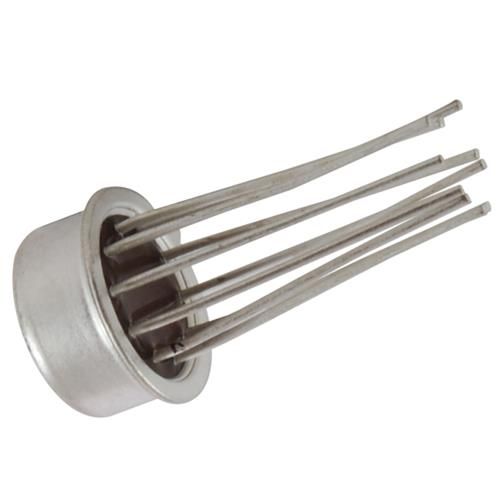

NTE919 Integrated Circuit High Speed Dual Comparator Description: The NTE919 is a precision high speed dual comparator designed to operate over a wide range of sup- ply voltages down to a single 5V logic supply and ground and have low input currents and high gains. The open collector of the output stage makes it compatible with TTL as well as capable of driving lamps and relays at currents up to 25mA. Although designed primarily for for applications requiring operation from digital logic supplies, are fully specified for power supplies up to 15V. Features: Two Independent Comparators Operates from a Single 5V Supply Typically 80ns Response Time at 15V Minimum Fan Out of 2 Each Side Maximum Input Current of 1 A Over Temperature Inputs and Outputs can be Isolated from System Ground High Common Mode Slew Rate Absolute Maximum Ratings: Output to Negative Supply Voltage, V V . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36V O CC Negative Supply Voltage, V . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25V CC + Positive Supply Voltage, V . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18V CC Differential Input Voltage, V . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5V id Input Voltage (Note 1), V . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15V I Power Dissipation, P . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 500mW tot Operating Temperature Range . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0 to +70C Storage Temperature Range . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65 to +150C Lead Temperature (Soldering 10 sec) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . +260 C Note 1. For supply voltages less than 15 the absolute maximum input voltage is equal to the supply voltage.Electrical Characteristics: (V = 15V, T = +25C, unless otherwise specified) CC amb Parameter Symbol Test Conditions Min Typ Max Unit Input Offset Voltage (Note 2) V T = +25C, R 5k 2.0 8.0 mV A S 10 T T T 10 mV min. amb max. T = +25C, Note 2 80 200 nA Input Offset Current (Note 2) I 10 A T T T 300 nA min. amb max. Input Bias Current (Note 2) I T = +25C 250 1000 nA A ib T T T 1200 nA min. amb max. Voltage Gain A T = +25C 8 40 V/mV vd A + Positive Supply Current I V = 15V 8 12.5 mA CC CC + V = 5V V = 0V 4.3 mA CC , CC Negative Supply Current I 3 5 mA CC V = 15V 12 13 V Input Common Mode V icm CC VlVoltage Ranget R + V = 5V, V = 0V 1 3 V CC CC Differential Input Voltage V 5 V id Low Level Output Voltage V T = +25C, I = 25mA, 0.75 1.5 V amb O OL V 5mV, V 10mV 1 1 + V 4.5V, V = 0V, 0.3 0.4 V CC CC I <3.2mA, V 6mV, V 10mV O(sink) 1 1 T = +25C, V = 35V, 0.2 10 A High Level Output Current I OH amb O V 5mV, V 10mV 1 1 T T T V 5mV 0.2 10 A min. amb max., 1 Response Time (Note 3) t T = +25C, V = 15V, Note 5 80 ns re A S Note 2. The offset voltages and offset currents given are the maximum values required to drive the output within a volt of either supply with a 1mA load. Thus, these parameters define an error band and take into account the worst case effects of voltage gain and input impedance. Note 3. The response time specified is for a 100mV input step with 5mV overdrive. Pin Connection Diagram Output 2 GND 2 6 7 Non Invert Input 2 V () 5 8 Invert Input 2 9 Invert Input 1 4 10 3 Non Invert Input 1 V (+) 1 2 GND 1 Output 1
