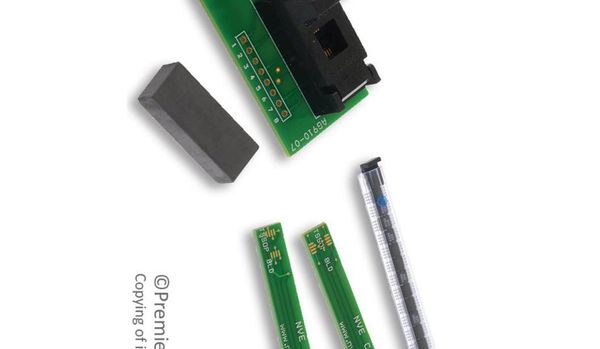

Evaluation Kits Evaluation Kits In order for our customers to evaluate GMR sensors in their application NVE makes available several evaluation kits, at nominal cost, so that customers can try the actual parts in their application. These kits are described below: AG001-01 - Analog Sensor Evaluation Kit This kit features several types of NVEs AA and AB-Series parts, a selection of permanent magnets for activation or bias purposes, and circuit boards to mount the parts for testing purposes. AG003-01 - Current Sensor Evaluation Kit This kit features a specially designed circuit board with traces running under the sensor elements. The customer can try different current levels to see the output from the sensor. AG910-07, AG911-07 - GMR Switch Evaluation Kits These kits include several GMR Switch parts with different magnetic operate points and different output options such as current sink and current source. In addition, magnets and circuit boards for mounting the parts in the application are included. In the AG910-07 kit, a socket for easy testing of the MSOP-8L package is also included. AG920-07 - GT Sensor Evaluation Kit NVEs newest evaluation kit includes analog and digital versions of the GT sensor product line plus our DD001-12 stand-alone signal processing IC. A variety of PCB configurations are provided so that the parts can be tested in different housing and barrel sizes including the M8 housing. Magnets for biasing are also included. Evaluation kits may be ordered direct from NVEs web site or from our authorized distributors. See NVEs web site for the list of authorized distributors. - 73 - www.nve.com phone: 952-829-9217 fax: 952-829-9189 Evaluation Kits AG001-01 Analog Sensor Evaluation Kit The NVE GMR Engineering Evaluation Kit (PN AG001-01) was created as an aid to the technical user of GMR sensors to facilitate laboratory experimentation and development. The kit consists of an assortment of NVE sensors, printed circuit boards and permanent magnets sufficient to demonstrate sensor functionality in the laboratory. The kit consists of the following: Part Number Quantity Description AA002-02 2 15 Oe/5 k Field Sensor AAH002-02 1 6 Oe/2 k Field Sensor AAL002-02 1 15 Oe/5 k Field Low Hysteresis Sensor AA003-02 2 20 Oe/5 k Field Sensor AA004-02 2 50 Oe/5 k Field Sensor AA005-02 2 100 Oe/5 k Field Sensor AA006-02 2 50 Oe/30 k Field Sensor AB001-02 2 250 Oe/5 k Field Gradient Sensor AG004-06 2 Long PCB- 3.0 x 0.3 AG005-06 2 Square PCB- 0.5 x 0.5 SN 12031 2 Ceramic 5- Disc Magnets SN 12030 2 Ferrite Rectangular magnets - 74 - www.nve.com phone: 952-829-9217 fax: 952-829-9189
