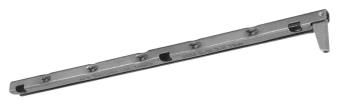

Series 24 Lok Tainer Series 24 Lok Tainer WEIGHT .97g/cm (.087 oz/in) MATERIALS AND FINISH HOUSING Material: .025-in. (.64-mm) thick Beryllium Copper per QQ-C- 533 or .024-in. (.61-mm) thick Cold Rolled Steel per ASTM A-366 Finish: See finish table on opposite page CAM Material: Beryllium Copper per QQ-C-533 LEVER Material: Cold Rolled Steel per ASTM A-366 Note: Beryllium Copper lever furnished when housing is unplated Finish: See finish table on opposite page pentairprotect.com 1-800-854-7086Series 24 Lok Tainer MOUNTING HOLE DIMENSIONS Part Number Code example: 24BX-3-10-6-L Series 24 Lever-actuated LOK-TAINER, Beryllium Copper housing with flange, 2.39-mm Part Number Code (.094-in.) thick board, 127.2-mm (5.00-in.) long, nickel plate finish and left hand lever action Series 24 LOK-TAINER Lever Actuated T 24 B X - 2 - 10 - 5 - L MATERIALS TABLE Finger Tab Finger tab T CODE None Blank LETTER B BERYLLIUM COPPER, 1/4H PER ASTM-B-194 Housing Material S STEEL PER ASTM-A-366 Beryllium Copper B or select from Materials Table BOARD THICKNESS TABLE Extractor Flange THICKNESS (Standard) X +.127/-.000 None Blank DASH +.005/-.000 A B C -1 0.79 (.031) 4.58 (.180) 8.89 (.350) 7.55 (.297) Board Thickness -2 1.60 (.063) 4.58 (.180) 8.89 (.350) 7.55 (.297) 2 1.60 (.063) PCB Thickness -3 2.39 (.094) 5.34 (.210) 9.66 (.380) 8.31 (.327) or select from Board Thickness Table Length FINISH TABLE Length in 12.7 (.50) increments 6 76.2 (3.00) DASH to 24 304.8 (12.00) blank SILVER PLATE PER QQ-S-365, TYPE III, GRADE A Finish NONE -1 Gold Plate 5 -2 EBANOL PER MIL-F-495 FOR BERYLLIUM COPPER PER MIL-C-13924 FOR STEEL or select from Finish Table -3 CADMIUM PER QQ-P-416, TYPE 2, CLASS 2 -4 COPPER PLATE PER MIL-C-14550, CLASS 2 Lever Action -5 GOLD PLATE PER MIL-G-45204, TYPE 1, GLASS 1 Left hand L -6 NICKEL PLATE PER QQ-N-290, CLASS 1, GRADE G, BRIGHT Right hand R -7 ZINC PLATE CLEAR CHROMATE, PER ASTM-B-633, Fe/Zn 8 -8 ZINC PLATE YELLOW CHROMATE, PER ASTM-B-633, Fe/Zn 8 NO FINISH (-1) NOT AVAILBLE WITH STEEL MATERIAL NOTE: pentairprotect.com 1-800-854-7086
