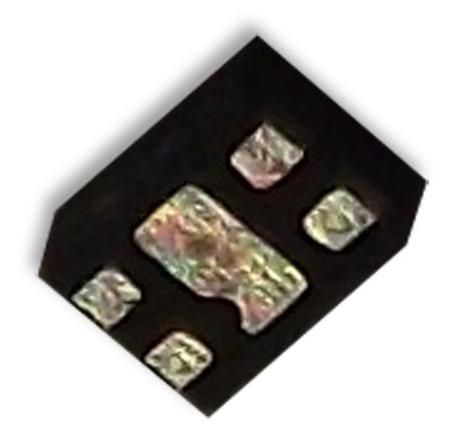

NTAG203F NFC Forum Type 2 Tag compliant IC with 144 bytes user memory and field detection Rev. 3.5 28 September 2015 Product data sheet 220635 COMPANY PUBLIC 1. General description NXP Semiconductors has developed NTAG203F - NFC Forum Type 2 Tag compliant IC - to be used with NFC enabled devices according to NFC Forum technical specifications (see Ref. 8 and Ref. 9), according to NFC Forum recommendations or Proximity Coupling Devices (PCD), according to ISO/IEC 14443A (see Ref. 1). The communication layer (RF Interface) complies to parts 2 and 3 of the ISO/IEC 14443A standard. The NTAG203F is primarily designed for NFC Forum Type 2 Tag applications in electronics (i.e. connection handover, Bluetooth simple pairing, Wi-Fi Protected set-up, device authentication, gaming and others). 1.1 Contactless energy and data transfer Communication to NTAG can be established only when the IC is connected to an antenna. Form and specification of the coil is out of scope of this document. For details on how to design antennas see Ref. 6. When the NTAG is positioned in the RF field, the high speed RF communication interface allows the transmission of the data with a baud rate of 106 kbit/s. NTAG IC e.g. C, NFC POWER ENERGY ENABLED DEVICE CONTROL UNIT NFC TAG DATA aaa-001749 Fig 1. NFC Tag interacting with NFC enabled deviceNTAG203F NXP Semiconductors NFC Forum compliant IC with user memory and field detection 1.2 Naming conventions Table 1. Short naming convention (for easier product identification) Family name Description NTAG NXP NFC Tag product family name 2 Platform indicator 0 Generation number (starting from 0) 3 Code number for size (0: < 64 bytes, 1: 64-96 bytes 2: 96-128 bytes 3: 128-256 bytes) F HXSON4 package with Field Detection pin 2. Features and benefits 2.1 RF Interface (ISO/IEC 14443A) Contactless transmission of data and supply energy (no battery needed) Operating distance: up to 100 mm (depending on various parameters as e.g. field strength and antenna geometry) Operating frequency: 13.56 MHz Fast data transfer: 106 kbit/s High data integrity: 16-bit CRC, parity, bit coding, bit counting True anticollision 7 byte serial number (cascade level 2 according to ISO/IEC 14443-3) 2.2 EEPROM 168 bytes of total memory, divided in 42 pages (4 bytes each) 144 bytes of user r/w memory area, divided in 36 pages (4 bytes each) Field programmable read-only locking function per page 16 pages (64 bytes) of the memory Field programmable read-only locking function per block (2 pages) 32-bit user definable One-Time Programmable (OTP) area 16-bit counter Data retention of 10 years Write endurance 10000 cycles 2.3 NFC Forum Tag 2 Type compliance NTAG203F IC provides full compliance to the NFC Forum Tag 2 Type technical specification (see Ref. 8) and enables NDEF data structure configurations (see Ref. 9). 2.4 Field detection NTAG203F features an additional RF field detection functionality. The corresponding output signal can be used as interrupt source to e.g. wake up an embedded microcontroller or trigger further actions. Typical applications are Bluetooth and Wi-Fi pairing. NTAG203F All information provided in this document is subject to legal disclaimers. NXP Semiconductors N.V. 2015. All rights reserved. Product data sheet Rev. 3.5 28 September 2015 COMPANY PUBLIC 220635 2 of 30
