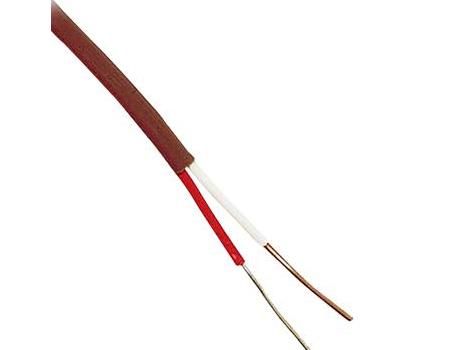

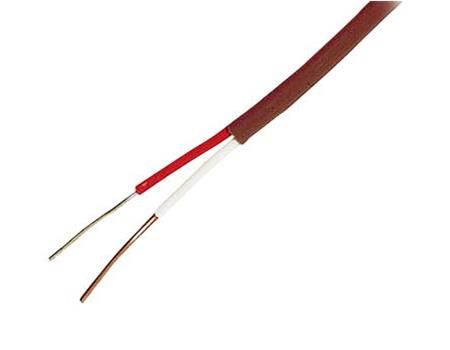

Now You Can Add Stainless Steel, Inconel or Tinned Copper Overbraiding to Your Insulated Thermocouple Wire Duplex Insulated Iron-Constantan Duplex ANSI Color Code: Positive Wire, White ANSI Type J Negative Wire, Red Overall, Brown OMEGA Engineering does not use reprocessed PFA or Visit omega.com/xc j tc wire PVC in manufacturing thermocouple wire for Pricing and Details Insulation Max Temp AWG Type Nominal Wt. kg/300 m Size mm (inch) Insulation No. Model Number Wire Conductor Overall C F (lb/1000 ) 14 XC-J-14 Solid 590 1100 3.6 x 5.0 (0.140 x 0.200) 18 (38) 20 XC-J-20 Solid 480 900 3.4 x 4.8 (0.135 x 0.190) 8 (16) 20 XT-J-20 Solid 480 900 2.7 x 3.9 (0.105 x 0.155) 7 (15) Ceramic* 20 XL-J-20 Solid Nextel Ceramic Nextel Ceramic 480 900 2.4 x 3.4 (0.095 x 0.135) 7 (14) 24 XC-J-24 Solid 370 700 2.9 x 4.4 (0.115 x 0.175) 6 (12) 24 XT-J-24 Solid 370 700 2.2 x 3.4 (0.088 x 0.132) 5 (11) 24 XL-J-24 Solid 370 700 2.0 x 3.0 (0.078 x 0.116) 5 (10) 14 XS-J-14 Solid 590 1100 3.6 x 5.0 (0.140 x 0.200) 16 (35) Silica* 20 XS-J-20 Solid Silica Silica 480 900 2.7 x 3.9 (0.105 x 0.155) 6 (12) 24 XS-J-24 Solid 370 700 2.2 x 3.4 (0.088 x 0.132) 5 (10) High Temp. 20 HH-J-20 Solid High High 480 900 1.5 x 2.7 (0.060 x 0.105) 4 (9) Glass** 24 HH-J-24 Solid Temp. Glass Temp. Glass 370 700 1.1 x 2.2 (0.055 x 0.090) 3 (5) 14 GG-J-14 Solid Glass Braid 480 900 1.5 x 2.4 (0.060 x 0.095) 4 (9) 20 GG-J-20 Solid Glass Braid 480 900 1.5 x 2.5 (0.060 x 0.100) 4 (9) 20 GG-J-20S 7 x 28 Glass Braid 480 900 1.3 x 2.0 (0.050 x 0.080) 3 (5) Glass 24 GG-J-24 Solid Glass Braid Glass Braid 370 700 1.3 x 2.2 (0.050 x 0.085) 3 (5) 24 GG-J-24S 7 x 32 Glass Braid 370 700 1.1 x 2.0 (0.045 x 0.075) 2 (4) 28 GG-J-28 Solid Glass Wrap 370 700 1.0 x 1.4 (0.040 x 0.055) 2 (3) 30 GG-J-30 Solid Glass Wrap 320 600 0.9 x 1.3 (0.037 x 0.050) 2 (3) 36 GG-J-36 Solid Glass Wrap 320 600 0.8 x 1.1 (0.033 x 0.045) 1 (2) H Glass with 20 GG-J-20-SB Solid 482 900 2.3 x 3.0 (0.090 x 0.120) 6 (14) Stainless 20S GG-J-20S-SB 7 x 28 Glass SS Braid 482 900 2.3 x 3.2 (0.090 x 0.127) 7 (15) Steel 24 GG-J-24-SB Solid over Glass 482 900 2.2 x 3.0 (0.085 x 0.117) 5 (11) Overbraid 24S GG-J-24S-SB 7 x 32 482 900 2.0 x 2.8 (0.080 x 0.110) 5 (11) Kapton 20 KK-J-20 Solid 260 500 1.5 x 2.5 (0.060 x 0.100) 5 (11) Fused 20S KK-J-20S 7 x 28 Fused Fused 260 500 1.5 x 2.7 (0.060 x 0.105) 5 (11) Polymide 24 KK-J-24 Solid Polymide Polymide 260 500 1.3 x 1.9 (0.050 x 0.075) 3 (6) Tape 24S KK-J-24S 7 x 32 Tape Tape 260 500 1.3 x 2.2 (0.050 x 0.085) 3 (6) 30 KK-J-30 Solid 260 500 1.0 x 1.4 (0.040 x 0.055) 3 (5) PFA and 30 TG-J-30 Solid 260 500 0.9 x 1.2 (0.034 x 0.047) 1 (2) Glass 36 TG-J-36 Solid PFA Glass Braid 260 500 0.7 x 1.0 (0.028 x 0.038) 1 (2) 40 TG-J-40 Solid 260 500 0.7 x 0.9 (0.026 x 0.035) 1 (2) 20 TT-J-20 Solid 260 500 1.7 x 3.0 (0.068 x 0.116) 5 (11) 20 TT-J-20S 7 x 28 260 500 1.9 x 3.2 (0.073 x 0.126) 5 (11) Neoflon 22 TT-J-22S 7 x 30 260 500 1.7 x 3.4 (0.065 x 0.133) 4 (9) PFA 24 TT-J-24 Solid PFA PFA 260 500 1.4 x 2.4 (0.056 x 0.093) 3 (6) (High 24 TT-J-24S 7 x 32 260 500 1.6 x 2.6 (0.063 x 0.102) 3 (6) Performance) 30 TT-J-30 Solid 260 500 0.6 x 1.0 (0.024 x 0.040) 1 (2) 36 TT-J-36 Solid 260 500 0.5 x 0.8 (0.019 x 0.030) 1 (2) 40 TT-J-40 Solid 260 500 0.4 x 0.7 (0.017 x 0.026) 1 (2) PFA 20 TT-J-20-TWSH Solid 260 500 3.7 (0.15) 9 (20) Polymer 20S TT-J-20S-TWSH 7 x 28 PFA PFA Polymer 260 500 3.8 (0.15) 9 (20) w/Twisted 24 TT-J-24-TWSH Solid Polymer and Shielding 260 500 2.7 (0.11) 4 (9) & Shielded 24S TT-J-24S-TWSH 7 x 32 260 500 2.9 (0.12) 4 (9) Conductors 20 FF-J-20 Solid 200 392 1.7 x 3.0 (0.068 x 0.116) 5 (11) FEP FEP Neoflon FEP 24 FF-J-24 Solid 200 392 1.7 x 3.0 (0.056 x 0.092) 3 (5) FEP 20 FF-J-20-TWSH Solid 200 392 3.7 (0.15) 9 (20) Polymer 20S FF-J-20S-TWSH 7 x 28 FEP FEP Polymer 200 392 3.8 (0.15) 9 (20) w/Twisted 24 FF-J-24-TWSH Solid Polymer and Shielding 200 392 2.7 (0.11) 4 (9) & Shielded 24S FF-J-24S-TWSH 7 x 32 200 392 2.9 (0.12) 4 (9) Conductors TFE Tape 20 TFE-J-20 Solid 260 500 1.5 x 2.5 (0.060 x 0.100) 5 (11) Polymer 20S TFE-J-20S 7 x 28 TFE Tape Fused TFE 260 500 1.5 x 2.7 (0.060 x 0.105) 5 (11) 24 TFE-J-24 Solid Polymer Tape Polymer 260 500 1.3 x 1.9 (0.050 x 0.075) 3 (6) 24S TFE-J-24S 7 x 32 260 500 1.3 x 2.2 (0.050 x 0.085) 3 (6) Polyvinyl 24 PR-J-24 Solid (Rip Cord)*** 105 221 1.3 x 2.2 (0.050 x 0.085) 3 (5) Polyvinyl 24 PP-J-24S 7 x 32 Polyvinyl 105 221 2.0 x 3.4 (0.082 x 0.134) 3 (5) Has color tracers on jacket and conductors, **HH Wire has trace thread in positive leg, negative leg is red, * overall has trace thread. Two insulated leads bonded together, but with no overjacket. *** Weight of spool and wire rounded to the next highest lb (does not include packing material). Overall color clear. To order special limits of error wire, add -SLE to model number before spool length. Ordering Example: GG-J-24-SLE-1000, 1000 (300 m) of Type J duplex insulated special limits of error thermocouple wire. Note: Published prices are based on market value at time of printing and are subject to change due to Nickel surcharges, Chromium and precious-metal market fluctuations. H-30X-ON Electronics Largest Supplier of Electrical and Electronic Components Click to view similar products for omega manufacturer: Other Similar products are found below : PX309-5KGI SMPW-J-M 5SC-TT-T-36-36 5SRTC-TT-K-30-72 MJP2-12-T CASS-116U-12 CHAL-002 DH-1-20-J-12 GG-J-24-SLE-1000 HPC-AU-P HPC-IR-P KHSS-18G-RSC-12 KMQIN-125U-6 KMQXL-125G-12 KMQXL-125U-6 KQSS-18G-6 KQXL-14U-36 KQXL- 18G-12 NB3-CAXL-14U-18 PX309-100AI PX309-100AV PX309-100GV PX319-V050G5V PX319-V100G5V PX319-002GI PX319- 050GI PX319-100GV PX319-200AV PX319-200A5V PX319-300G5V PX319-500G5V PX319-7.5KGI PX319-7.5KG5V PX329-1KG5V PX329-10KGI PX329-2KGI PX409-015VUSBH PX409-015VV PX409-050A5V PX409-1.0KGUSBH PX409-10WVI PX409-100A5V PX409-5.0KG5V PX409-500GUSBH PX41T0-300GI PX419-250GI P10R-005 SA1-RTD-4W-120 SA1-T-72-SRTC SA1XL-K-SRTC
