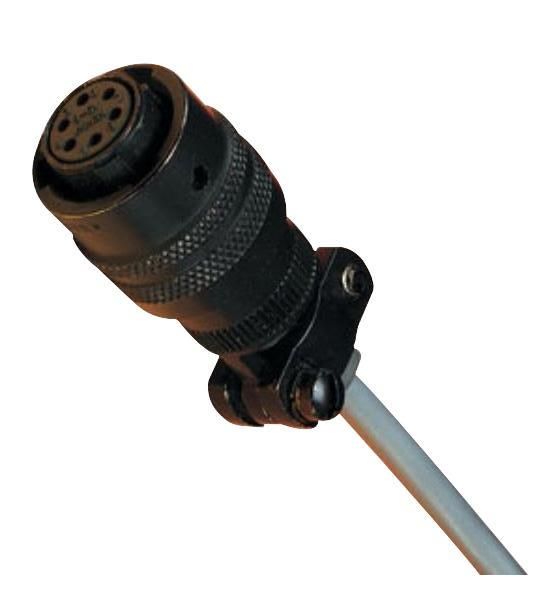

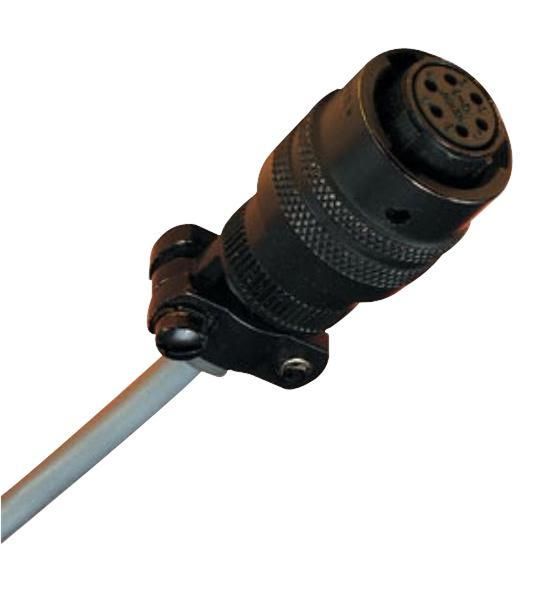

Integral Solder Contacts Included CONNECTORS TWIST-LOCK TYPE PT06F8-4S, shown smaller than actual size. PT Series PT06F10-6S, shown actual size. U Rugged Aluminum Shells U Rated to 125C (257F) U Strain-Relief Cable Clamp mAlE PT01F FEmAlE U Secure Solder Contacts CC PT06F U 20 AWG Wire Size DD CC U High-Conductivity Gold-Plated Contacts D BB EEC D B A A The OMEGA PT Series connectors provide an efficient method of Dimensions: mm (inch) connecting pressure transducers mODEl NO. A DIA. mIN B mA x C mAx D mAx E 0.020 to associated instrumentation with PT01F8-4P 5.94 (0.234) 21.03 (0.828) 48.82 (1.922) 21.03 (0.828) 23.83 (0.938) multiconductor cable. The solder PT01F10-6P 7.54 (0.297) 22.63 (0.891) 48.82 (1.922) 24.23 (0.954) 26.97 (1.062) contacts are designed to provide PT06F8-4S 5.94 (0.234) 21.03 (0.828) 46.43 (1.828) 19.05 (0.750) positive connections for signal or power circuitry. The connectors PT06F10-6S 7.54 (0.297) 22.63 (0.891) 46.43 (1.828) 21.82 (0.859) come in a selection of operating temperature ranges to meet most industrial applications. To Order NO. OF TEmPERATuRE mODEl NO. CONTACTS RANGE FEATuRES PT01F8-4P* 4 male -55 to 125C Environmentally (-67 to 257F) protected SPECIFICATIONS Insulation Resistance 25C (77F): PT01F10-6P* 6 male -55 to 125C Environmentally 5000 M min (-67 to 257F) protected Voltage Drop: 20 contact, 20 wire, PT06A10-6S* 6 female -55 to 125C Indoor use at 7.5 A, 55 mV max (-67 to 257F) ENVIRONmENTAlly PT06F8-4S* 4 female -55 to 125C Indoor use PROTECTED mODElS (-67 to 257F) Air Pressure: 30 psi (2 bar) PT06F8-4SG* 4 female -55 to 125C Internal sealing gland at -55C (-67F) (-67 to 257F) Durability: 500 cycles of coupling PT06F10-6S* 6 female -55 to 125C Indoor use and uncoupling (-67 to 257F) Shells: Aluminum alloy, 0.0003 PTS06A10-6S* 6 female -55 to 150C Extended temperature cadmium plate with olive drab chromate (-67 to 302F) range or Black Zinc (RoHS) PCS06E10-6S* 6 female -55 to 204C High temperature Insulators: Neoprene on all, except (-67 to 399F) silicone on PCS06E10-6S Note: P suffix denotes male pins S suffix denotes female sockets *-R suffix denotes RoHS. Contacts: High-conductivity copper alloy, 0.000050 gold over copper Ordering Example: PT01F8-4P, 4 contacts, male, and PT06F8-4S, 4 contacts, female. 1X-ON Electronics Largest Supplier of Electrical and Electronic Components Click to view similar products for omega manufacturer: Other Similar products are found below : PX309-5KGI SMPW-J-M 5SC-TT-T-36-36 5SRTC-TT-K-30-72 MJP2-12-T CASS-116U-12 CHAL-002 DH-1-20-J-12 GG-J-24-SLE-1000 HPC-AU-P HPC-IR-P KHSS-18G-RSC-12 KMQIN-125U-6 KMQXL-125G-12 KMQXL-125U-6 KQSS-18G-6 KQXL-14U-36 KQXL- 18G-12 NB3-CAXL-14U-18 PX309-100AI PX309-100AV PX309-100GV PX319-V050G5V PX319-V100G5V PX319-002GI PX319- 050GI PX319-100GV PX319-200AV PX319-200A5V PX319-300G5V PX319-500G5V PX319-7.5KGI PX319-7.5KG5V PX329-1KG5V PX329-10KGI PX329-2KGI PX409-015VUSBH PX409-015VV PX409-050A5V PX409-1.0KGUSBH PX409-10WVI PX409-100A5V PX409-5.0KG5V PX409-500GUSBH PX41T0-300GI PX419-250GI P10R-005 SA1-RTD-4W-120 SA1-T-72-SRTC SA1XL-K-SRTC
