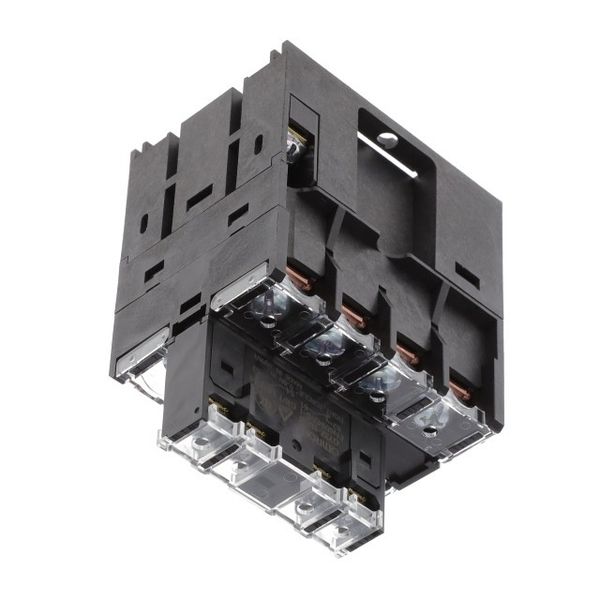

New Product Power Relays G7Z Compact Electromagnetic Contactors That Switch 40 A at 440 VAC One pole carries 40 A. UL 508 and UL 840 NO contacts (resistive 40 A 480 VAC, 60 Hz, 80,000 operations). EN 60947-4-1 NO contacts (AC1 40 A 440 VAC, 50/60 Hz, 80,000 operations). Ideal for supply power to industrial inverters, servo drivers, and other devices, and switching power to motors and other equipment. The maximum load capacity of 160 A when using 4-pole parallel connections. EN 60947-4-1 certification for mirror contact mechanism obtained For the most recent information on models that have been certified for safety standards, refer to your OMRON website. by combining the Relay with an Auxiliary Contact Block. Conforms to European PV standard (VDE0126). Approx. 30% less operation noise than a standard electromagnetic contactor.* (Approx. 100 dB reduced to approx. 70 dB.) Approx. 50% the volume of a standard electromagnetic contactor* to help downsize control panels. * According to OMRON investigation of IIEC-AC1 50 A specifications. Be sure to read the Safety Precautions on page 8 and the Precautions for All Relays with Forcibly Guided Contacts. Model Number Structure Model Number Legend Relay with Auxiliary Contact Block Relay G7Z- G7Z- - - 1 12 3 1. Relay Contact Configuration 1. Contact Configuration 4A: 4PST-NO 4A: 4PST-NO 3A1B: 3PST-NO/SPST-NC 3A1B: 3PST-NO/SPST-NC 2A2B: DPST-NO/DPST-NC 2A2B: DPST-NO/DPST-NC 2. Contact Configuration of Auxiliary Contacts 20: DPST-NO Auxiliary Contact Block 11: SPST-NO/SPST-NC 02: DPST-NC G73Z- - 3. Contact Mechanism of Auxiliary Contacts 12 Z-R: Bifurcated crossbar contact 1. Contact Configuration of Auxiliary Contacts (Single break) 20: DPST-NO 11: SPST-NO/SPST-NC 02: DPST-NC 2. Contact Mechanism of Auxiliary Contacts Z-R: Bifurcated crossbar contact (Single break) 1G7Z When your order, specify the rated voltage. Ordering Information Relay with Auxiliary Contact Block Number of poles Contact configuration (Relay with Auxiliary Model Rated Voltage Relay Auxiliary Contact Block Contact) DPST-NO G7Z-4A-20Z-R 12, 24 VDC 4PST-NO SPST-NO/SPST-NC G7Z-4A-11Z-R 12, 24 VDC DPST-NC G7Z-4A-02Z-R 12, 24 VDC DPST-NO G7Z-3A1B-20Z-R 12, 24 VDC 4 poles + 2 poles 3PST-NO/SPST-NC SPST-NO/SPST-NC G7Z-3A1B-11Z-R 12, 24 VDC DPST-NC G7Z-3A1B-02Z-R 12, 24 VDC DPST-NO G7Z-2A2B-20Z-R 12, 24 VDC DPST-NO/DPST-NC SPST-NO/SPST-NC G7Z-2A2B-11Z-R 12, 24 VDC DPST-NC G7Z-2A2B-02Z-R 12, 24 VDC Note: 1. Relay contact terminals are M5, and the coil terminals are M3.5. 2. Auxiliary contact block terminals are M3.5. 3. When placing an order, specify the model number and rated supply voltage (12 VDC or 24 VDC). Relay Number of poles Contact configuration Model Rated Voltage 4PST-NO G7Z-4A 4 poles 3PST-NO/SPST-NC G7Z-3A1B 12, 24 VDC DPST-NO/DPST-NC G7Z-2A2B Note: 1. Relay contact terminals are M5, and the coil terminals are M3.5. 2. When placing an order, specify the model number and rated supply voltage (12 VDC or 24 VDC). Accessories (Order Separately) Auxiliary Contact Block Number of poles Contact Configuration Model DPST-NO G73Z-20Z-R 2 poles SPST-NO/SPST-NC G73Z-11Z-R DPST-NC G73Z-02Z-R Note: Auxiliary contact block terminals are M3.5. 2
