FAFCS05K Optronics

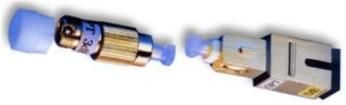

FibreFab Fibre Optic & Networking Products Attenuators Features Optronics single mode attenuators Plug-in type package. are used in communication systems to reduce optical power Accurate attenuation. launched onto the photo detector. Ultra low back reflection. These high performance devices Broad wavelength band. are designed to give accurate Available with SC, FC, LC and attenuation over a wide range of wavelengths. The plug type MU packages. configuration allows you to use Flat response over all directly on the ends of the fibre wavelengths. jumpers and to insert directly in Environmentally Stable. to the adapter. Quick Delivery Available in FC, SC, LC and MU connector styles with PC or APC Applications finish providing ultra low return loss. Optronics attenuators comes Telecommunication networks to you from a world class Fibre optic sensors manufacturing facility backed by Test and measurement 20 years of experience in manufacturing fibre optic passive CATV and active devices. Products LAN and WAN coming out of this facility have FTTx found worldwide applications in computer networking, telecommunications and cable TV. FibreFab Fibre Optic & Networking Products Specifications Connector type Description SC / FC / LC / MU The Optronics optical attenuators are manufactured using the best quality Available Range of attenuation 1 to 30 dB with 1dB increments components. (or custom attenuation within this range) For full information on the full range FibreFab Operating Wavelength 1310nm and 1550nm (Or single wavelength) products, please contact the address below for a data sheet. Digital Band 1260-1360nm and 1430-1580nm Operating Band pass (BellcoreSpec.) Dimensions FC 10mm (diameter) x 30mm (L) S + C + L Band 1480-1610nm SC 35mm (L) x 12.7mm (W) x 9.5mm (D) Special Bandpass 131025nm and 1470-1610nm Intermateability Optically and mechanically compatible with Single Window 1280-1340nm or 1510-1590nm all equivalent connectors. Compliant with IEC 874-14. Dual Window 1310 and 1550nm (25nm) Product Packaging Attenuation Tolerance Each attenuator is packaged individually. 0.5 dB Attenuators 5dB Temperature Cycling (IEC 874-1 sec. 4.5.22) 10% of attenuation Attenuators, 6 to 30 dB -40 to +75C, 40 cycles =0.2dB Change High Temperature: (IEC 874-1 sec. 4.5.18) 75C for 96 hours Reflectance =0.2dB Change SPC 50 dB UPC 55 dB Damp Heat: (IEC 874-1 sec. 4.5.19) APC 60 dB 60C at 95% RH, 96 hours =0.2dB Change International Standard Vibration (Mated Pair): Telcordia GR-910-CORE (IEC 874-1 sec. 4.5.1) 10-55 Hz, 1.5mm P to P =0.3dB Change Mating Durability: Ordering Information (IEC 874-1 sec. 4.5.32) 1000 mating cycles FA Clean every 25 SC S= Singlemode 05= 5dB < 0.2 dB Change SC/APC M= Multimode 10= 10dB FC 15= 15dB FC/APC Operating Temperature 20= 20dB LC 25= 25dB -40C to +85C MU Other versions available to special order FibreFab Limited Davy Avenue Tel: +44 (0) 870 127 3330 Knowlhill Fax: +44 (0) 870 127 3331 Milton Keynes Email: sales fibrefab.com MK5 8ND Internet: www.fibrefab.com FibreFab Ltd is registered in England no. 2734823. Copyright FibreFab 2005. All Rights Reserved.
