EOLD-1720-525 OSA Opto Light

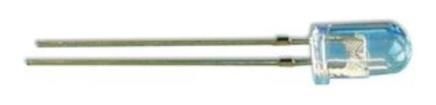

OSA Opto Light GmbH Koepenicker Str. 325b, Haus 201 D-12555 Berlin Fon: +49 (0)30 6576 2683 Fax: +49 (0)30 6576 2681 contact osa-opto.com Product Data Sheet Rev. 01 aus 2011 LED Lamp Infra Red EOLD-1720-525 Radiation Type Case Infra Red MQW 5mm plastic lens Description: High-power, high-speed infrared LED in standard 5 mm package , with lens for narrow beam focusing, housing without standoff leads Maximum Ratings T = 25C, unless otherwise specified amb Parameter Test Conditions Symbol Value Unit Forward Current I 100 mA F Peak forward current (t 50 s, t /T = ) I 200 mA p p FM Power dissipation P 150 mW D T Operating temp. range -20 to +80 C amb T Storage temp. range -55 to +100 C stg T Lead soldering temp. t< 5s, 3mm from case 260 C slg Optical and Electrical Characteristics T = 25C, unless otherwise specified amb Parameter Symbol Conditions Min typ max Unit V I = 20mA Forward voltage 0.7 V F F Forward voltage V I = 100mA 0.9 V F F Reverse voltage V I = 10A 5 V R R Radiant Power I = 20mA 1.0 mW e F Radiant Power I = 100mA 4.0 mW e F Peak wavelength I = 20mA 1720 nm p F Spectral bandwidth at I = 20mA 130 nm 0,5 F 50% I = 20mA Viewing angle 20 deg. F t , t I = 20mA Switching time 15 ns r f F We reserve the right to make changes to improve technical design and may do so without further notice. Parameters can vary in different applications. All operating parameters must be validated for each customer application by the customer.X-ON Electronics Largest Supplier of Electrical and Electronic Components Click to view similar products for osa opto light manufacturer: Other Similar products are found below : OLS 330 MY EOLD-355-525 EOLD-1550-525 OLS-330GC525-X-T OIS 150 880 OLS 330 MG 525 OCU 400-UC375 OLS- 153MSD/GC525-T OIS-330-740-X-T OIS-330-IT855-T OIS-330-IT940-T OLS 330 EG 525 OIS-150-IT940-T OLS 330 MB 460 OIS 170 880 OIS 330 770 OLS-336BA460-X-TU OLS 159 SR/G
