4050300873664 OSRAM

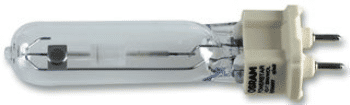

TS 44443 OSRAM/104 T001 GB POWERBALL englisch 6/28.11.2006 www.osram.com POWERBALL HCI Technical Information 104 T001 GB 12/06 CO OSRAM HID Subject to modification without notice. Errors and omissions excepted Printed on paper treated with chlorine-free bleach z POWERBALL HCI -TF, TC 12 HCI-TF HCI-TC HCI-TC HCI-TC 20 W 20 W 35 W 35 W 830 WDL PB 830 WDL PB 830 WDL PB 942 NDL PB Type UVS, PB UVS, PB UVS, PB UVS, PB ILCOS MT/UB-20/30/1B- MT/UB-20/30/1B- MT/UB-35/30/1B- MT/UB-35/42/1A- H/E-GU6.5-13/57 H/E-G8.5-15/81 H-G8.5-15/81 H-G8.5-15/81 Lamp wattage W 20 20 37 37 Lamp voltage V 90 100 90 90 Ignition voltage min./max. kVs 3.6/5 3.6/5 3.6/5 3.6/5 Lamp current A 0.22 0.22 0.5 0.5 Nominal luminous flux lm 1700 1700 3400 3200 Luminous efficacy lm/W 85 85 92 86 Light colour/Colour appearance 830 WDL 830 WDL 830 WDL 942 NDL Colour temperature K 3000 3000 3000 4200 Colour rendering index R > 80 82 82 90 a NIOSH Skin h > 8 > 21 > 21 > 21 2 ACGIH UV output mW/m 1000 lx < 2 < 0.4 < 0.4 < 0.4 Base GU6.5 G8.5 G8.5 G8.5 Diameter d mm 13 15 15 15 Length max. l mm 57 81 81 81 LCL a mm 31 52 52 52 Burning position universal universal universal universal Average lamp life h 12000 12000 12000 12000 Max. perm. outer bulb temp. C 400 450 450 Max. perm. base edge temp. C 280 300 300 PF corr. cap. at 50 Hz F ECG ECG 6 6 Lamp reference HCI-TF HCI-TC HCI-TC HCI-TC 20/830 WDL PB 20/830 WDL PB 35/830 WDL PB 35/942 NDL PB EAN 4008321907615400832105221640503008737634050300873725 Standard pack Qty 12 12 12 12 Figure No. 1 2 2 2 Circuit (see page 26) Fig. no. 2 1/2 1/2 1/2 Survival rate HCI-TF Luminous flux behaviour HCI-TF 100 100 90 90 80 80 70 70 60 60 50 50 0 2000 4000 6000 8000 10000 12000 0 2000 4000 6000 8000 10000 12000 Hours burned Hours burned Survival rate HCI-TC 20 W Luminous flux behaviour HCI-TC 20 W 100 100 90 90 80 80 70 70 60 60 50 50 0 2000 4000 6000 8000 10000 12000 0 2000 4000 6000 8000 10000 12000 Hours burned Hours burned Survival rate HCI-TC Luminous flux behaviour HCI-TC 100 100 90 90 80 80 70 70 60 60 50 50 0 2000 4000 6000 8000 10000 12000 0 2000 4000 6000 8000 10000 12000 Hours burned Hours burned 2 New Survival rate in % Survival rate in % Survival rate in % Luminous flux in % Luminous flux in % Luminous flux in %
