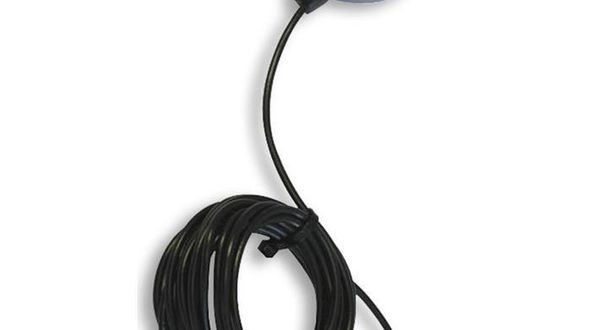

Wi-Sys Communications Inc. WS3914 Low Current GPS Antenna Applications: Automotive Navigation Fleet Management & Telematics Marine Navigation Asset Tracking Military Radio and Vehicle Law Enforcement The WS3914 GPS antenna uses the same advanced circuitry as our high performance WS3910 antenna, redesigned to operate on only 2 mA of current setting a new standard for the industry. Performance is not sacrificed the antenna still features a custom designed ceramic patch element along with a patented low noise amplifier and SAW filter, enabling the WS3914 to provide a consistent, clear signal while minimizing loss-of-lock. The WS3914 antenna is ideal for portable applications where low power operation is a necessity. Features: Extremely low current: 2 mA 2.7 VDC Very low noise figure: 1 dB Excellent out-of-band signal rejection High performance patented LNA Wide range of connector types available Wide voltage input range (2.5 3.3 VDC) Wi-Sys Communications Inc. Technical Specifications Environmental Specifications WS3914 GPS Antenna -40c to +80c operating (-45c to +80c storage) Humidity: 95% max (non condensing) Designed for low power use while maintaining GPS performance, the WS3914 antennas Mechanical advanced circuitry integrates a SAW filter and 45mm x 51mm x 12mm (2.05 x 2.32 x 0.53) 120g (4.2 oz) low-noise amplifier to ensure a reliable and Attachment methods: Magnetic (5 lb lift-off force) clear signal for the GPS receiver even in difficult or permanent (pre-threaded for 3x M2.5 screws) conditions. The antenna design and industry Shock: Vertical axis 50G Other axes 30G leading low current draw makes the WS3914 Vibration: 3 axis, sweep = 15 min antenna ideal for portable or telematics 10 200 Hz log sweep: 3G applications using MONITOR, STANDBY or Antenna Response SLEEP modes. Frequency: 1575.42 MHz Gain: 90 3 dBic The Wi-Sys Antenna Family 20 -2.0 dBic Polarization: Right Hand Circular WS3910: High gain, low noise GPS antenna Axial ratio: 90 4 dB 20 6 dB WS3916: Low cost GPS antenna Electrical WS3917: Low cost filtered GPS antenna Voltage: 2.5 3.3 VDC Current: 2.0 mA 2.7VDC (typical) WS3940: Active GPS + Cellular Combined Cable: 1.5 DS-QEHV Shikoku Cable Co. Ltd. Glass mount/covert antenna Cable loss: 1.3 dB/m typical WS3942: Active GPS + Cellular Combined Cable Length: 3 meter standard, other lengths optional Magnetic mount antenna Connector: SMA standard SMB, SMC, MCX, BNC, TNC optional WS3950/WS3960: High gain, low noise Embedded antenna LNA Specifications Frequency: 1572.5 1578 MHz WS3954/WS3964: low current Embedded Output Impedance: 50 Ohm GPS antenna VSWR: 1.5:1 max (at connector) WS3957/WS3967: low price filtered Gain: 3.3VDC: 18 dB (typical) Embedded GPS antenna Noise figure: 1 dB Out-of-band rejection: + 15 MHz: 10 dB/- 15 MHz: 30 dB WS3977: Through-hole Mount GPS Antenna + 20 MHz: 20 dB/- 20 MHz: 30 dB + 40 MHz: 40 dB/- 40 MHz: 40 dB Wi-Sys Communications Inc. 31B Richardson Side Road Ottawa, ON K2K 0A1 Canada Tel 613.254.7386 Fax 613.254.7388 sales wi-sys.com www.wi-sys.com
