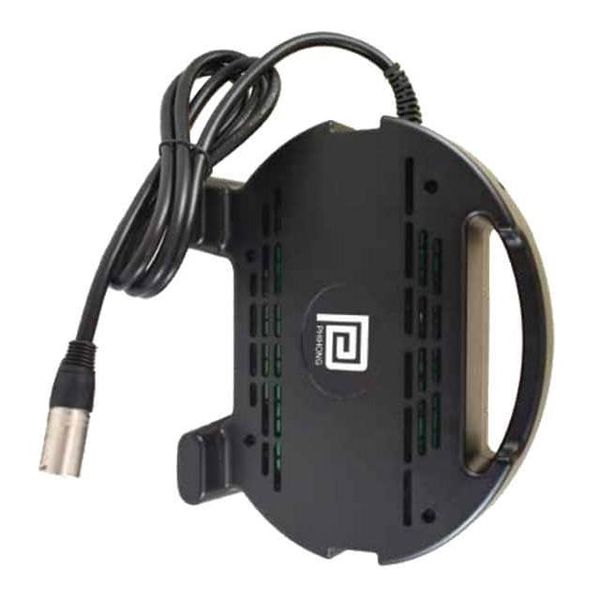

24V, 8A Lead Acid Battery Charger Features RESNA Compliant CEC Compliant LED Indicators Charge State OVP, OTP, SCP Dual-Mode Charger Charges GEL or AGM batteries Max 12hrs Charging Time Applications Mobility Scooters Power Wheelchairs INTEGRITY INNOVATION Electric Motorcycle CHALLENGEPHIHONG TECHNOLOGY CO., LTD. Model name DA200U-250A-R Input Rang 100 to 240VAC Input Current 2.5A(RMS)max for 115VAC 1.35A(RMS)max for 230VAC Frequency 47-63 Hz Input Power factor >.95 from 60%-100% load for 115VAC >.90 from 60%-100% load for 230VAC Leakage Current <0.1mA max at 254VAC Inrush Current <60A max at 230VAC <30A max at 115VAC(cold start at ambient 250C) Hold-up Time 16mS at input voltage of 230VAC/60Hz, output load 200Wmax Output Voltage Vmain 24V Current Charge 8A Ripple 100mV pk-pk 250C Output Voltage USB 5V Output Current Charge 0.5A Eciency 84% at >115VAC at 200W Over-Voltage Protecon 32V trip point. Output will remain o unl power is recycled Over-Temp. Protecon Non-latching Short-Circuit Protecon The output can be shorted without damage Reverse Polarity Protecon Shall produce no more than 100mA of current or any damage Baery Over-Charge Protecon Charger me-out. No greater than 12hrs, for bulk/absorpon charging Operating: -250C to 500C Temperature Non-Operating -250C to 700C Humidity: 20% to 90% non-condensed Complies with FCC Part 15 Class B Complies with EN55032 Class B Emissions Complies with EN61000-3-2:2014 Complies with EN61000-3-3:2013 EN61000-4-2:2008 EN61000-4-3:2006+A1:2007+A2:2010 Environmental EN61000-4-4:2012 EN61000-4-5:2014 Immunity EN61000-4-6:2013 EN61000-4-8:2009 EN61000-4-11:2004 Power units other than class 2, UL 1012 Battery Chargers, CAN/CSA C22.2 No.107.2-01 Compliance IEC60335-2-29:2002(Fourth Edion) +A1:2004 +A2:2009 for use in conjuncon with IEC60335-1:2010(Fih Edion) + A1:2013 Insulaon Resistance >7M Ohm minimum, 500VDC Hi-Pot Test Primary to Secondary:4242VDC for 1min, 10mA AC Input Connector(J1) IEC C14 inlet General DC Output Cable SJT 18AWG Black 1500mm50mm +24VDC(XLR connector):White, Pin1(connected to baery +) Output Connector(main) RTN(XLR connector):Black, Pin 2, 3(connected to baery -) Output Connector(USB) USB Type-A www.phihong.com Revision 01/29/2020
