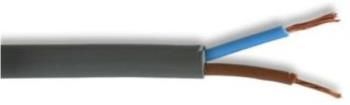

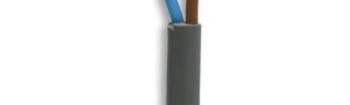

Har. code H03VVH2-F2 Two-Core Oval 300/300V Application: Power supply wire, suitable for indoor small electrical instrument, or general in portable tool Construction: Conductor: Material : Stranded plain annealed copper wire Insulation: Material : PVC Colours : Blue and brown Sheath: Material : PVC Colour : Any Physical Properties: Operating temperature : -15C to 70C Electrical Properties: Voltage test : Core to core : 1,500 V ac/1 min Voltage rating : 300/300 V Specification Table Nominal Insulation Sheath Conductor Minimum Current Nominal Inner Nominal Outer DC Stranding Description Bend rating Part Number Diameter Diameter Resistance 2 (mm (mm )) Radius (A) (mm) (mm) (( //km) Cable, Flex, 2192Y, White, 2192Y-0.5MMWHT50M 0.5 mm, 50 m Cable, Flex, 2192Y, White, 16/0.2 (0.5) 2 3.3 5.4 33 39 3 2192Y-0.5MMWHT100M 0.5 mm, 100 m Cable, Flex, 2192Y, Black, 2192Y-0.5MMBLK50M 0.5 mm, 50 m Dimensions: Millimetres www.element14.com www.farnell.com www.newark.com www.cpc.co.uk <Page 1> 20/12/11 V1.1Har. code H03VVH2-F2 Two-Core Oval 300/300V Specification Table Insulation Sheath Nominal Conductor Minimum Current Nominal Inner Nominal Outer DC Stranding Description Bend rating Part Number Diameter Diameter Resistance 2 (mm (mm )) Radius (A) (mm) (mm) (( //km) Cable, Flex, 2192Y, Black, 2192Y-0.5MMBLK100M 0.5 mm, 100 m 16/0.2 (0.5) 2 3.3 5.4 33 39 3 Cable, Flex, 2192Y, Grey, 2192Y-0.5MMGRY100M 0.5 mm, 100 m Cable, Flex, 2192Y, White, 2192Y-0.75MMWHT50M 0.75 mm, 50 m Cable, Flex, White, 0.75 2192Y-0.75MMWHT100M mm, 100 m Cable, Flex, 2192Y, Black, 24/0.2 (0.75) 2.2 3.5 5.8 35 26 6 2192Y-0.75MMBLK50M 0.75 mm, 50 m Cable, Flex, Black, 0.75 2192Y-0.75MMBLK100M mm, 100 m Cable, Flex, 2192Y, Grey, 2192Y-0.75MMGRY100M 0.75 mm, 100 m Dimensions: Millimetres Important Notice : This data sheet and its contents (theInformatio) belong to the members of the Premier Farnell group of companies (theGrou) or are licensed to it. No licence is granted for the use of it other than for information purposes in connection with the products to which it relates. No licence of any intellectual property rights is granted. The Information is subject to change without notice and replaces all data sheets previously supplied. The Information supplied is believed to be accurate but the Group assumes no responsibility for its accuracy or completeness, any error in or omission from it or for any use made of it. Users of this data sheet should check for themselves the Information and the suitability of the products for their purpose and not make any assumptions based on information included or omitted. Liability for loss or damage resulting from any reliance on the Information or use of it (including liability resulting from negligence or where the Group was aware of the possibility of such loss or damage arising) is excluded. This will not operate to limit or restrict the Group s liability for death or personal injury resulting from its negligence. Pro-POWER is the registered trademark of the Group. Premier Farnell plc 2011. www.element14.com www.farnell.com www.newark.com www.cpc.co.uk <Page 2> 20/12/11 V1.1
