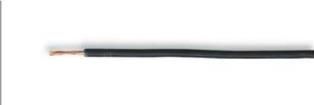

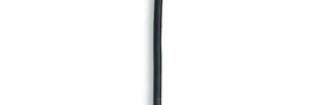

Automotive Wire Tinned Stranded to BS4808 Features: Plain annealed copper conductors PVC insulated to BS6862 Part 1. Resistant to petrol, lubrication oils, fuel oils and dilute acids. These cables are suitable for automotive, marine and agricultural applications. Specification Table: Part Number 6X236 BLK 6X236 RED 6X314 BLK 6X235 BLK 6X235 RED 30734 2 2 2 Specification 14/0.3 (1mm ) 21/0.3 (1.5mm ) 28/0.3 (2mm ) 9/0.3 Twin Flat Conductor Plain annealed copper wire Number and Size 14 0.3 21 0.3 28 0.3 9 0.3 of Wires Test Voltage Test Voltage Test Voltage Nominal - 1.5KV for 1.5KV for 1.5KV for - - Dimensions 2 minutes 2 minutes 2 minutes 3.8 6.1 Current Rating (A) 8.75 13 17.5 5.75 Insulation PVC Nominal Outside 2.7 3.1 3.4 2.5 Diameter Insulation 0.6 Thickness Temperature C +70C 20C 20C 20C 20C Resistance 18.84 (/kM) 12.57 (/kM) 9.42 (/KM) 29.35 (/kM) Outer Sheath Red and Black Colour Black Red Black Red Conductor Insulation Length (m) 500 100 Part Number Table Description Part Number Wire, Auto, Black, 1mm, 500m 6X236 BLK Wire, Auto, Red, 1mm, 500m 6X236 RED Wire, Auto, Black, 1.5mm, 500m 6X314 BLK Wire, Auto, Black, 2mm, 500m 6X235 BLK Wire, Auto, Red, 2mm, 500m 6X235 RED Cable, Automotive, Twin, Flat, 100m 30734 Important Notice : This data sheet and its contents (the Information) belong to the members of the Premier Farnell group of companies (the Group) or are licensed to it. No licence is granted for the use of it other than for information purposes in connection with the products to which it relates. No licence of any intellectual property rights is granted. The Information is subject to change without notice and replaces all data sheets previously supplied. The Information supplied is believed to be accurate but the Group assumes no responsibility for its accuracy or completeness, any error in or omission from it or for any use made of it. Users of this data sheet should check for themselves the Information and the suitability of the products for their purpose and not make any assumptions based on information included or omitted. Liability for loss or damage resulting from any reliance on the Information or use of it (including liability resulting from negligence or where the Group was aware of the possibility of such loss or damage arising) is excluded. This will not operate to limit or restrict the Groups liability for death or personal injury resulting from its negligence. pro - POWER is the registered trademark of the Group. Premier Farnell plc 2012. www.element14.com www.farnell.com www.newark.com www.cpc.co.uk Page <1> 19/09/13 V1.0X-ON Electronics Authorized Distributor Click to view similar products for Pro Power manufacturer. Other Similar products are found below : 0301CV100W 04JSBLACK 06JSBLACK 08450046010 08450056010 08450066010 08450166010 08450236010 08450256010 08JSBLACK 10026B 10026BK 10026G 10026R 10026TB 10026TBK 10026TG 10026TR 10026TW 10026W 10030B 10030BK 10030G 10030O 10030R
