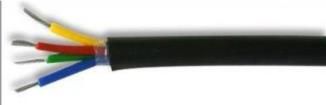

16-2-xxA and 16-2-xxC Series Defence Standard 61-12 Part 5 Applications These cables are suitable as interconnections between and within instruments and electrical equipment for such applications as data transmission and process control Technical Data Maximum Conductor Temperature : +70C Minimum Ambient Temperature : -55C after installation and only when cable is in a fixed position Current Rating : Maximum of 2.5 A per core Maximum Working Voltage (Uo / U) : (Uo / U) 440 V rms at frequencies up to 1,600 Hz Test Voltage : 2 KV rms between conductors and between conductors and screen, where applicable Maximum Conductor Resistance : 40.1 / Km at 20C Minimum Insulation Resistance : 11 M / Km at 20C 2 Conductor Area : 0.5 mm per core Spread of Flame : BS EN 50265-2-1 : Part 1, HD 405-1, IEC 332-1 DEF STAN 61-12 Part 5 Type A Unscreened Construction 2 16/0.2 mm(0.5 mm ) tinned annealed copper conductors Type 16-2-C PVC sheathed overall to BS 6746 having the colours listed in the Identification table PVC insulated, polyester binder tape DEF STAN 61-12 Part 5 Type C Unscreened Construction 2 16 / 0.2 mm(0.5 mm ) tinned annealed copper conductors Type 16-2-C PVC sheathed overall to BS 6746 having the colours listed in the Identification table PVC insulated, polyester binder tape, tinned copper braid screened overall www.element14.com www.farnell.com www.newark.com www.cpc.co.uk Page <1> 14/04/12 V1.116-2-xxA and 16-2-xxC Series Defence Standard 61-12 Part 5 DEF STAN 61-12 Part 5 - Screened Specifications Conductors : 16 / 0.2 mm Voltage Rating : 440 V (RMS) 2 Conductor Area : 0.5 mm per core Sheath Colour : Black Maximum Current Per Core : 2.5 A Maximum Operating Temperature : 70C Physical Data Cable Reference Number of Cores Colour Nominal Diameter Reel Length (m) Type Part Number 16-2-4A 4 Yellow 6.7 100 Unscreened 850010 100M Dimensions : Millimetres (Unless Specified) Note : For bi-coloured cores the base colour is shown in capitals. Cables with more than 36 cores have a Red and a Blue core laid adjacent to one another in each layer, the remainder of the cores being White Important Notice : This data sheet and its contents (theInformatio) belong to the members of the Premier Farnell group of companies (theGrou) or are licensed to it. No licence is granted for the use of it other than for information purposes in connection with the products to which it relates. No licence of any intellectual property rights is granted. The Information is subject to change without notice and replaces all data sheets previously supplied. The Information supplied is believed to be accurate but the Group assumes no responsibility for its accuracy or completeness, any error in or omission from it or for any use made of it. Users of this data sheet should check for themselves the Information and the suitability of the products for their purpose and not make any assumptions based on information included or omitted. Liability for loss or damage resulting from any reliance on the Information or use of it (including liability resulting from negligence or where the Group was aware of the possibility of such loss or damage arising) is excluded. This will not operate to limit or restrict the Group s liability for death or personal injury resulting from its negligence. Pro-POWER is the registered trademark of the Group. Premier Farnell plc 2012. www.element14.com www.farnell.com www.newark.com www.cpc.co.uk Page <2> 14/04/12 V1.1
