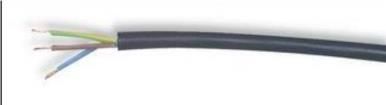

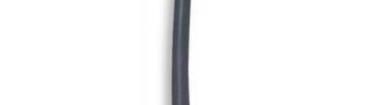

Mains Flex Oval/Round 2 - 3 Core 2 Core 3 Core Features: Flexible mains cable for internal use in the direct connection of equipment to mains power supplies. PVC insulated and sheathed flexible mains cords Standard core colours : Brown and Blue (2 core) Brown, Blue and Green/Yellow (3 Core) Outer sheath colour : Black, Grey or White (2 core) 3182Y = Black, White, Grey, Orange 3183Y = Black, White, Grey, Orange Manufactured to BS6500 Annealed copper conductor Mains Cord and Cable PVC: 3192Y Specification 2192Y 300/300V 3182Y 300/500V 300/500V 0.5 0.6 0.7 Radial Thickness insulation sheath 0.6 0.8 CSA (mm) 0.5 0.75 1.0 0.5 0.75 1.0 1.25 1.5 Construction 16/0.2 24/0.2 32/0.2 16/0.2 24/0.2 32/0.2 40/0.2 30/0.25 Current Rating (A) 3 6 10 3 6 10 13 15 Nominal Diameter 3.3 5.4 3.6 5.8 4.6 7.2 6.3 6.8 7.2 7.8 8.2 Weight (Kg/Km) 27 34 51 40 63 73 84 95 Dimensions : Millimetres (Unless Specified) www.element14.com www.farnell.com www.newark.com www.cpc.co.uk Page <1> 06/03/14 V1.0Mains Flex Oval/Round 2 - 3 Core Mains Cord and Cable PVC: 3182Y Specification 2183Y 300/300V 3183Y 300/500V 300/500V 0.8 0.5 0.6 0.7 0.8 - Radial Thickness Insulation Sheath 1.0 0.6 0.8 0.9 1.1 - CSA (mm) 2.50 0.50 0.75 1.00 1.25 1.50 2.50 4.00 Construction 50/0.25 16/0.2 24/0.2 32/0.2 40/0.2 30/0.25 50/0.25 56/0.3 Current Rating (A) 20 3 6 10 13 15 20 25 Nominal Diameter 10.0 5.6 6.1 6.8 7.2 7.8 8.2 10.0 13.0 Weight (Kg/Km) 154 44 55 74 86 104 120 180 - Specifications: Type Description Two-Core Oval, PVC insulated and sheathed flexible mains cables. Harmonized Code Number 2192Y 300/300V HO3VVH2-F2. Two-Core Oval, PVC insulated and sheathed flexible mains cables. Harmonized Code Number 3192Y 300/500V HO5VVH2-F. Two-Core Round. PVC insulated and sheathed flexible mains cables. Harmonized Code Number 3182Y 300/500V H05VV-F2. Three-Core Oval. PVC insulated and sheathed flexible mains cables. Harmonized Code Number 2183Y 300/300V H03VV-F3. Three-Core Round. PVC insulated and sheathed flexible mains cables. Harmonized Code Number 3183Y 300/500V H05VV-F3. Part Number Table Description Part Number Cable, Mains, 3Core, 1mm, 100M CBBR2028 Cable, 3183Y, Orange 2.5mm CBBR15159 Cable, Mains, 3Core, 2.5mm, 50M CBBR1514 Cable, Mains, 3Core, 4mm, 50M CBBR1515-50M Cable, Mains, 2Core, 0.5mm, 100M 70053918 Cable, Mains, 2Core, 1mm, 100M CBBR1510 Cable, Mains, 2Core, 1.25mm, 100M CBBR1511 Cable, 3182Y, Grey, 1.5mm CBBR15155 www.element14.com www.farnell.com www.newark.com www.cpc.co.uk Page <2> 06/03/14 V1.0
