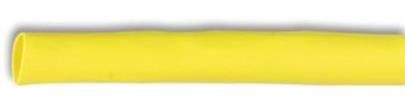

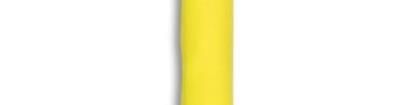

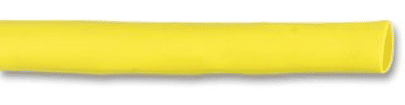

CGFC Series Heat Shrink Tubing Features: It is a tough, flexible, general purpose polyolefin tubing with good resistance to common fluids and solvents and a high dielectric strength General purpose, polyolefin heat-shrinkable tubing V ery good chemical and solvent resistance, wide range of colours black, red, yellow, green, blue, white including green/yellow stripes, flexible, excellent physical and electrical performance 3:1 shrink ratio its unique blend of chemical, electrical and physical properties make it suitable for a wide range of applications including electrical insulation, strain relief, cable bundling, colour coding and identification of wires, cables, pipes and electrical and electronic components and mechanical protection Specifications: Operating Temperature Range : -40C to +135C Min. Shrink Temperature : +80C Min. Full Recovery Temperature : +120C Performance Test Test Method Test Requirement Heat Ageing ISO188 (168 Hours at 150C) Min. Ultimate Elongation : 150% Corrosion Resistance ASTM D2671 (16 Hours at 175C) No Corrosion of Mirrors 25.4 20MV/m Dielectric Strength IEC 243 >25.4 10MV/m Min. Tensile Strength : 5MPa 24 Hours at 23C, ISO 37 Min. Ultimate Elongation : 175% Fluid Resistance Petrol (100 Octane) Test Fluids Lubricating Oil (0.148) Hydraulic Fluid (H515) Part Number Table Inside Diameter Wall Thickness Min. Expanded Max. Recovered Nominal Recov- Length (m) Colour Part Number as Supplied After Heating ered After Heating (D) (d) (W) 3 1 0.55 10 Black CGFC-3/1-0 6 2 0.65 7 Black CGFC-6/2-0 9 3 0.75 5 Black CGFC-9/3-0 12 4 0.75 4 Black CGFC-12/4-0 18 6 0.85 3 Black CGFC-18/6-0 www.element14.com www.farnell.com www.newark.com www.cpc.co.uk Page <1> 08/10/14 V1.1CGFC Series Heat Shrink Tubing Inside Diameter Wall Thickness Min. Expanded Max. Recovered Nominal Recov- Length (m) Colour Part Number as Supplied After Heating ered After Heating (D) (d) (W) 24 8 1 3 Black CGFC-24/8-0 3 1 0.55 10 Red CGFC-3/1-2 6 2 0.65 7 Red CGFC-6/2-2 12 4 0.75 4 Red CGFC-12/4-2 18 6 0.85 3 Red CGFC-18/6-2 24 8 1 3 Red CGFC-24/8-2 3 1 0.55 10 Yellow CGFC-3/1-4 6 2 0.65 7 Yellow CGFC-6/2-4 9 3 0.75 5 Yellow CGFC-9/3-4 12 4 0.75 4 Yellow CGFC-12/4-4 18 6 0.85 3 Yellow CGFC-18/6-4 24 8 1 3 Yellow CGFC-24/8-4 3 1 0.55 10 Green CGFC-3/1-5 6 2 0.65 7 Green CGFC-6/2-5 12 4 0.75 4 Green CGFC-12/4-5 18 6 0.85 3 Green CGFC-18/6-5 3 1 0.55 10 Blue CGFC-3/1-6 6 2 0.65 7 Blue CGFC-6/2-6 9 3 0.75 5 Blue CGFC-9/3-6 12 4 0.75 4 Blue CGFC-12/4-6 18 6 0.85 3 Blue CGFC-18/6-6 24 8 1 3 Blue CGFC-24/8-6 3 1 0.55 10 White CGFC-3/1-9 6 2 0.65 7 White CGFC-6/2-9 9 3 0.75 5 White CGFC-9/3-9 12 4 0.75 4 White CGFC-12/4-9 18 6 0.85 3 White CGFC-18/6-9 24 8 1 3 White CGFC-24/8-9 3 1 0.55 10 Green/Yellow CGFC-3/1-45 9 3 0.75 5 Green/Yellow CGFC-9/3-45 12 4 0.75 4 Green/Yellow CGFC-12/4-45 18 6 0.85 3 Green/Yellow CGFC-18/6-45 24 8 1 3 Green/Yellow CGFC-24/8-45 Important Notice : This data sheet and its contents (the Information) belong to the members of the Premier Farnell group of companies (the Group) or are licensed to it. No licence is granted for the use of it other than for information purpos es in connection with the products to which it relates. No licence of any intellectual property rights is granted. The Information is subject to change without notice and replac es all data sheets previously supplied. The Information supplied is believed to be accurate but the Group assumes no responsibility for its accuracy or completeness, any error in or omission from it or for any use made of it. Users of this data sheet should check for themselves the Information and the suitability of the products for their purpose and not make any assumptions based on information included or omitted. Liability for loss or damage resulting from any reliance on the Information or use of it (including liability resulting from negligence or where the Group was aware of the possibility of such loss or damage arising) is excluded. This will not operate to limit or restrict the Groups liability for death or personal injury resulting from its negligence. pro - POWER is the registered trademark of the Group. Premier Farnell plc 2012. www.element14.com www.farnell.com www.newark.com www.cpc.co.uk Page <2> 08/10/14 V1.1
