GW-151650 Pro Power

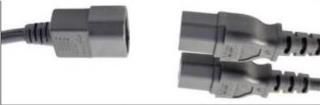

Power Cord Specifications: Cable Length - Imperial : 3.3 Ftt Cable Length - Metric : 1m Connector Type A : IEC 60320 C14 Connector Type B : IEC 60320 C13 2 Jacket Colour : Black Cord Type : SJT Shielding Material : PVC Insulation(Single or Double) : Single Insulation Material : PVC Conductor Size : 18AWG Conductor Construction : 41/0.16 (pcs/mm) Cord Jacket Diameter : 8mm 0.2mm Voltage Rating : 250V Current Rating : 10A Temperature Rating : 150C Dimensions : Millimetres Notes: Cable: The cord Shall comply with UL62 & C22.2 No.49 Plug: The molded plug shall comply with C22.2 No. 21-95 & IEC 60320-1 Standard sheet C14. UL817 Connector: The molded connector shall comply with UL817 & C22,2 No. 21-95 Standard (C13 Connector) The product shall be tested 100% for all safety electrical items. Part Number Table Description Part Number C14, SJT 18AWG 3C, 2 - C13, 1m GW-151650 Important Notice : This data sheet and its contents (the Information) belong to the members of the Premier Farnell group of companies (the Group) or are licensed to it. No licence is granted for the use of it other than for information purposes in connection with the products to which it relates. No licence of any intellectual property rights is granted. The Information is subject to change without notice and replaces all data sheets previously supplied. The Information supplied is believed to be accurate but the Group assumes no responsibility for its accuracy or completeness, any error in or omission from it or for any use made of it. Users of this data sheet should check for themselves the Information and the suitability of the products for their purpose and not make any assumptions based on information included or omitted. Liability for loss or damage resulting from any reliance on the Information or use of it (including liability resulting from negligence or where the Group was aware of the possibility of such loss or damage arising) is excluded. This will not operate to limit or restrict the Groups liability for death or personal injury resulting from its negligence. pro - POWER is the registered trademark of the Group. Premier Farnell plc 2012. www.element14.com www.farnell.com www.newark.com www.cpc.co.uk Page <1> 10/06/16 V1.0X-ON Electronics Authorized Distributor Click to view similar products for Pro Power manufacturer. Other Similar products are found below : 0301CV100W 04JSBLACK 06JSBLACK 08450046010 08450056010 08450066010 08450166010 08450236010 08450256010 08JSBLACK 10026B 10026BK 10026G 10026R 10026TB 10026TBK 10026TG 10026TR 10026TW 10026W 10030B 10030BK 10030G 10030O 10030R
